LUNA Design column + LUNA5000 Front Plate for BTicino 345000 Touchscreen

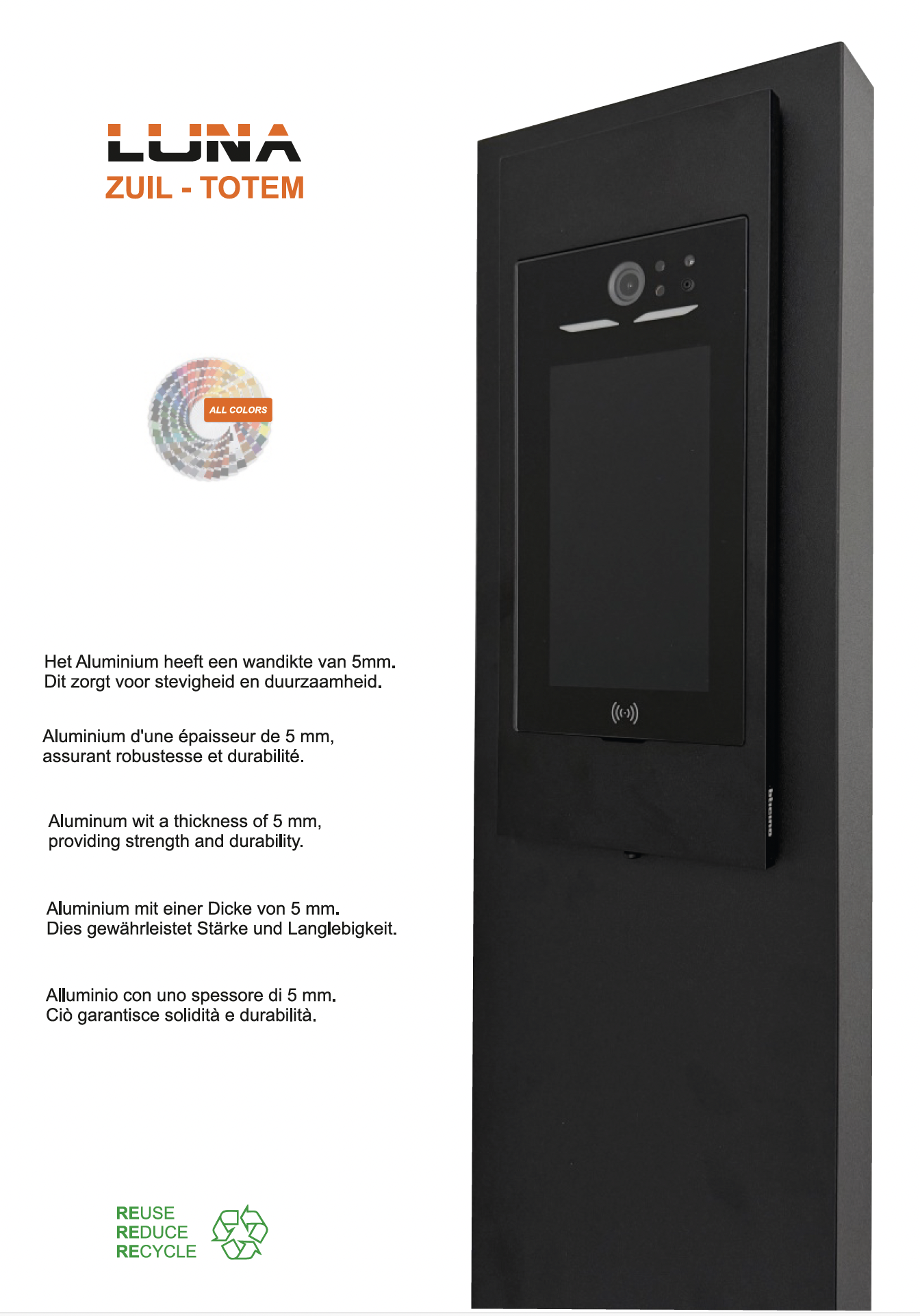

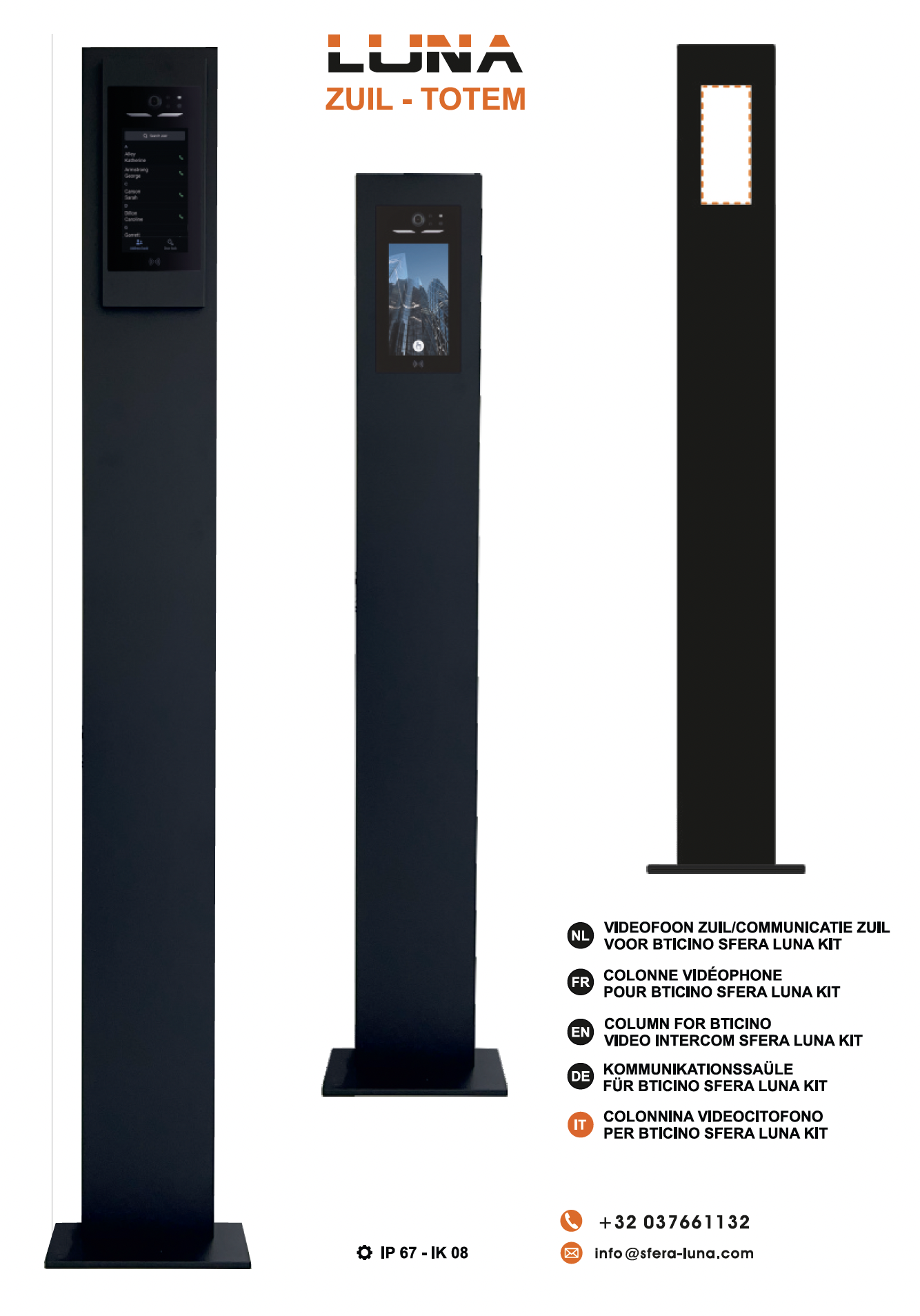

LUNA Design Videophone Column – Sleek, Robust and High-End Finished

The LUNA Design videophone column offers an elegant and solid solution for integrating BTicino 345000. Thanks to the completely flush-mounted installation, it creates a minimalist and streamlined look without protruding edges. The design combines high-end finishing with durability and safety. The column is sleek, robust and vandal-resistant (IK08), making it ideal for residential and commercial projects.

Features and Finish

• Streamlined design without protruding edges
• Anti-vandal construction with IK08 impact resistance
• Available in all RAL colours
• Standard colour: black RAL 9005 TXT
• Equipped with LUNA5000 front plate

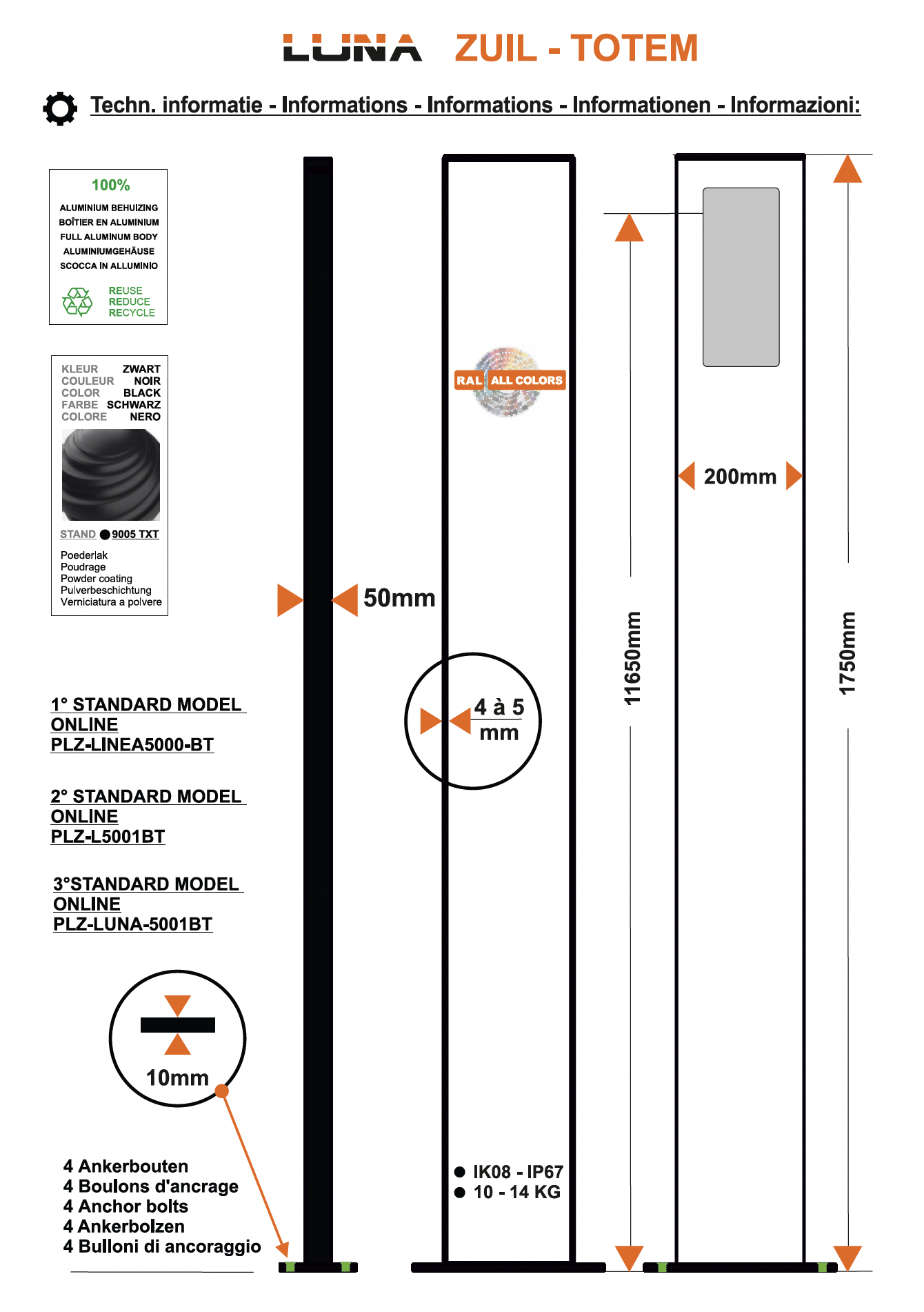

Dimensions

Column
Height: 1750 mm × Width: 200 mm × Depth: 50 mm

Mounting base
Width: 300 mm × Depth: 150 mm × Thickness: 10 mm

We Supply

• LUNA column with LUNA5000 front plate in the desired RAL colour
• Cover plate for invisible fixing of mounting bolts

Required BTicino Components

• 345000 – Touchscreen module
• 346050 – Power supply unit(s)
• Indoor unit(s) of your choice (compatible with BTicino)

Available Via

• Wholesalers
• Installers and electricians (BT Certified Experts)
• BTicino Stores

Technical Support – United Kingdom

Technical Department
Tel: 0370 608 9020
E-mail: [email protected]

Customer Services
Tel: 0345 605 4333
E-mail: [email protected]

SFERA – LUNA Project Support (if you do not receive follow-up)

If you do not receive a response or sufficient support via the official BTicino channels, you can contact the additional SFERA – LUNA Project Support.

SFERA – LUNA Project Support
Tel: +32 (0)3 766 11 32
E-mail: [email protected]
