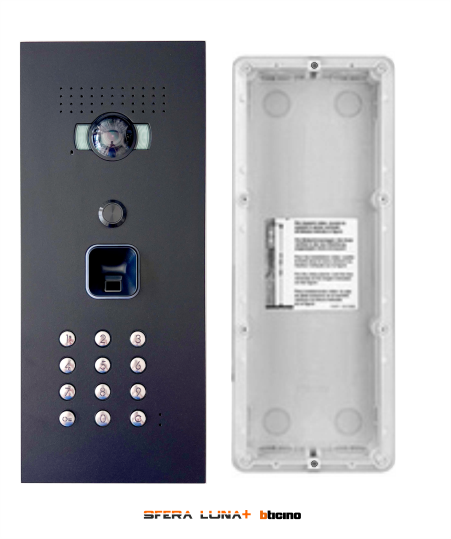

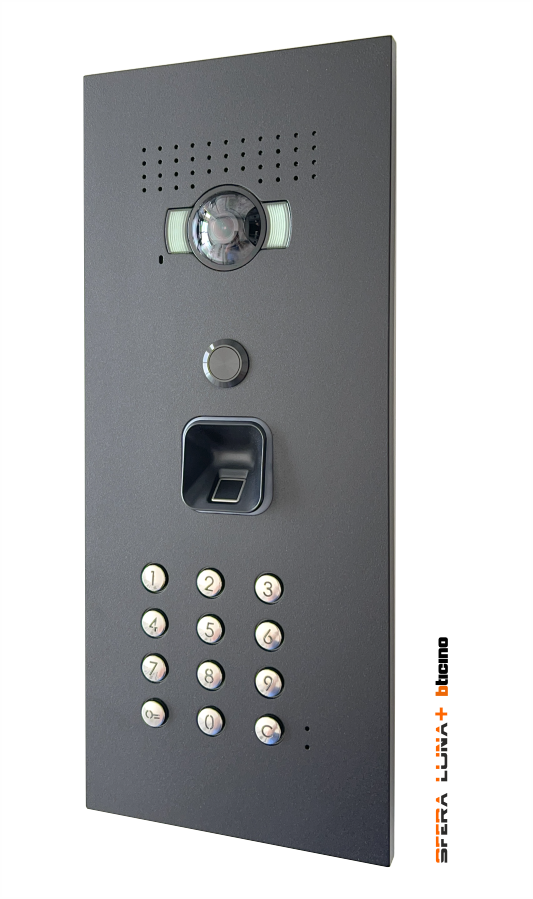

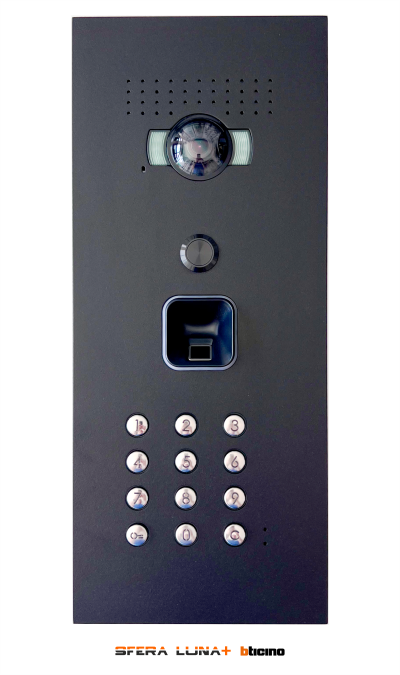

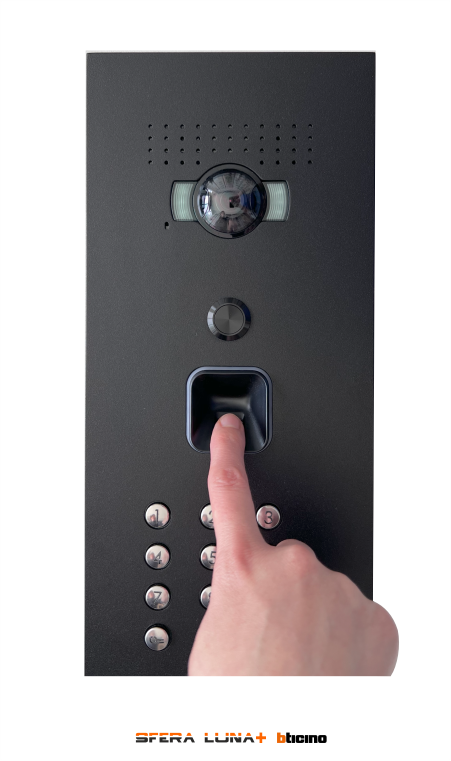

SFERA LUNA+ NEW Fingerprint reader Ekey + Keypad Video entry panel High-End Bticino (350030)
Product Code : PL-0005-0-EKEY-S-CK-BT
Video entry panel SFERA LUNA for Bticino outdoor units integrated fingerprint reader Ekey & keypad AVT353000.
Standard installation on Bticino AVT 350030 flush-mounted box.
These front panels are available in all ral colours to match with the ral colour of your residence or project.
- Made in 10mm aluminium, High End, solid finish.
- Central mounting system front panel. (easy blind mounting)
- Vandalism resistant.
- Installation possibilities: on walls, gates, columns, mailboxes, etc ...
- Easy installation in narrow surroundings.
- Model flush mounting on standard box Bticino 350030
- Unique recessed system for recessed gates, poles, etc. .....
- Also available with surface-mounted module.
Sfera Luna, partner of the Legrand Group (copyright model)
All Ral colours available

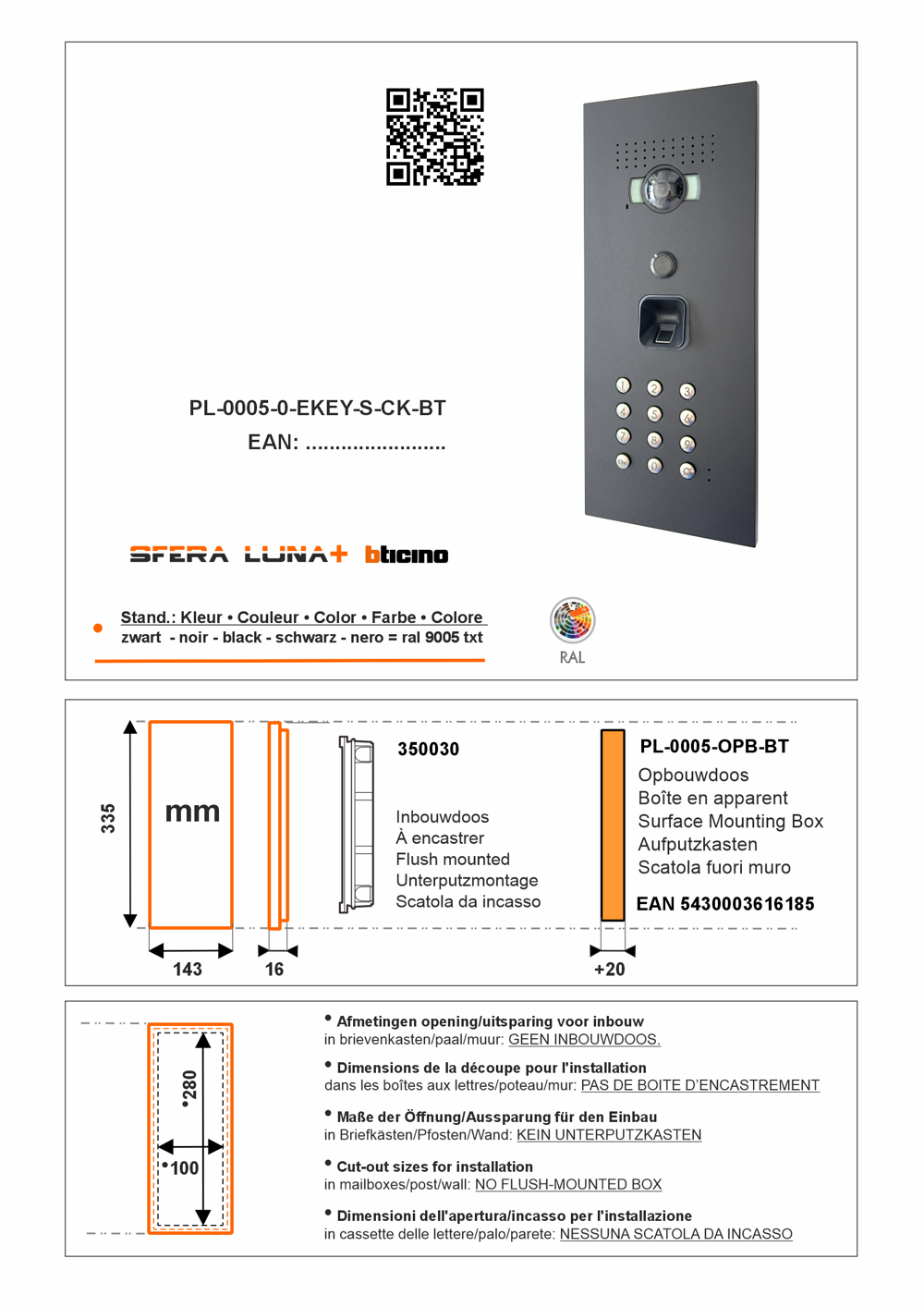

Dimensions: width 143mm x height 335mm
- 350030 AVT - flush mouting box 3 modules Bticino
- Front panel entrance in ral colour
- Modular panel frame + screws for installation on flush-mounting box 350030
- 351305pkm - plexiglas for module 351300
- 1 pushbutton black stainless steel, stainless steel or led
- Mounting prepartion for installation module Sfera fingerprint reader Ekey EK 14702
- 353005pkm - plexi front panel keypad
- 354000 videoparlofonie connection cable for functional modules
- 350030 AVT - flush-mounting box 3 modules
- 351300 AVT - Audio/video module with wide-angle lens
- 346993 interface sfera
- EK 14702 (zwart) of EK714701 (wit) Sfera fingerprint reader Ekey S + appmodule IP EK270018
- 353000 - keypad LED illuminated
- 346050 AVT - Power supply
- Compatible with all Bticino indoor units: Classe 100X16E or Class 300 X13E7 wifi-3/4G or MyHOME_UP 7" Hometouch 3488 (W)
- Preferably use REF 336904 twisted cable for the connection
These Bticino components are available :
via the wholesaler
via your installer/electrician https://www.bticino.be/nl/professionals/bt-certified-expert
via stores https://www.bticino.be/nl/stores
Aluminium THE GREEN METAL:
Aluminum can be recycled almost infinitely without loosing its unique properties. In remelting it is not only reclaimed metal, but by definition, 95% of energy is saved. The ore is very easy to exploit: it is just excavated to the surface. After just fifteen years nature has recovered.
Our exclusive products are produced in certified high quality materials. A combination of state of the art machinery and handcrafted finishes.
Designed & (hand) made in Belgium
Sfera Luna (partner of the Legrand Group), copyright model.
