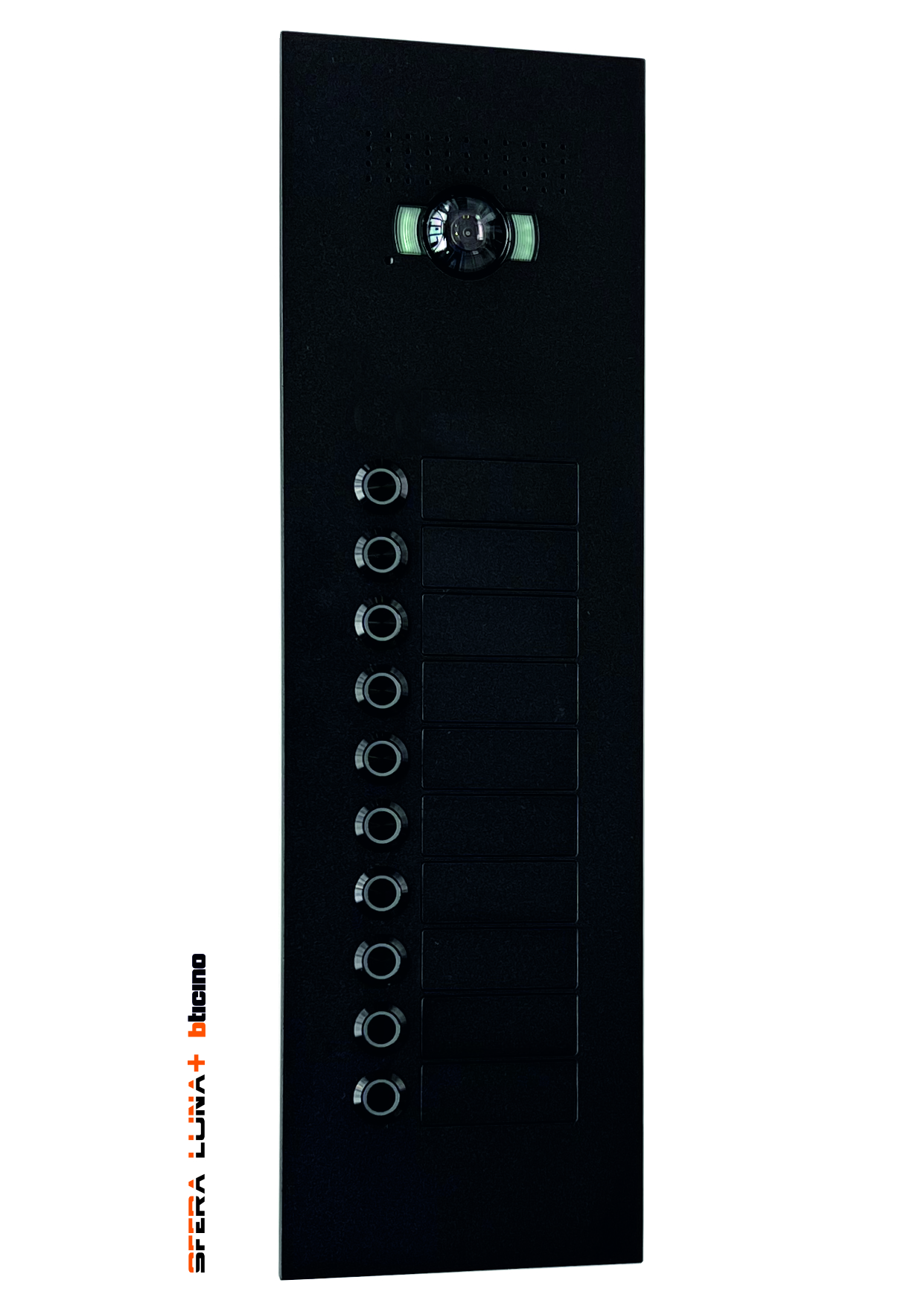

SFERA LUNA Video Intercom Front Panel
SFERA LUNA combines high-quality design with durable materials and seamless integration of BTicino video intercom systems. The front panels are crafted from solid aluminium and are designed for modern homes, residential buildings and architectural projects where aesthetics, quality and reliability are paramount.
Designer front panel with 10 interchangeable nameplates
. Fully compatible with the BTicino 2-wire audio/video module 351500 with wide-angle lens 152°
SFERA LUNA is a timeless and elegant front panel that elevates the entrance to your home, practice or residential project.
Design
- Manufactured from solid aluminium
- Monolithic high-end finish
- Sleek and timeless design
- Concealed mounting system
▼ Finishes and colours
- Supplied as standard in RAL 9005 black (fine texture)
- Available in all RAL colours
- Perfectly matched to your architecture
- Professional powder-coated finish ‘Seaside’
- Ideal for coastal areas and maritime environments
▼ Call buttons & nameplates

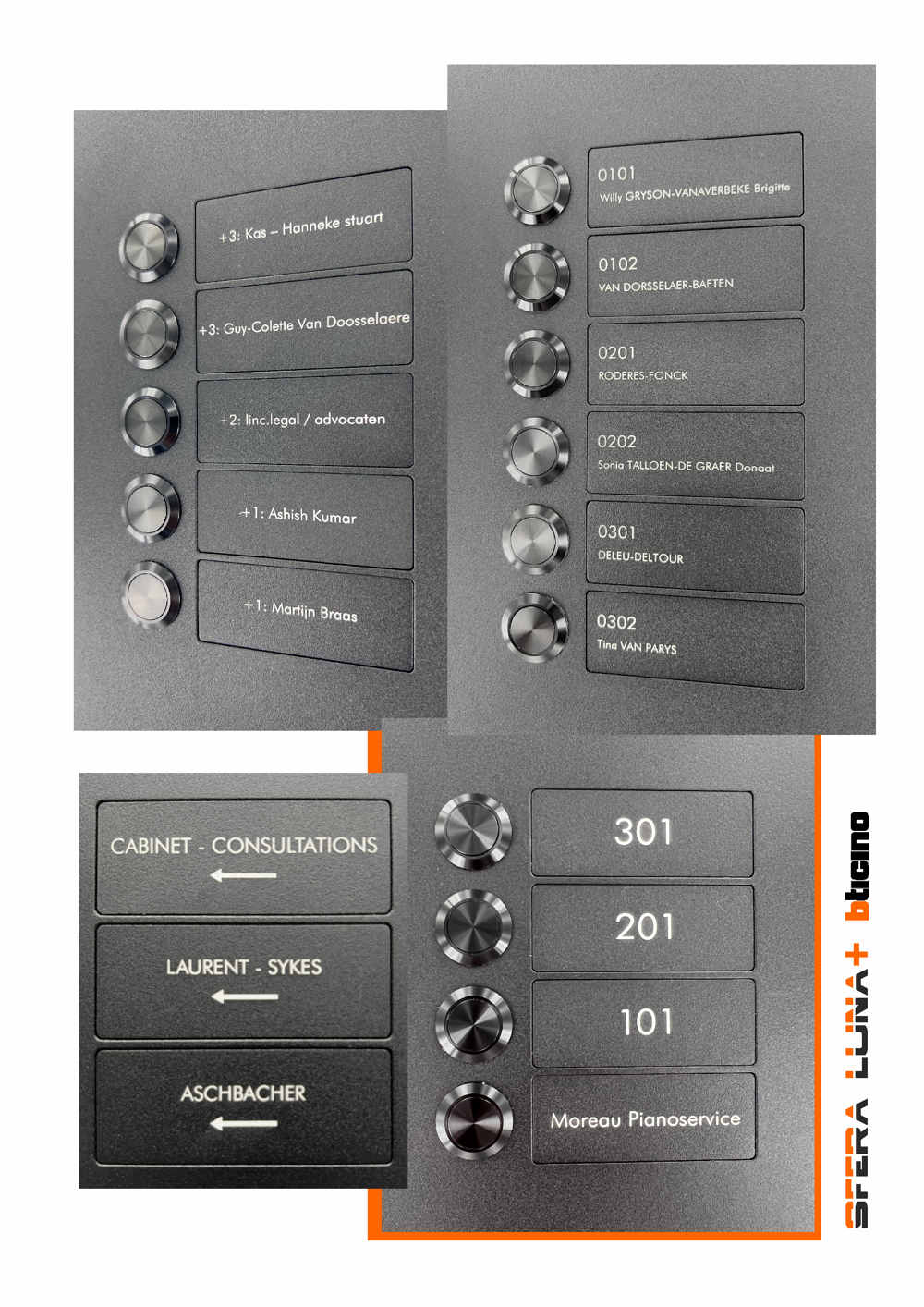

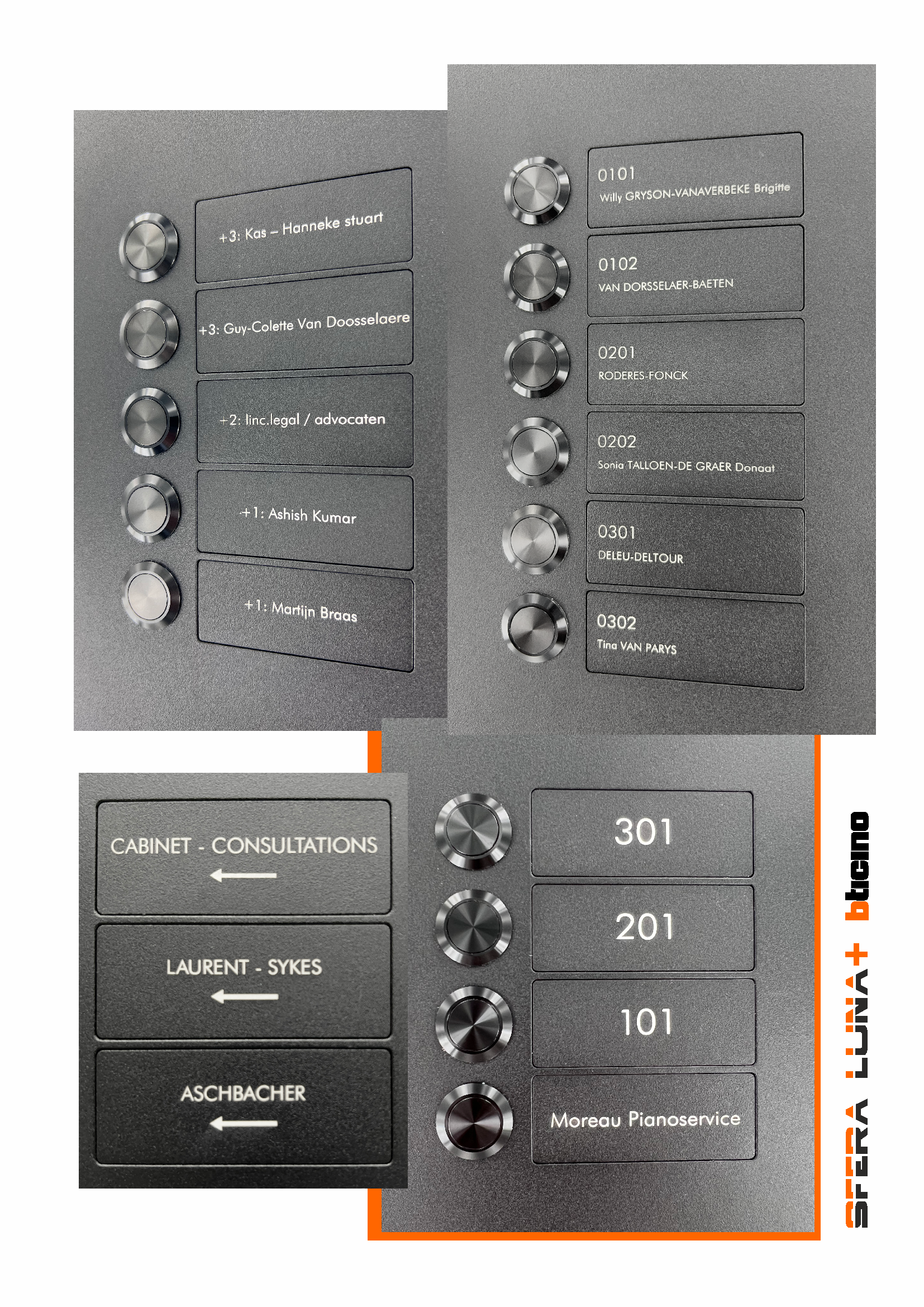

The SFERA LUNA front panel is fitted with interchangeable nameplates and high-quality call buttons, designed for a sleek appearance and easy customisation. This solution is ideal for homes, residential buildings and professional applications where flexibility and durability are key.
- 10 interchangeable nameplates / name signs
- Unique concealed mounting system for a sleek appearance
- Nameplates are easy to swap and personalise
- Doorbell buttons available in black or stainless steel
- Optional with discreet LED lighting, connected via the bus
- Weather- and vandal-resistant – IP65 / IK08
▼ Integration & installation
- Central mounting system with concealed fixings
- Seamless integration into a wall, gate, post or letterbox
- Ideal for installations in confined or narrow spaces

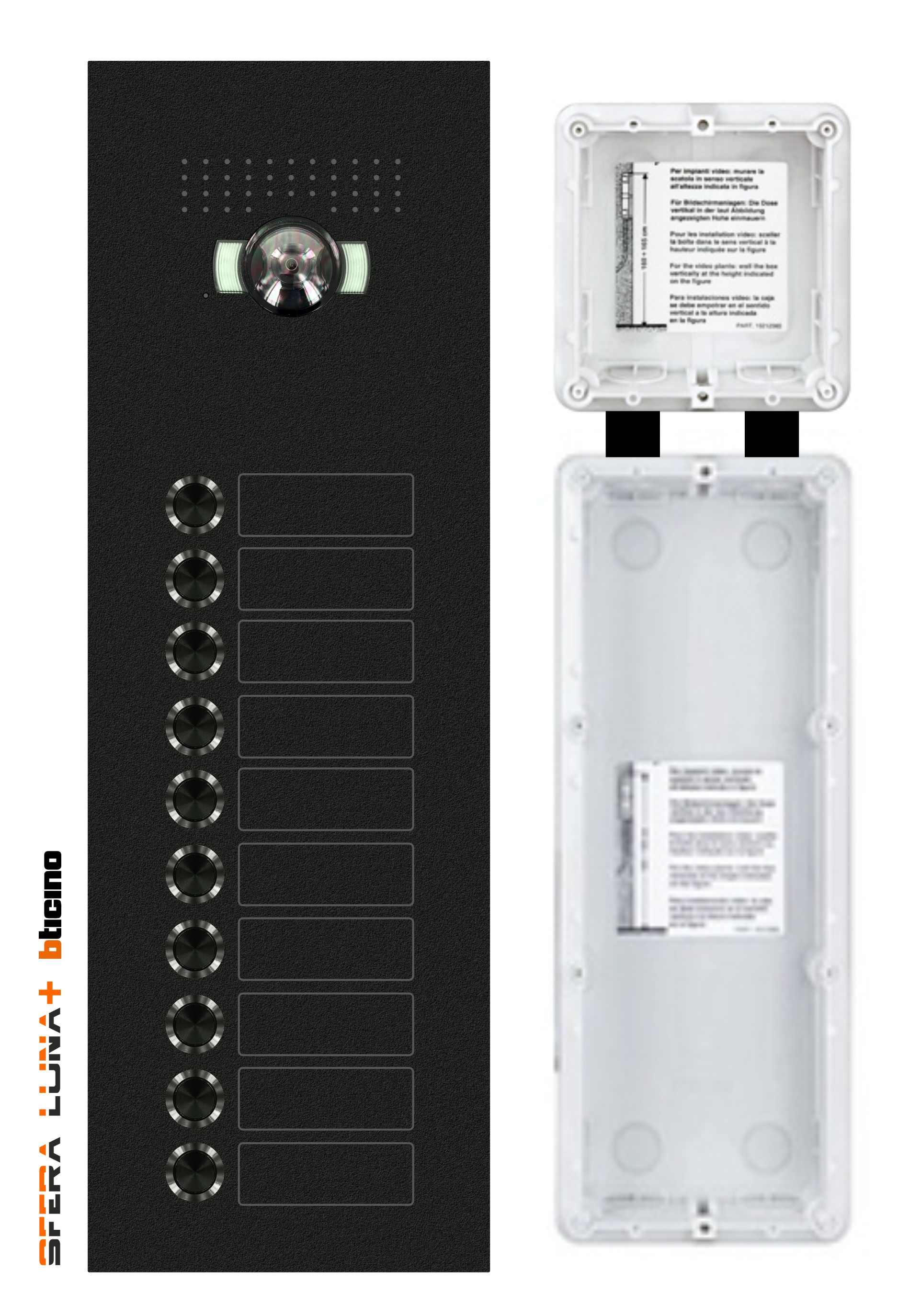

- Flush-mounted on BTicino flush-mounting boxes 350030+350010
- Also available with a surface-mounted solution
- Vandal-resistant IP54 – IK08
▼ Technical specifications
The SFERA LUNA front panel has been developed for long-lasting installation in outdoor environments. Thanks to its solid aluminium construction and high-quality finish, the system offers excellent resistance to the elements and vandalism.
- Front panel: IK08 – IP54
- Call buttons: IK08 – IP65

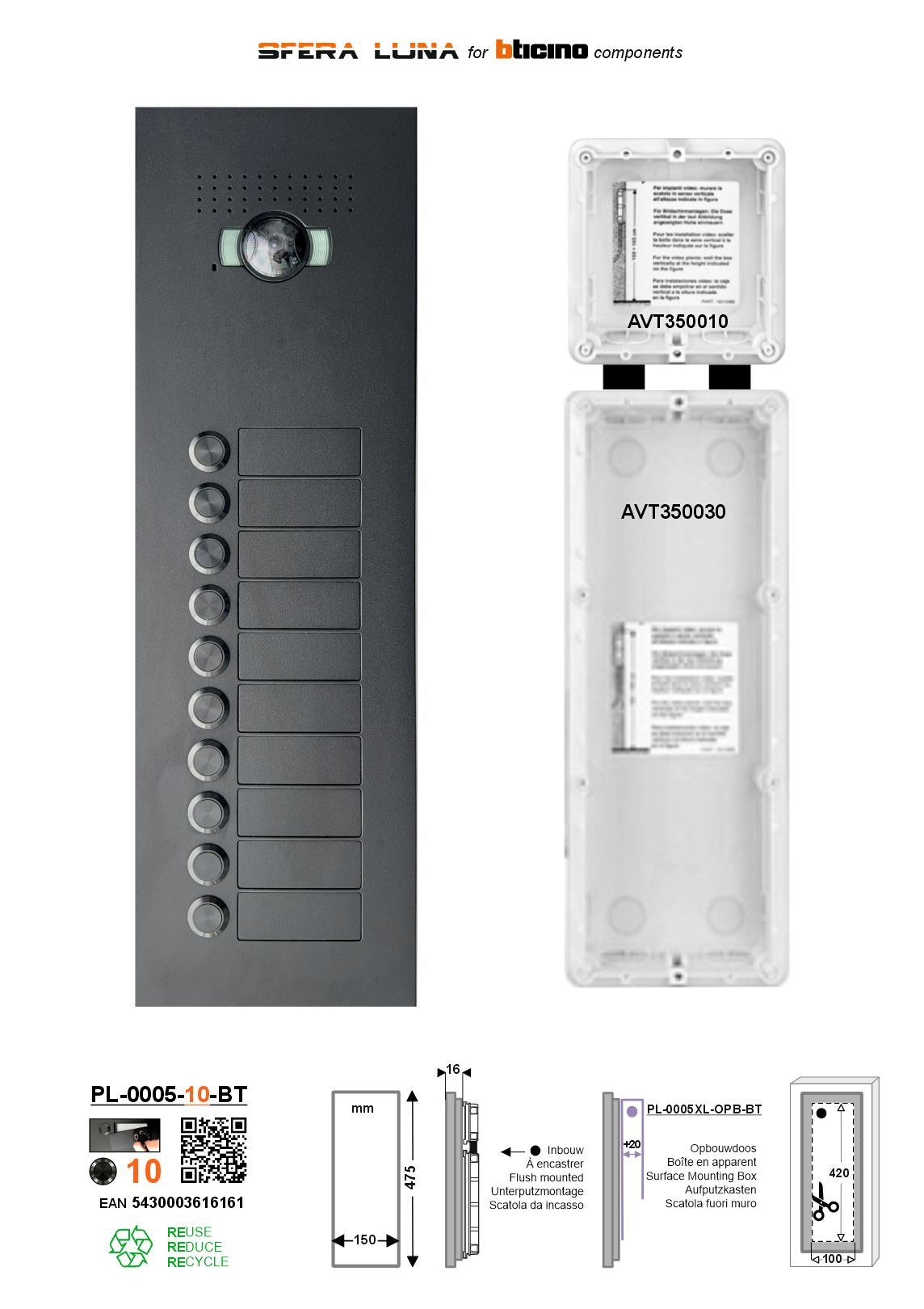

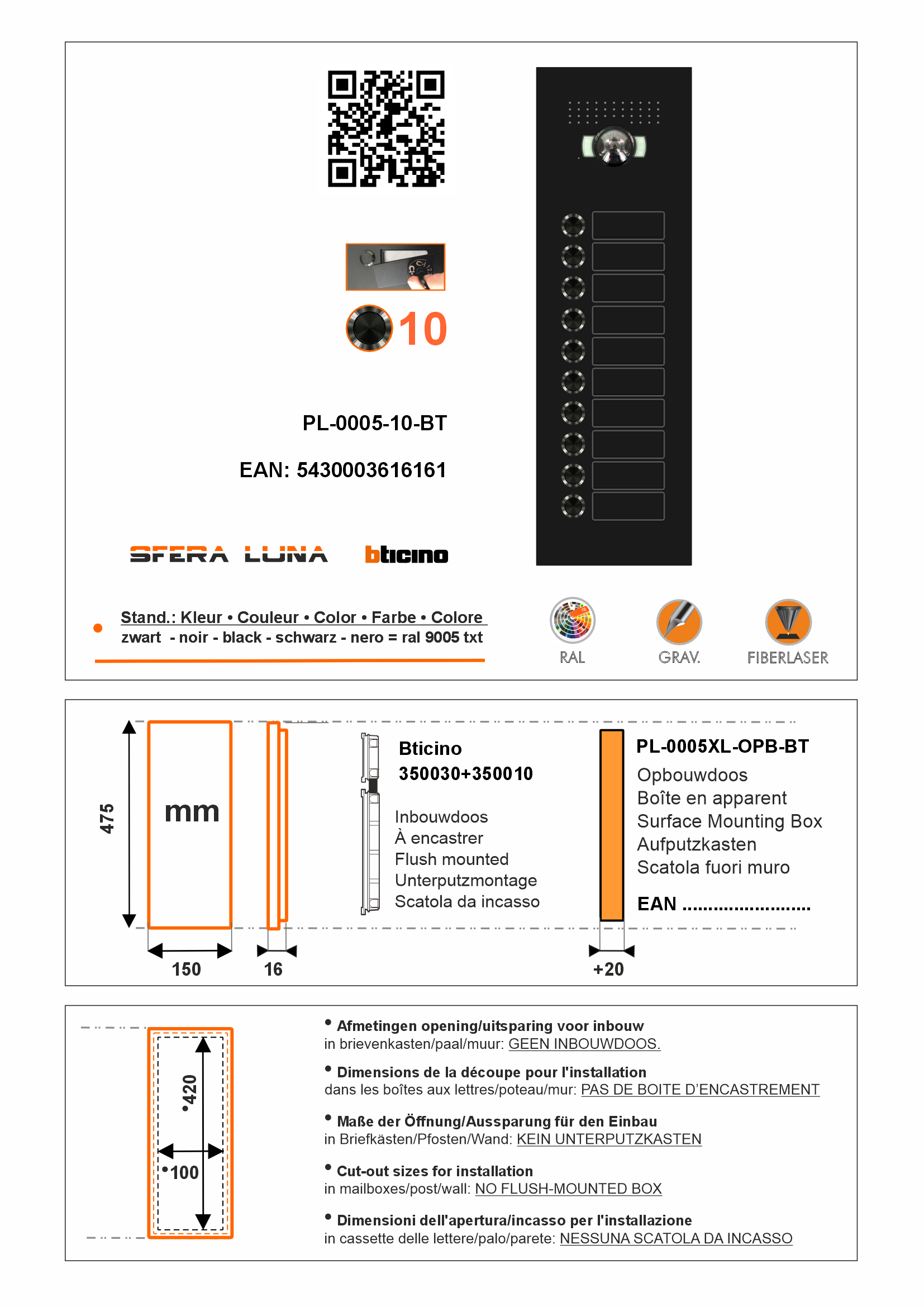

- External dimensions of front panel: 145 × 475 × 16 mm (W × H × D)
- Suitable for long-term outdoor use
This construction guarantees a long service life and reliable operation in residential and professional applications.

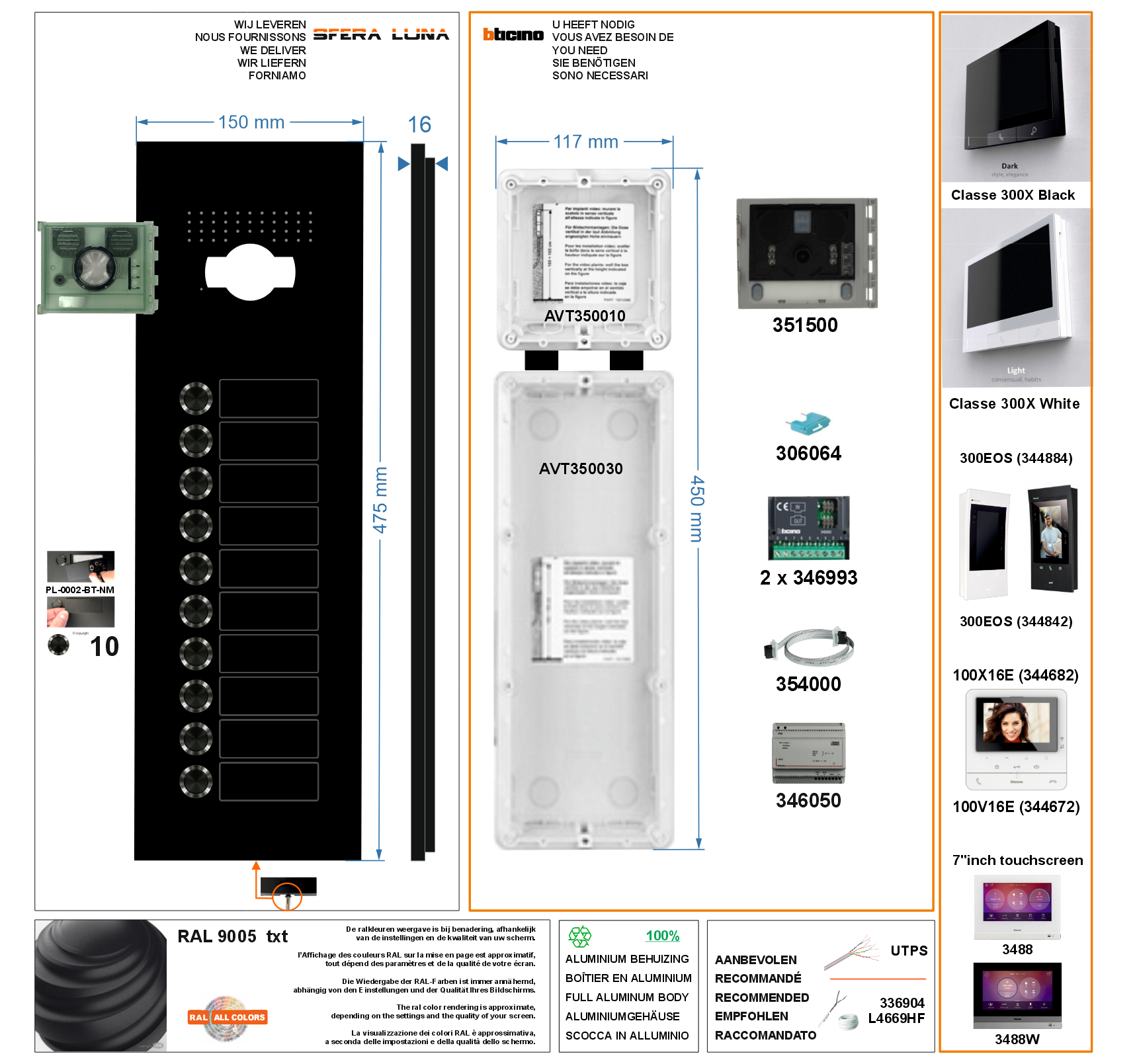

▼ Scope of supply: Luna standard
The SFERA LUNA front panel is supplied as a complete, high-quality solution for professional installation. All components are designed for easy assembly and durable operation in outdoor environments.
- Front panel in your chosen RAL colour (IP54 – IK08)
- Mounting bracket with fixing screws for BTicino flush-mounted box 350030+350010
- 351305PKM – protective plexiglass cover for BTicino module 351500
- 10 call buttons (black, stainless steel or LED – IP65 – IK08)
- 10 interchangeable nameplates (IP65)
- Installation tools for concealed fixing
All components are designed for quick installation and a sleek architectural finish.
Optional extras: Surface-mounted box, Rain and sun visor, Surface-mounted box 45%
▼ BTicino components you will need
The following minimum BTicino components are required for correct installation:
- 350030+350010 – flush-mounted boxes (3+1 module combination) (surface-mounted box available as an option)
- 354000 – connection cable 620 mm
- 351500 – audio/video module with wide-angle camera
- 346993 (x2) – Sfera interface (up to 8 call buttons)
- 346050 – power supply
- 306064 – configuration kit
- Compatible with all BTicino indoor units
346250 – Potential-free door lock relay (for opening door/hatch)
BTicino REF 336904 or UTP-S = Recommended cabling:
For optimum warranty and support, we recommend purchasing BTicino components through the official distribution network in the country where the installation is to take place.
▼ Aluminium – the green metal
The SFERA LUNA front panel is manufactured from solid aluminium, a material often described as the green metal. Aluminium is fully recyclable without any loss of quality and therefore plays an important role in sustainable and circular construction projects.
In addition to its environmentally friendly nature, aluminium also offers excellent technical properties. The material is lightweight, strong, corrosion-resistant and low-maintenance, making it particularly suitable for high-quality outdoor applications and architectural installations.
▼ Information – components & compatibility
SFERA LUNA is a partner of the Legrand Group and BTicino and develops solutions that are fully compatible with the original BTicino Sfera system.
The SFERA LUNA front panel is 100% compatible with BTicino components and can be seamlessly integrated into existing installations.
For optimal warranty cover and support, we recommend purchasing BTicino components through the official distribution network in the country of installation.
If certain BTicino components or modules are not available in the country where the project is based, we can arrange for these parts to be supplied via our network. This service does not apply to the Benelux countries and Switzerland.
