SFERA LUNA+LED House Number Keypad Video Parlofonie High-End Bticino

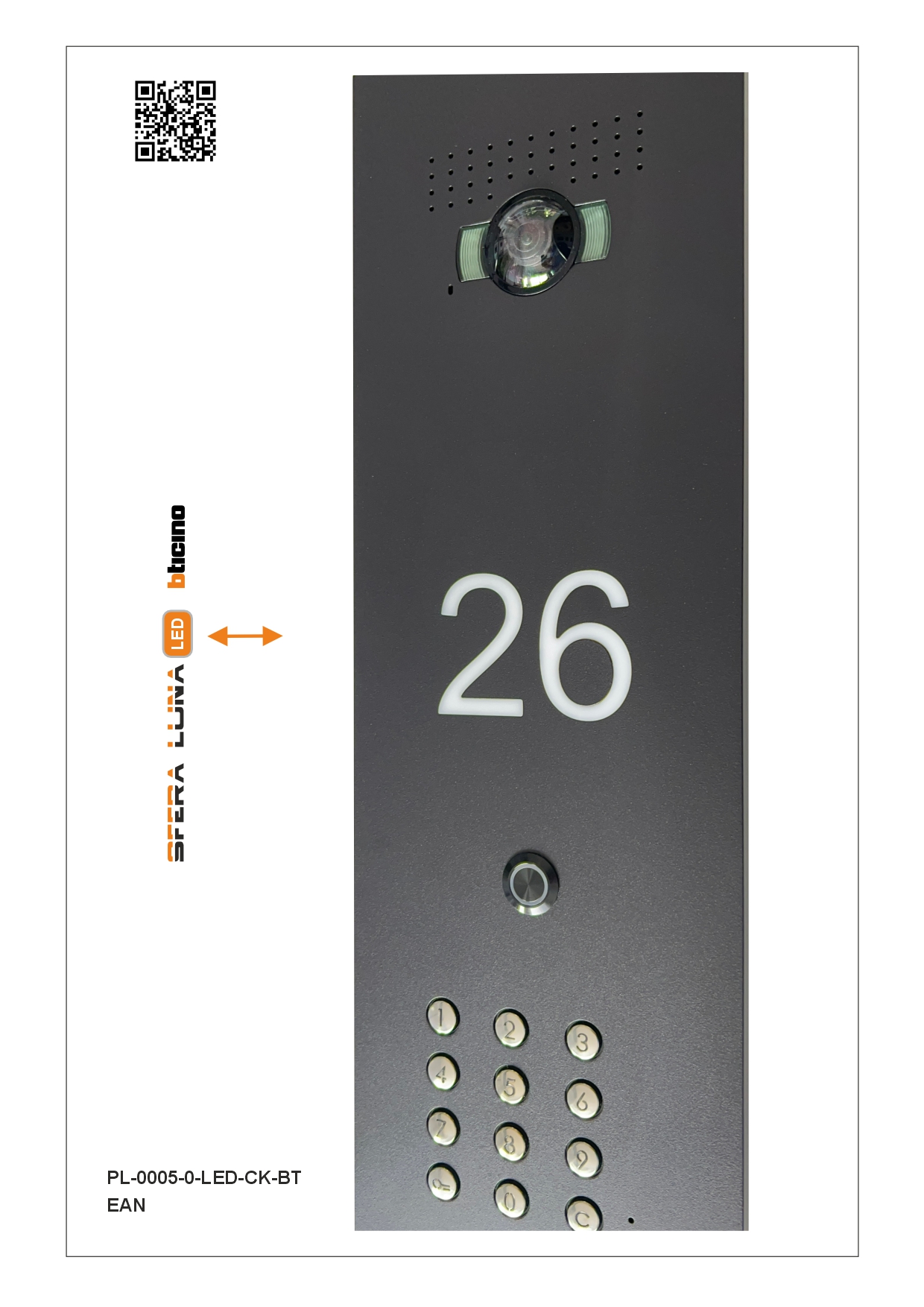

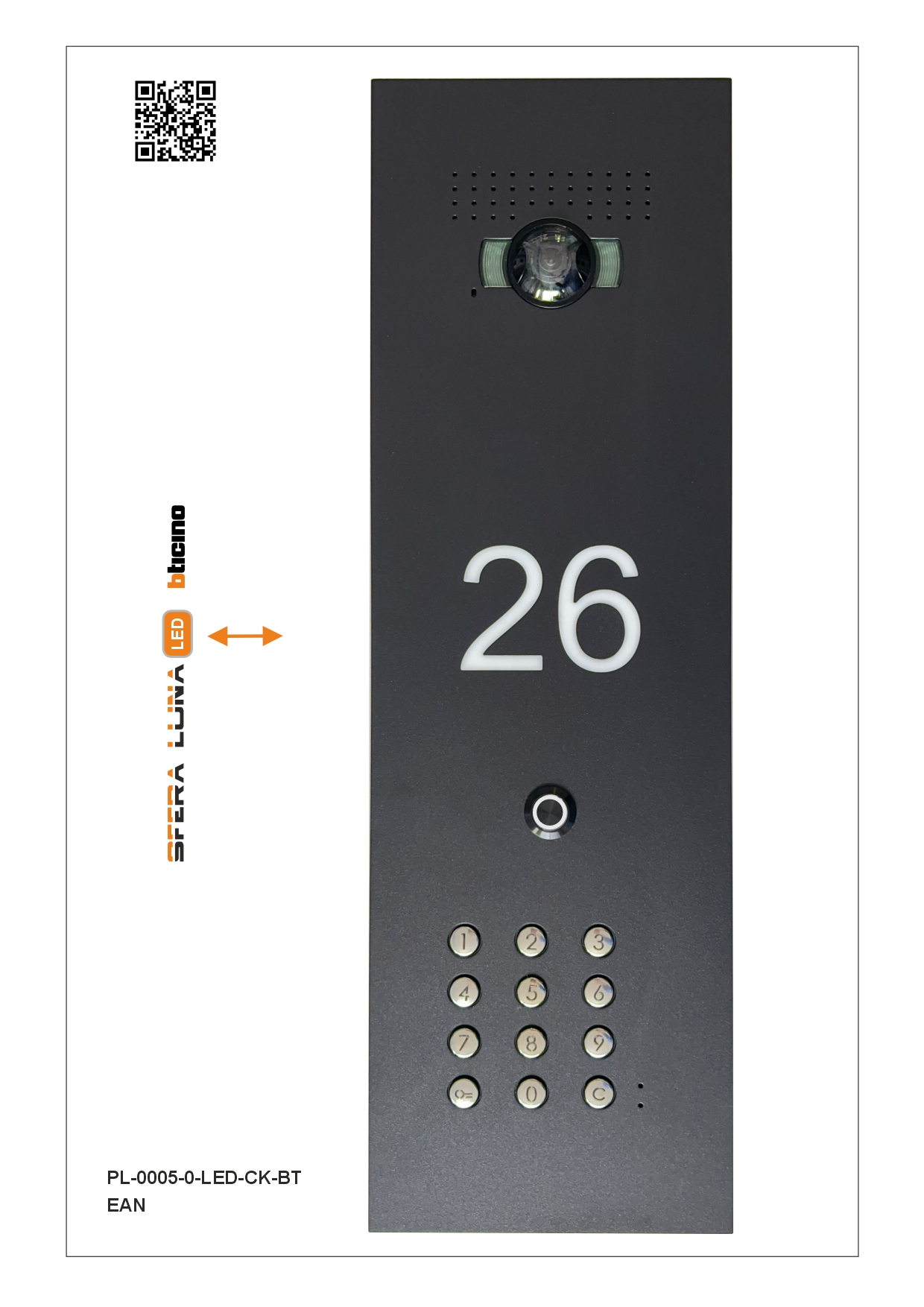

• Videophone front entry panel Sfera Luna+ House sign led lit + Keypad  LED illuminated for Biticino

• ---

  For wide angle BTICINO audio/video 351300 ^{(viewing angle: horizontal 135°- vertical 96°)}

• ---

  The LED illuminated house number is backlit, using the Bticino module 352200.

• ---

  A sleek and unique high-end design led lit at the entrance of your residence / apartment ...

• ---

  Front panels are available in all ral colors, machting the color of your residence or project.

• Made in 10mm aluminium, High End, solid finish.
• Central mounting system front panel. (easy blind mounting)
• Vandalism resistant. (IK 08)
• Installation possibilities: on walls, gates, columns, mailboxes, etc ...
• Easy installation in narrow surroundings.
• Unique recessed system for recessed gates, poles, etc. .....
• Removable front name plates, personalised or not.
• 1 or 2 or 3 or more call buttons : ask for more information: [email protected]

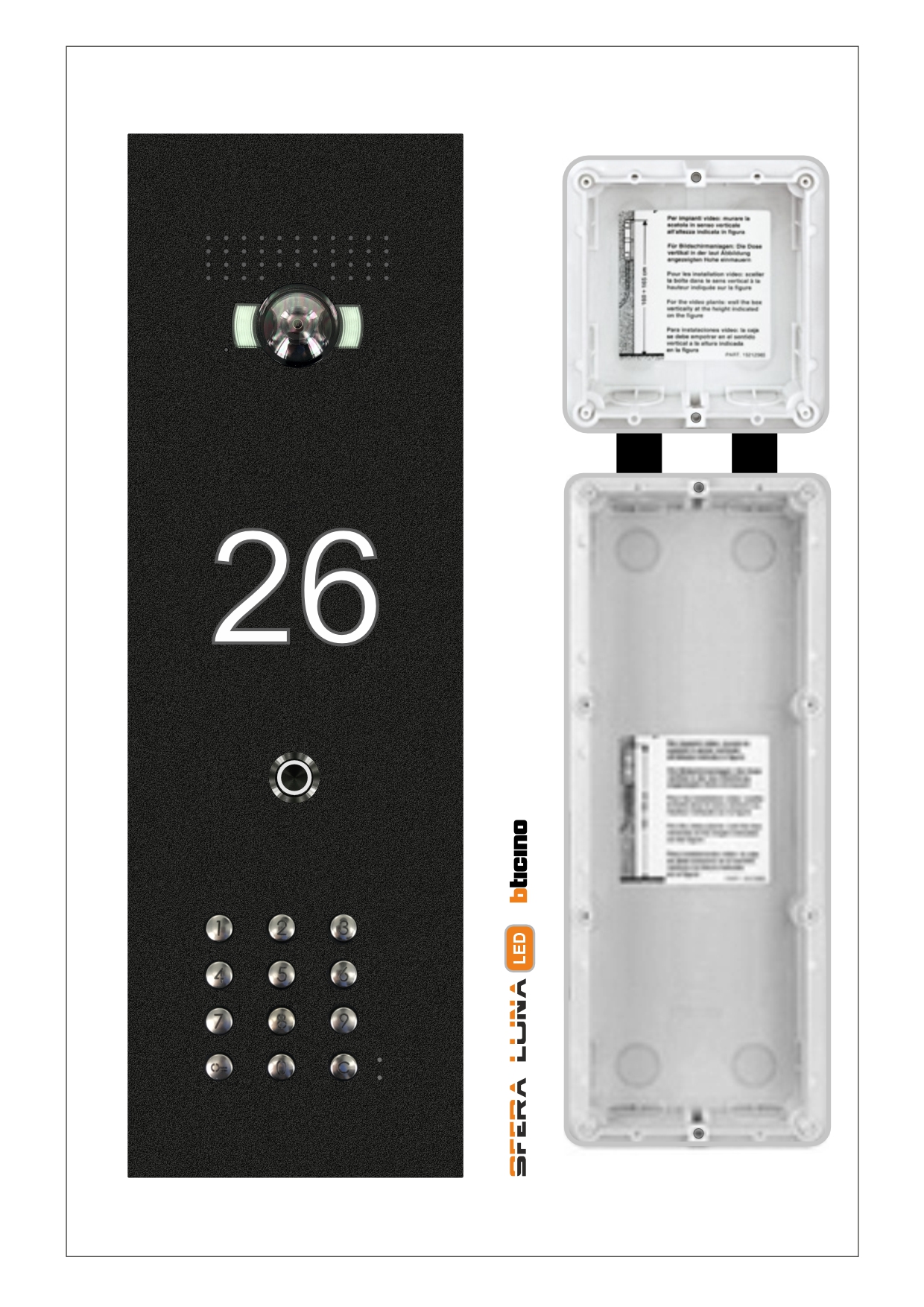

• Model flush mounting on standard box Bticino 350030+350010
• Also available with surface-mounted module.

Sfera Luna (partner of the Legrand Group), copyright model.

 All Ral colours available

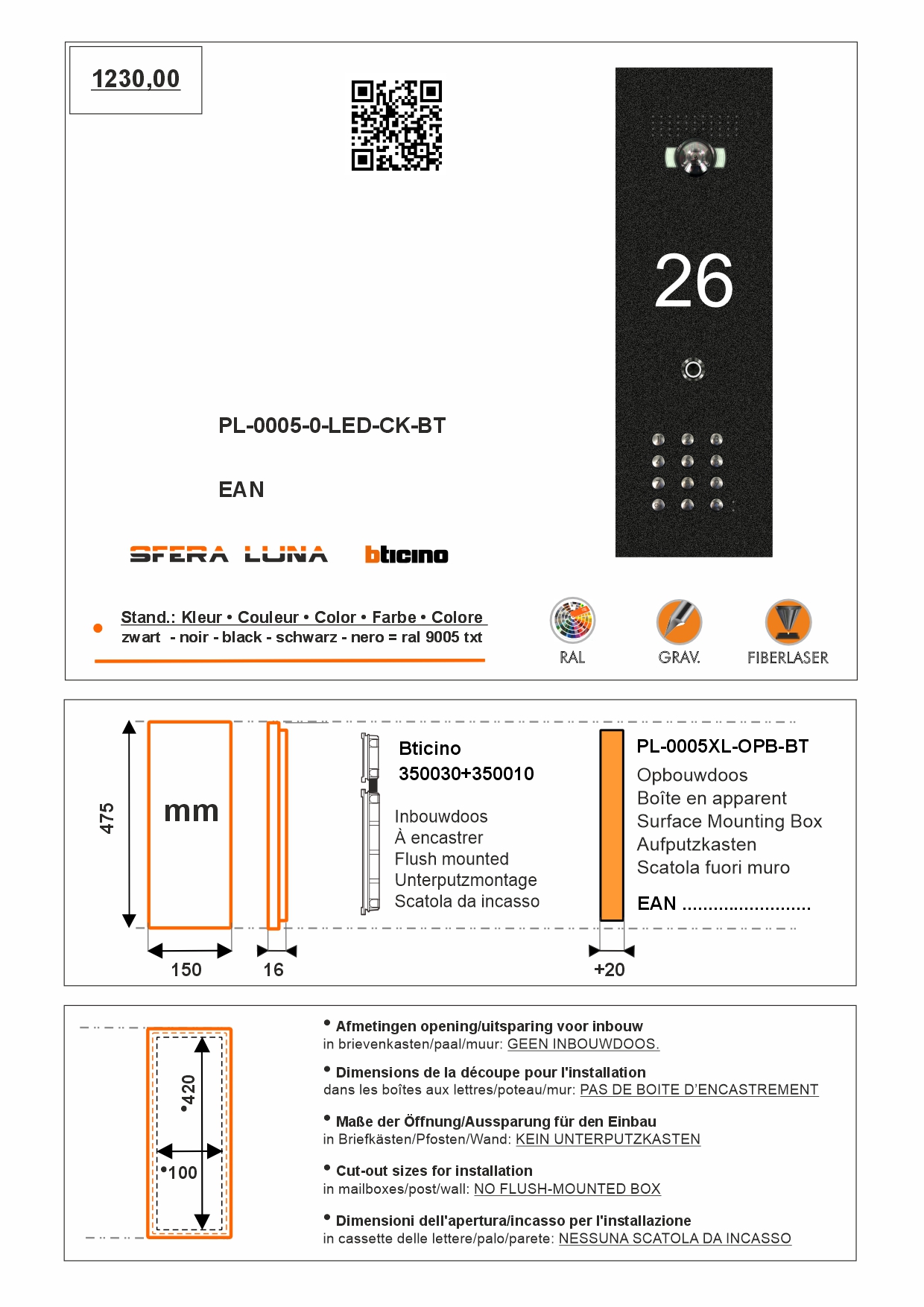

Dimensions: width 150mm x height 475mm

We supply:

1. Front panel in ral colour. (IK08 - IP54)
2. Support base for mounting on junction box 350030+350010
3. Screws for mounting on flush-mounting box
4. 351305pkm - plexi for module 351300
5. 353005pkm - plexi front panel keypad
6. Personalised with LED illuminated house number via module 352200
7. 1 or 2 or 3 call pushbuttons integrated  (IK 08 - IP67)
8. 0, 1 or 2 or 3 name tags (Interchangeable). (IK 08 - IP67)

You need Bticino:

1. 350030 + 350010 - flush-mounted boxes Bticino
2. 354000 videoparlofonie connection cable for functional modules
3. 351300 - Audio/video module with wide-angle lens
4. 352200 - LED illuminated module ( Info module)
5. 353000 - Keypad LED illuminated
6. 346993 - Interface Sfera
7. 346050 - Power supply
8. Compatible with all Bticino Indoor units: preferred 100X16E (344682) or 300EOS (344842) or MyHOME_UP 7" Hometouch (3488)

 Create your personal videophone with our editor order form.

• Combine your combination(s) into an original concept!
• Real time display. The rendering will always be optimized by our typographer / graphic artist.
• The order form is already preset and indicated in blue like the photo shown in our webshop.

  Aluminium THE GREEN METAL:

Aluminum can be recycled almost infinitely without loosing its unique properties. In remelting it is not only reclaimed metal, but by definition, 95% of energy is saved. The ore is very easy to exploit: it is just excavated to the surface. After just fifteen years nature has recovered.

Our exclusive products are produced in certified high quality materials. A combination of state of the art machinery and handcrafted finishes.

Sfera Luna (partner of the Legrand Group), copyright model.
