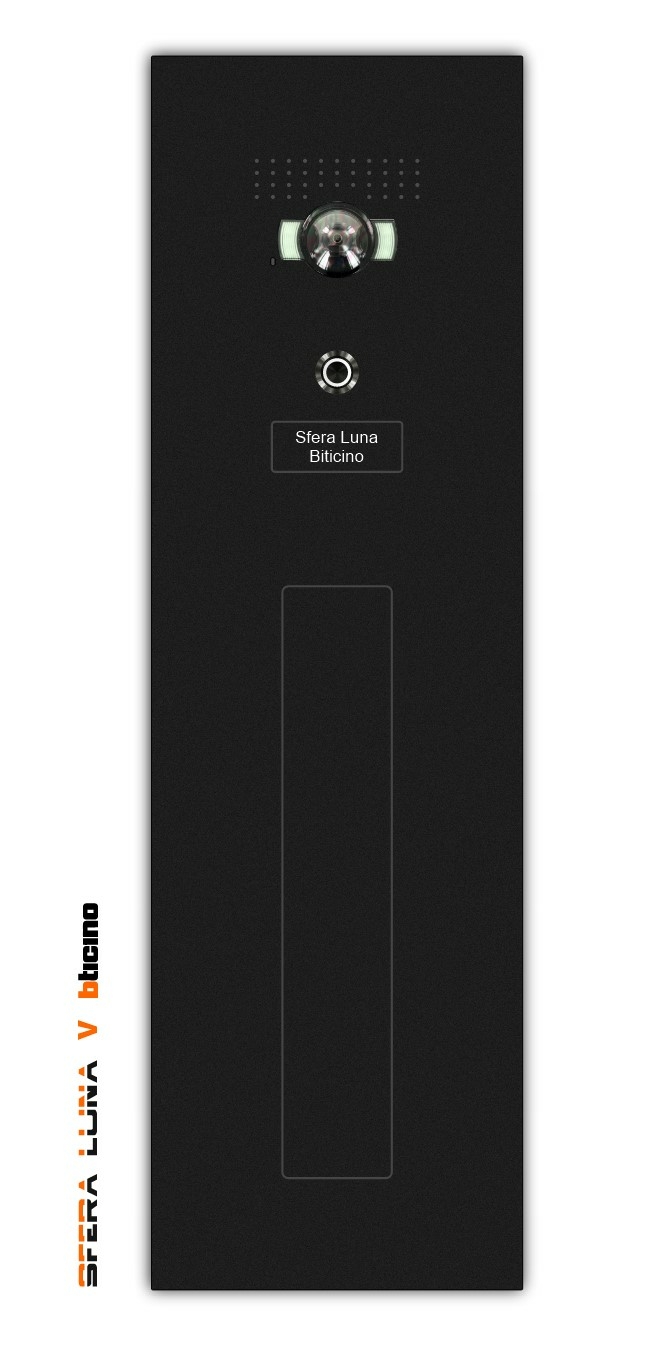

Video Parlofonie High-End Bticino SFERA LUNA+ with vertical letterbox flap

Product Code : PL-0005-2-MAIL-V-BT

  • Video entrance front panel with letterbox flap / throw-in flap vertical + name shield and.
  • Outside dimensions: width 185mm x height 615 mm

  • For Bticino outdoor station = 2 wire audio/video module AVT 351300 wide angle viewing angle: horizontal 135°- vertical 96° .
  • "All-In-One" for Bticino components.

  • Sleek high-end design at the entrance to your home, apartment, gate or business ....

  • Design front panel made of 10mm aluminum with solid letterbox flap thickness 5mm.
  • Flap opening: width 50mm x height 295mm = box minipack small & medium Bpost
  • Standard ral colour: black ral 9005 fine texture.  All Ral colors available ralkleuren plexi-view

  • Inward rotating letterbox flap, waterproof.
  • Standard mounting
  • The name tag can be easily changed with a unique, invisible mounting system.
  • The name tag can be personalized when ordering or later.
  • Call pushbutton standard black or stainless steel (also available led illuminated)
  • Central mounting system front panel (easy blind mounting).
  • Vandalism resistant.
  • Installation possibilities: on walls, gates, columns, mailboxes, etc.
  • Easy installation in narrow surroundings.
  • Unique built-in system for built-in gates, columns, ...
  • Level mounting possible via oblong holes.

Sfera Luna, partner of the Legrand Group (copyright model)

ralkleuren plexi-view All Ral colours available

afmetingen plexi-view Dimensions: width 185 mm x height 615 mm

We supply:

  1. Front panel in ral colour.
  2. Support base for mounting on AVT junction box 350020 Bticino (pre-assembled)
  3. Mounting method: recessed (stucco)
  4. 351305pkm - plexi for module 351300 AVT
  5. 1 call pushbutton
  6. 1 name tag, interchangeable
  7. Letterbox flap with opening: width 50 x height 295 mm

You need:

  • 351300 AVT - Audio/video module with wide-angle lens
  • 346993 Interface Sfera
  • 346050 AVT - Power supply
  • Compatible with all bTicino Indoor units: AVT-Class 100X16E  or AVT Classe 300EOS ref. 344842 or
  • Preferably use twisted pair cable Bticino REF 336904 for the connection!

 Create your personal videophone with our editor order form.

  • Combine your combination(s) into an original concept!
  • Real time display. The rendering will always be optimized by our typographer / graphic artist.
  • The order form is already preset and indicated in blue like the photo shown in our webshop.

Video Parlofonie High-End Bticino SFERA LUNA+ with vertical letterbox flap

  Aluminium THE GREEN METAL:

Aluminum can be recycled almost infinitely without loosing its unique properties. In remelting it is not only reclaimed metal, but by definition, 95% of energy is saved. The ore is very easy to exploit: it is just excavated to the surface. After just fifteen years nature has recovered.

Our exclusive products are produced in certified high quality materials. A combination of state of the art machinery and handcrafted finishes.

Designed & (hand) made

Sfera Luna (partner of the Legrand Group), copyright model.
