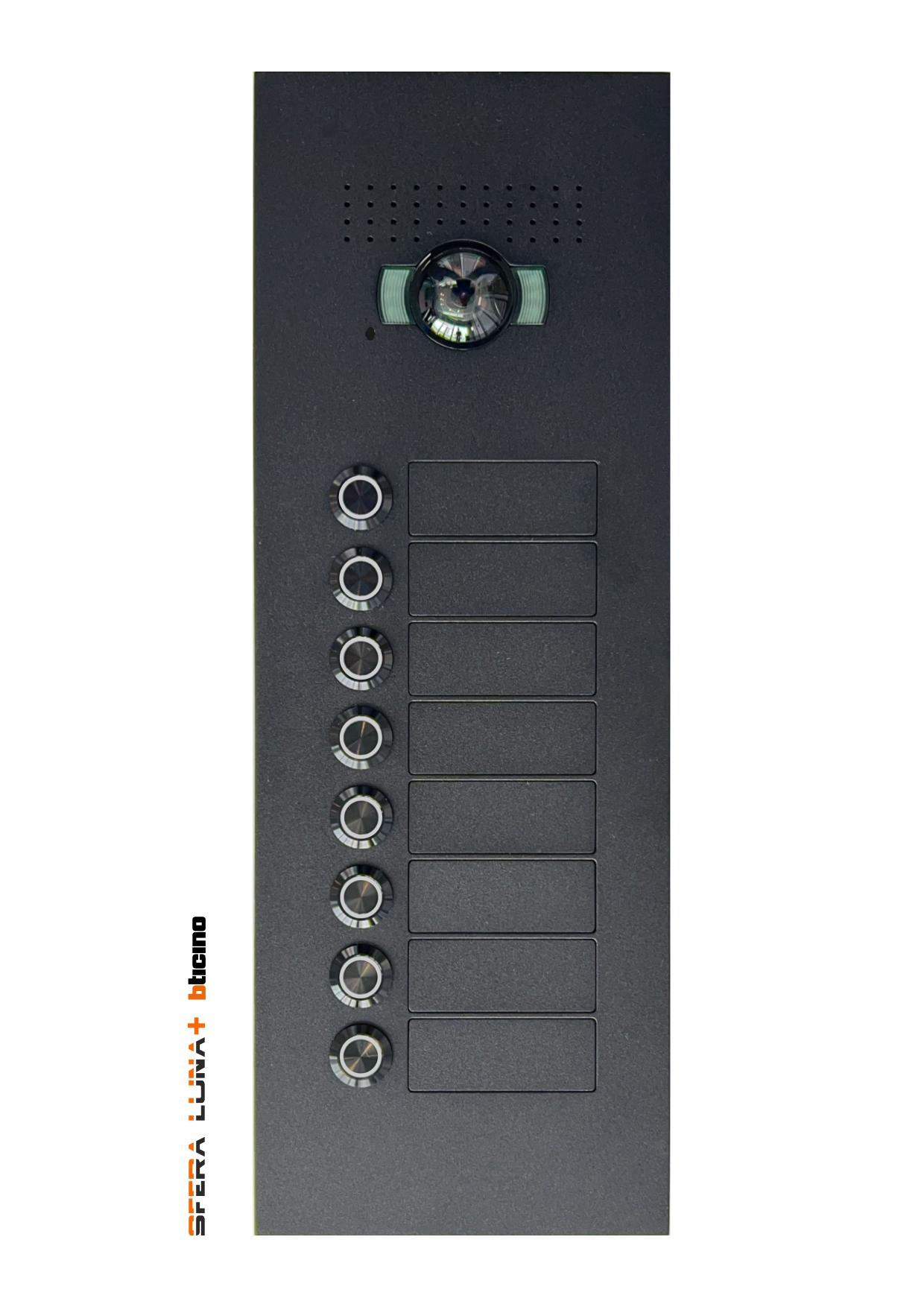

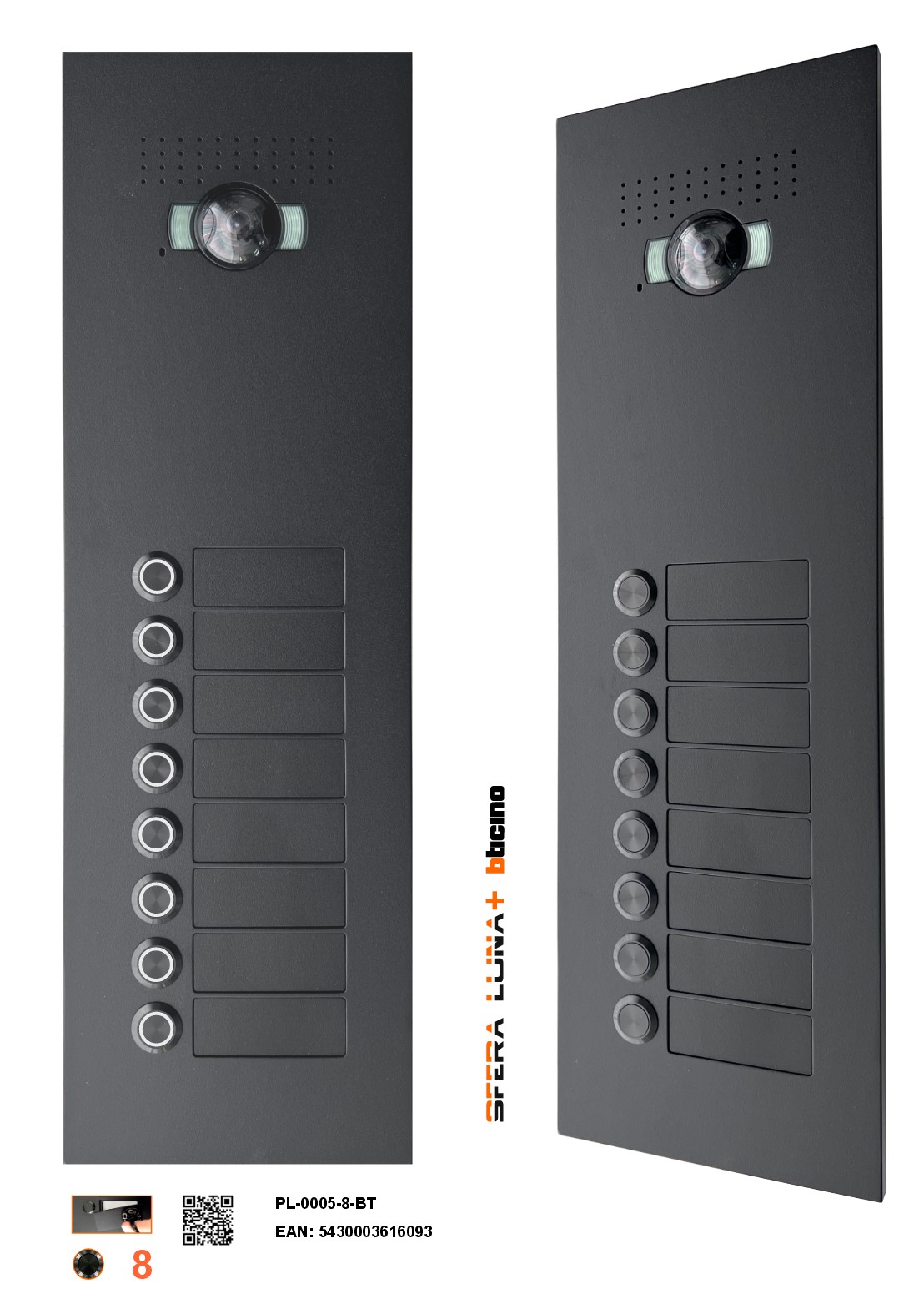

SFERA LUNA+8 Call Buttons Video Parlofonie High-End Bticino

For Biticino wide angle audio/video 351300 viewing angle: horizontal 135°- vertical 96°

Sleek high-end design at the entrance of youre residence / apartment ...

Vandal resistant.

Design front panel as standard in colour black ral 9005 fine texture.

The front panels are available in all ral colors, matching the color of your residence or project.

• 8 doorbell buttons for duo house or flat or practice/private application.

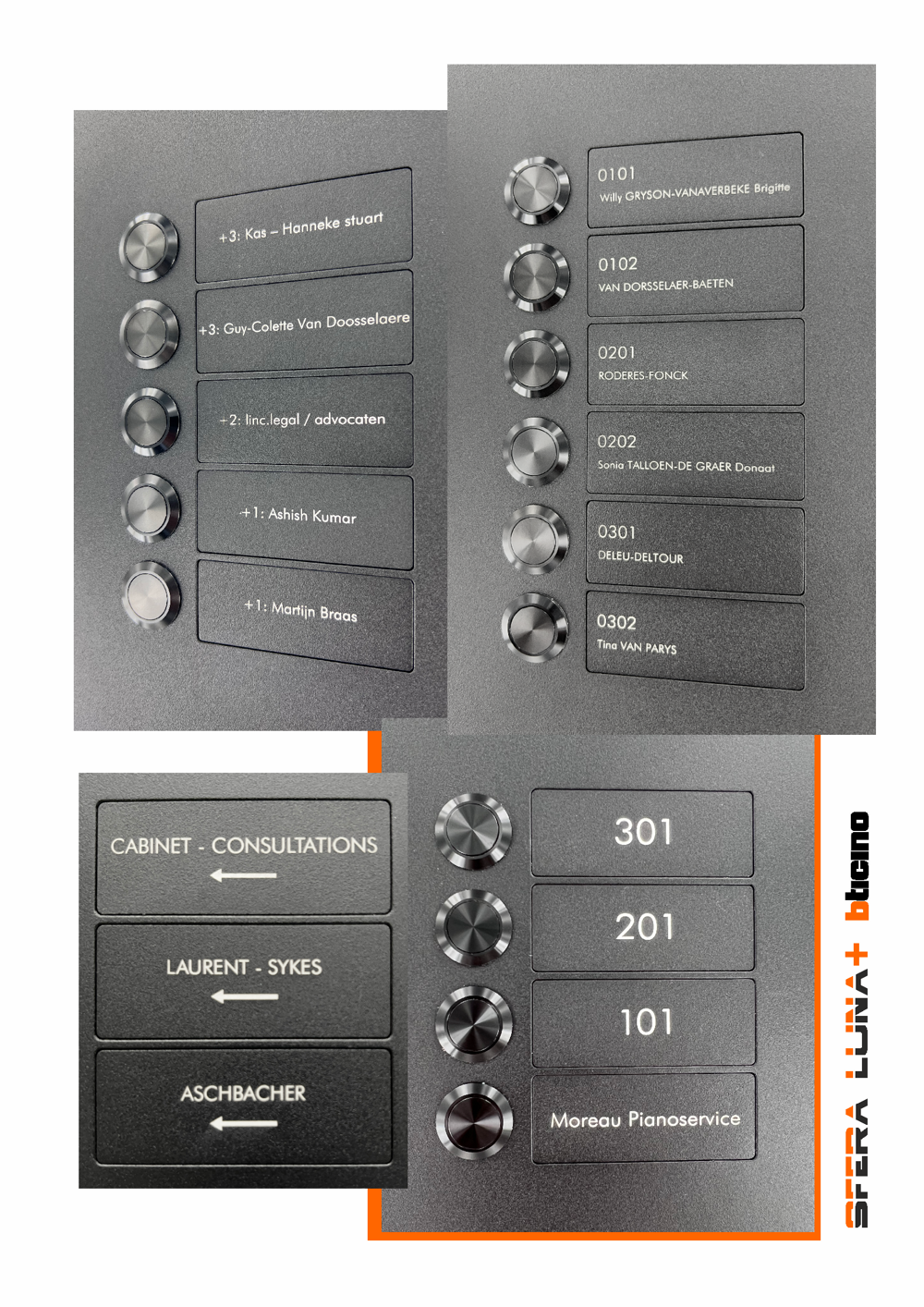

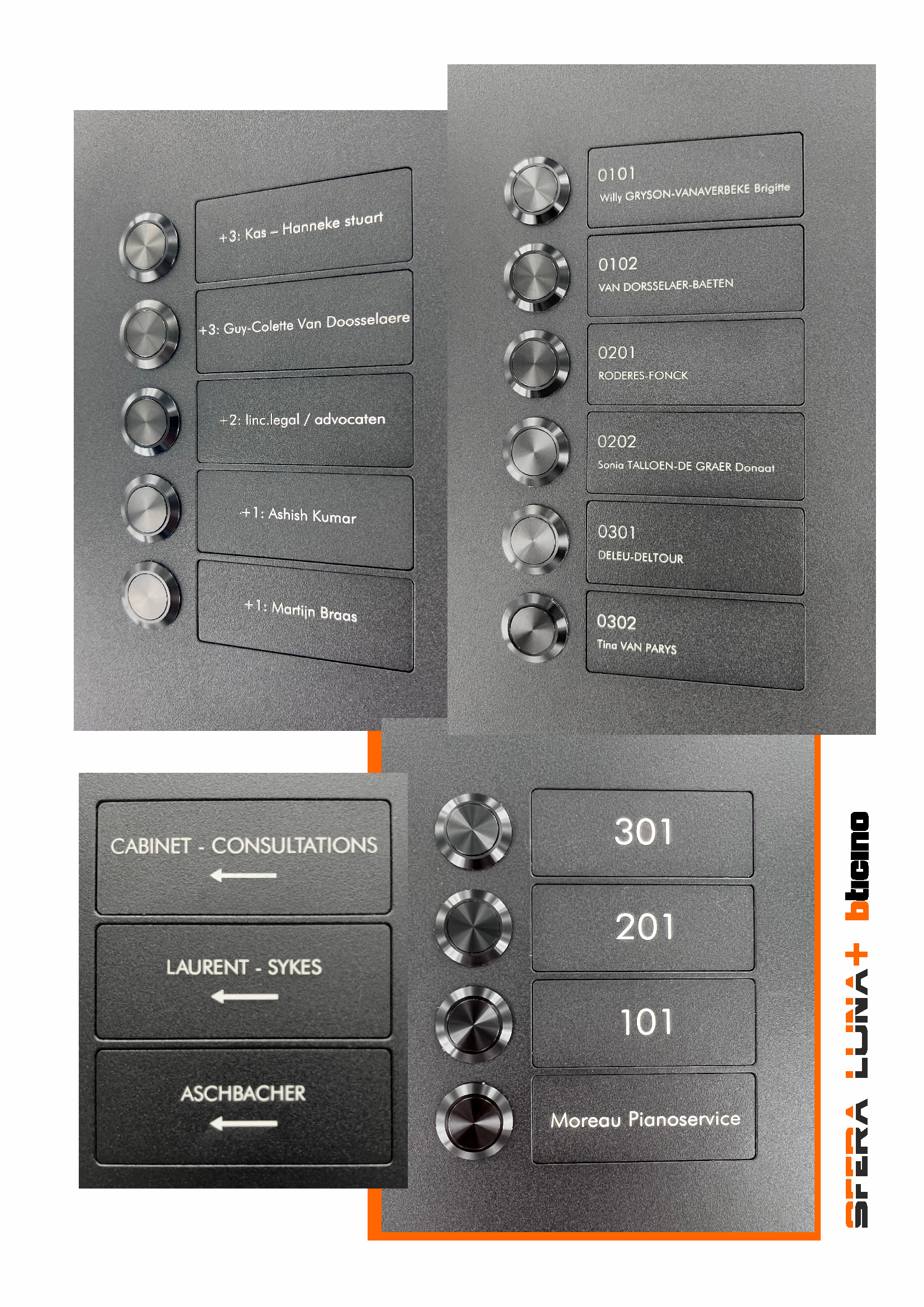

• 8 interchangeable nameplates, easy mounting with unique invisible mounting system
• Produced in 10mm aluminium, High End, Solid finishing.
• Central mounting system front panel. (Simple blind mounting)
• Vandalism resistant.
• Installation possibilities: on walls, gates, poles, mailboxes, etc ...
• Installation possibilities in mailboxes ... .
• Removable nameplate can be personalized or not.
• Easy installation in narrow environments

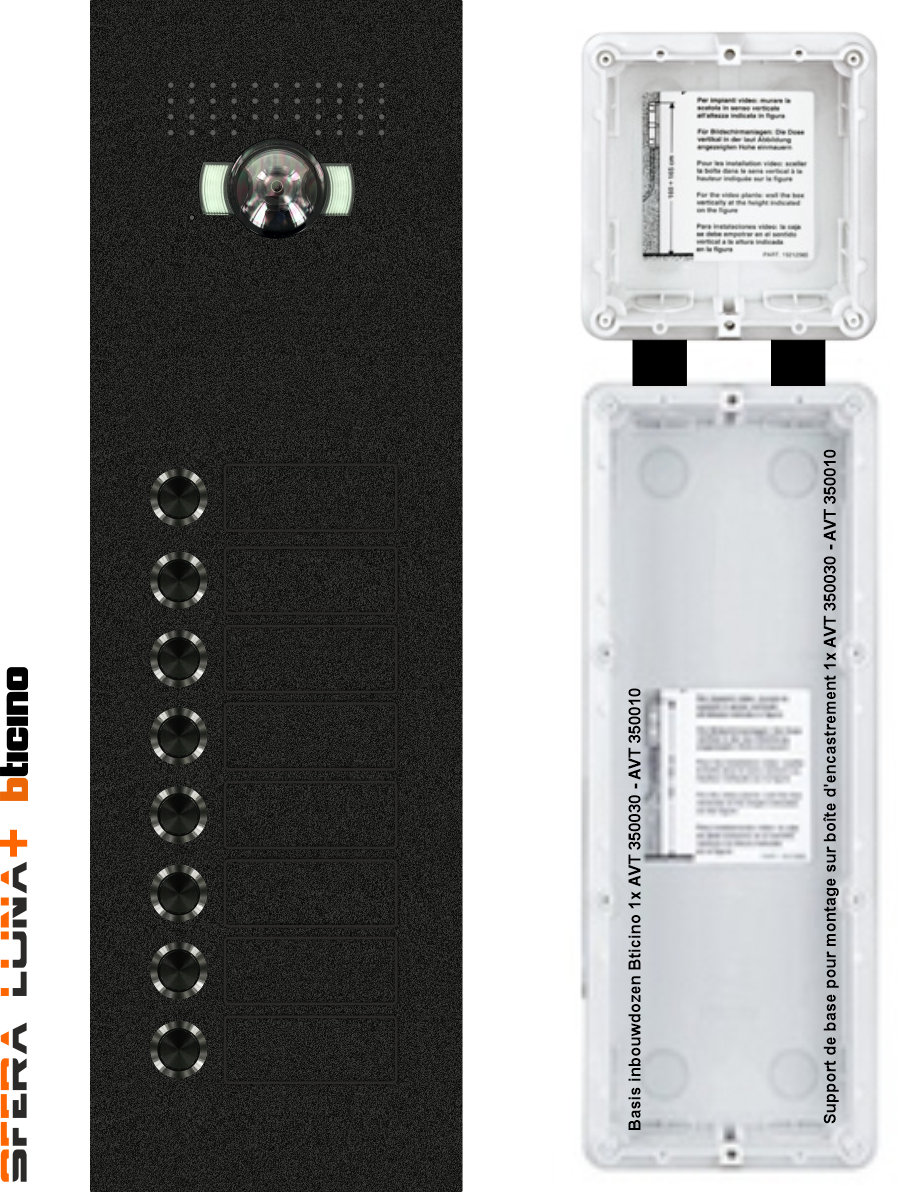

• Model flush mounted on standard box Bticino 350030+350010
• Positionable with oblong holes.
• Also available with surface-mounted module.

Sfera Luna (partner of the Legrand Group), copyright model.

 SFERA LUNA DOCUMENTS

 All Ral colours available

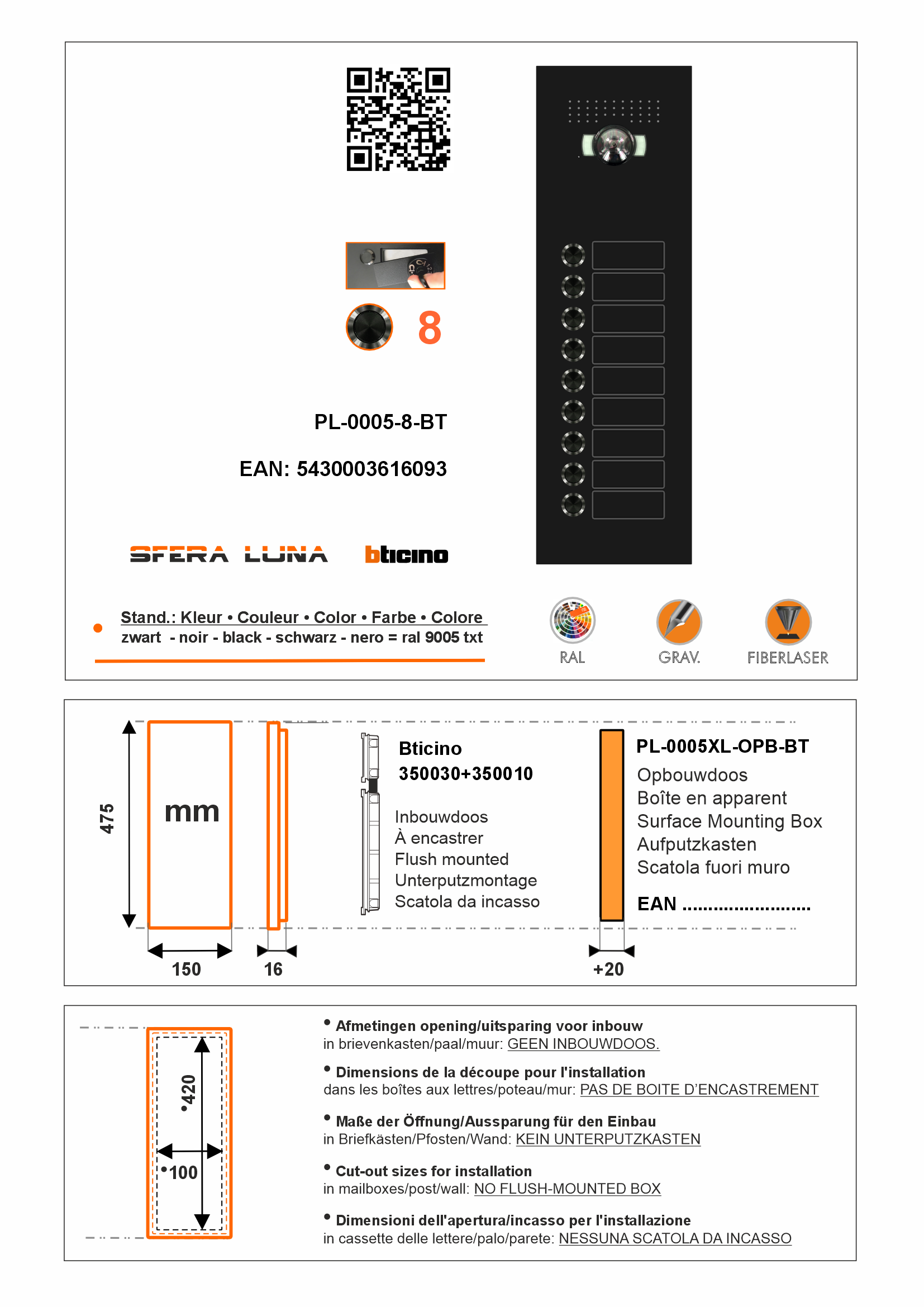

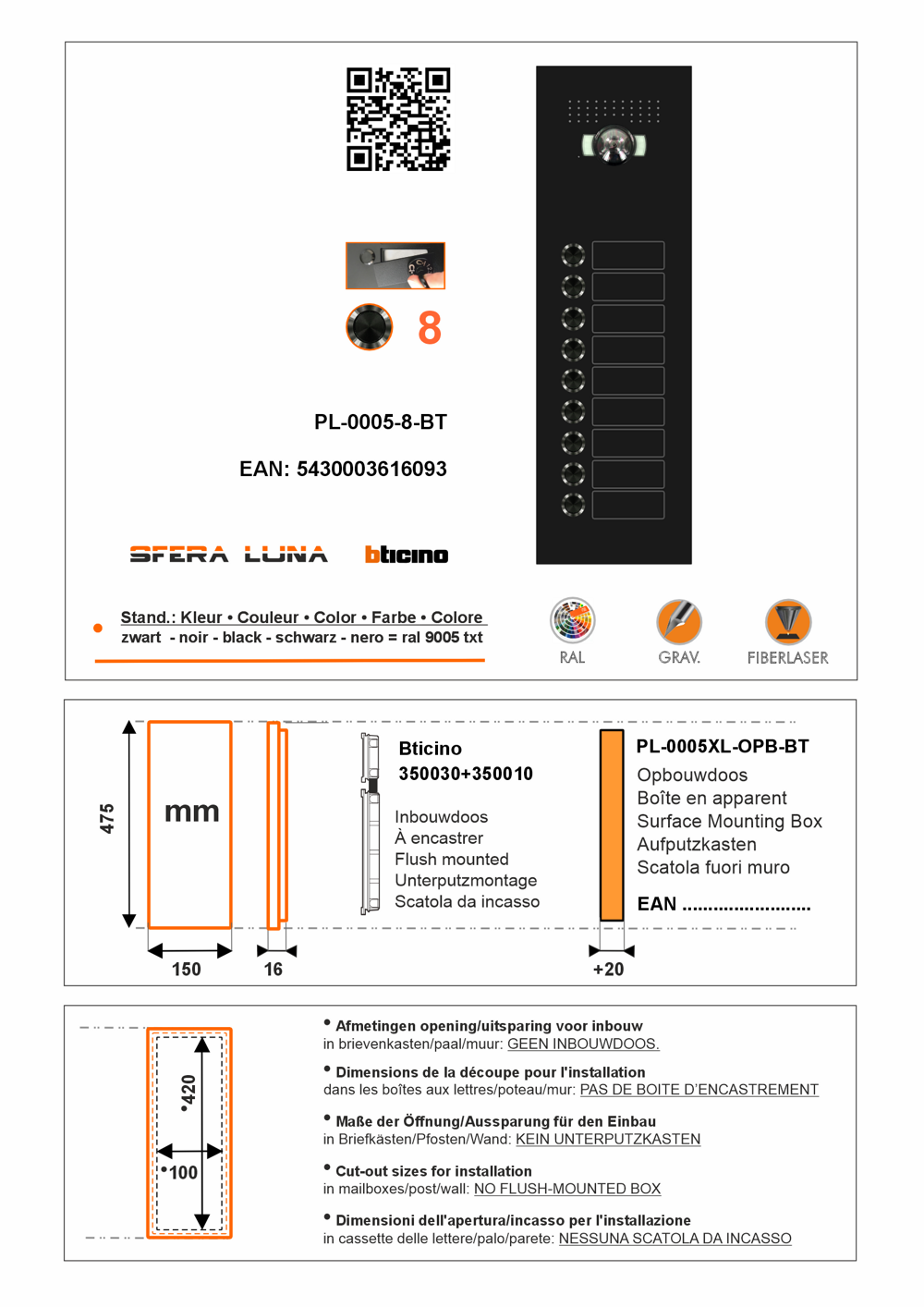

Dimensions: width 150mm x height 475mm

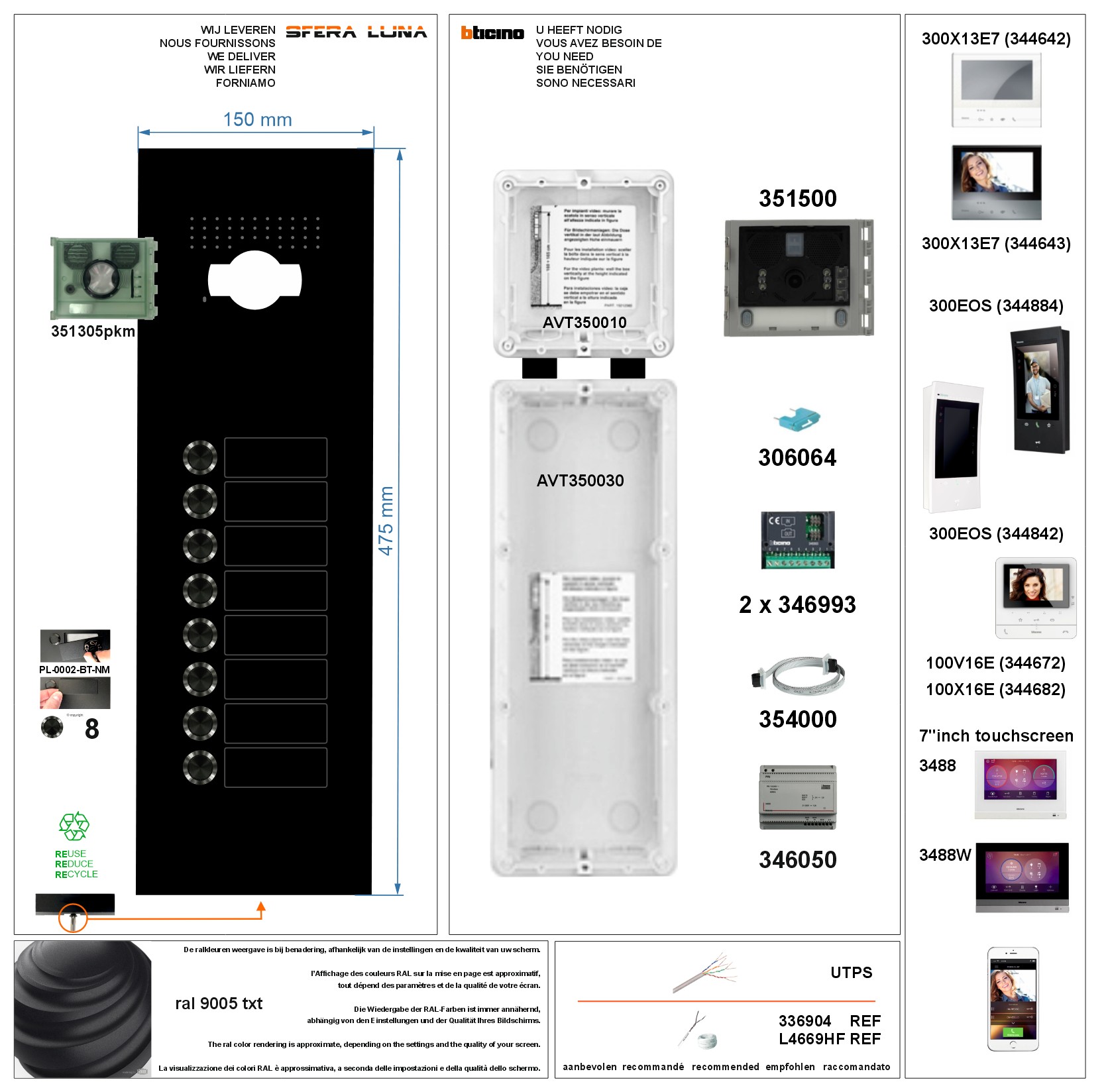

We supply :

1. Front panel entrance in ral color (IK08 - IP54)
2. Modular panel frame + screws for installation on flush-mounting boxes 350030 + 350010
3. 351305pkm - plexiglas for module 351300
4. 8 pushbuttons (integrated) black stainless steel, stainless steel or led (IK08 - IP67)
5. 8 interchangeable name tags
6. Tool for mounting changeable name tags

You need Bticino :

1. 350030 + 350010 - Flush-mounting boxes
2. 354000 - Videoparlofonie connection cable for functional modules
3. 351300 - Audio/video module with wide-angle lens
4. 346993 - Interface Sfera (up to 8 call buttons possible)
5. 346050 - Power supply(s)
6. 306064 - Conf. set
7. Preferably use REF 336904 twisted cable for the connection
8. Compatible with all Bticino indoor units: Class 100X16E (344682) or Class 300 X13E7 wifi-3/4G (344642) or MyHOME_UP 7" Hometouch (3488) or Class 300EOS (344842)

    These Bticino components are available :

via the wholesaler
via your installer/electrician  https://www.bticino.be/nl/professionals/bt-certified-expert
via stores https://www.bticino.be/nl/stores

  Aluminium THE GREEN METAL:

Aluminum can be recycled almost infinitely without loosing its unique properties. In remelting it is not only reclaimed metal, but by definition, 95% of energy is saved. The ore is very easy to exploit: it is just excavated to the surface. After just fifteen years nature has recovered.

Sfera Luna (partner of the Legrand Group), copyright model.
