SFERA LUNA+8 Call Buttons Video Parlofonie High-End Bticino

For Biticino wide angle audio/video 351500 viewing angle: horizontal 152°- vertical 96°

Sleek high-end design at the entrance of youre residence / apartment ...

Vandal resistant.

Standard in colour black ral 9005 fine texture.

The front panels are available in all ral colors, matching the color of your residence or project.

• 8 doorbell buttons for duo house or flat or practice/private application.
• 8 interchangeable nameplates, easy mounting with unique invisible mounting system
• Produced in 10mm aluminium, High End, Solid finishing.
• Central mounting system front panel. (Simple blind mounting)
• Vandalism resistant.
• Installation possibilities: on walls, gates, poles, mailboxes, etc ...
• Installation possibilities in mailboxes ... .
• Removable nameplate can be personalized or not.
• Easy installation in narrow environments
• Model flush mounted on standard box Bticino 350030+350010
• Positionable with oblong holes.
• Also available with surface-mounted module.

Sfera Luna (partner of the Legrand Group), copyright model.

 SFERA LUNA DOCUMENTS

 All Ral colours available

Dimensions: width 150mm x height 475mm

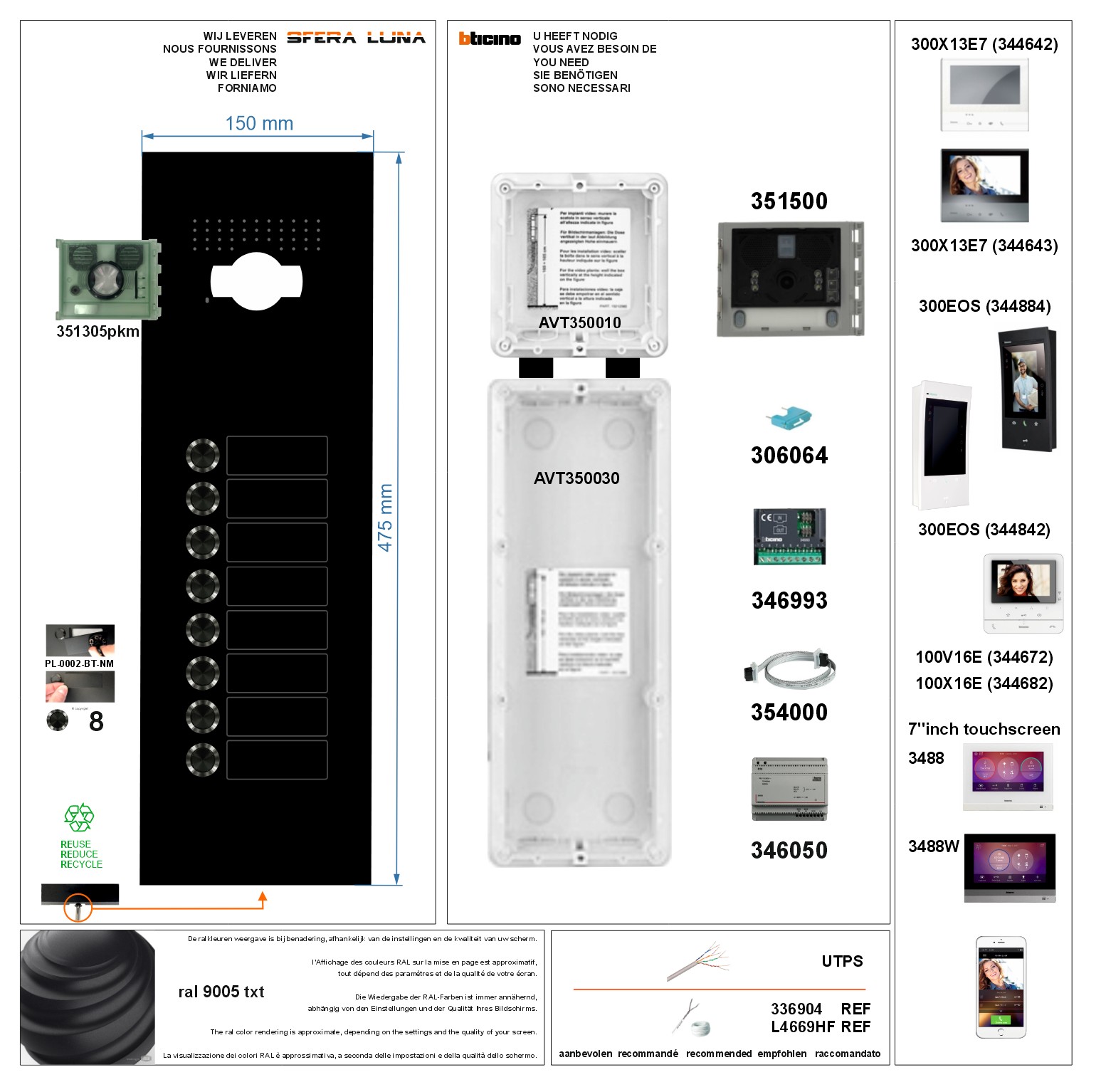

We supply :

1. Front panel entrance in ral color (IK08 - IP54)
2. Modular panel frame + screws for installation on flush-mounting boxes 350030 + 350010
3. 351305pkm - plexiglas for module Audio/video BTicino
4. 8 pushbuttons (integrated) black stainless steel, stainless steel or led (IK08 - IP67)
5. 8 interchangeable name tags
6. Tool for mounting changeable name tags

You need Bticino :

1. 350030 + 350010 - Flush-mounting boxes
2. 354000 - Videoparlofonie connection cable for functional modules
3. 351500 - Audio/video module with wide-angle lens
4. 346993 - Interface Sfera (up to 8 call buttons possible)
5. 346050 - Power supply(s)
6. 306064 - Conf. set
7. Preferably use REF 336904 twisted cable for the connection
8. Compatible with ALL Bticino indoor units

    These Bticino components are available :

via the wholesaler
via your installer/electrician  https://www.bticino.be/nl/professionals/bt-certified-expert
via stores https://www.bticino.be/nl/stores

  Aluminium THE GREEN METAL:

Aluminum can be recycled almost infinitely without loosing its unique properties. In remelting it is not only reclaimed metal, but by definition, 95% of energy is saved. The ore is very easy to exploit: it is just excavated to the surface. After just fifteen years nature has recovered.

Sfera Luna (partner of the Legrand Group), copyright model.
