Video Parlofonie SFERA LUNA+2 Push-buttons keypad High-End Bticino

SFERA LUNA+ video entrace front panel with 2 removable name tags

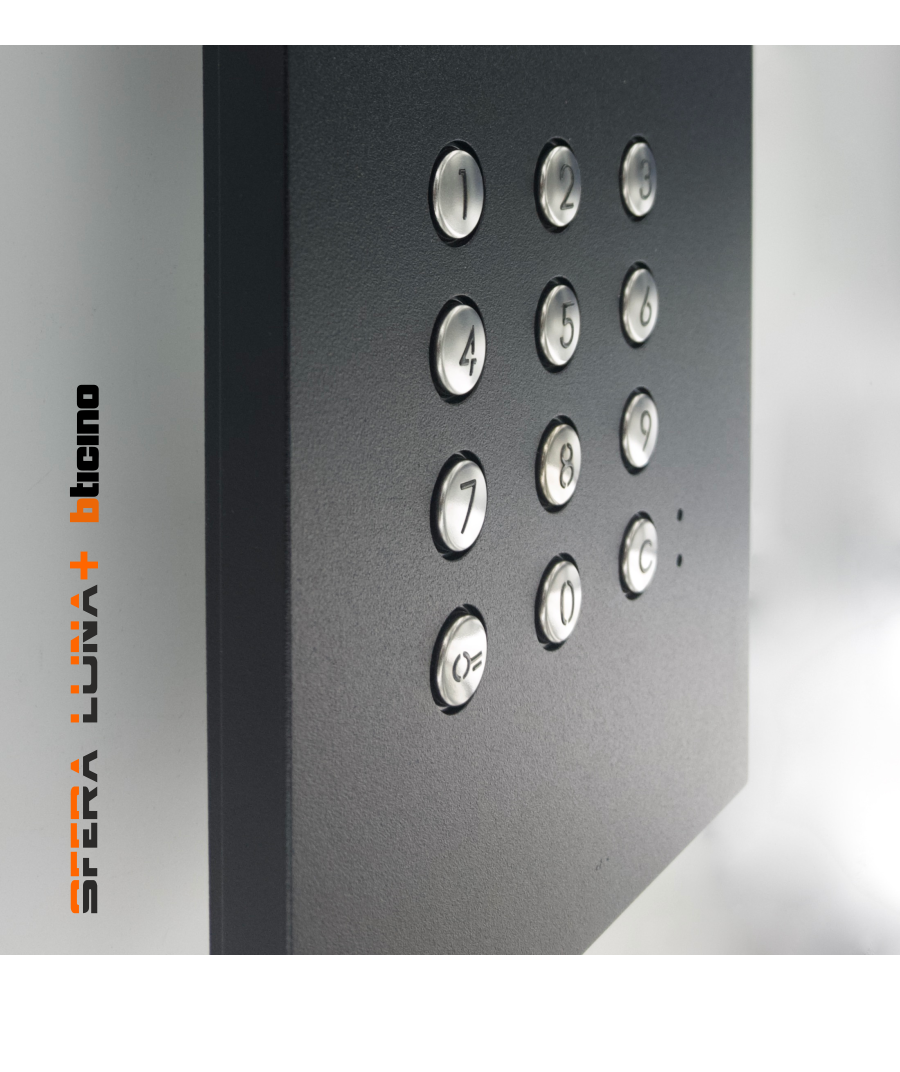

For Biticino wide angle audio/video 351500 viewing angle: horizontal 152°- vertical 96°  & keypad 353000 led illuminated

Sleek high-end design at the entrance, vandal resistant ...

Standard colour black, RAL 9005, fine texture. All Ral-colours

The front panels are available in all ral colors, matching the color of your residence or project.

• Made in 10mm aluminium, High End, solid finish.
• Central mounting system front panel. (easy blind mounting)
• Vandalism resistant. (IP54 - IK08)

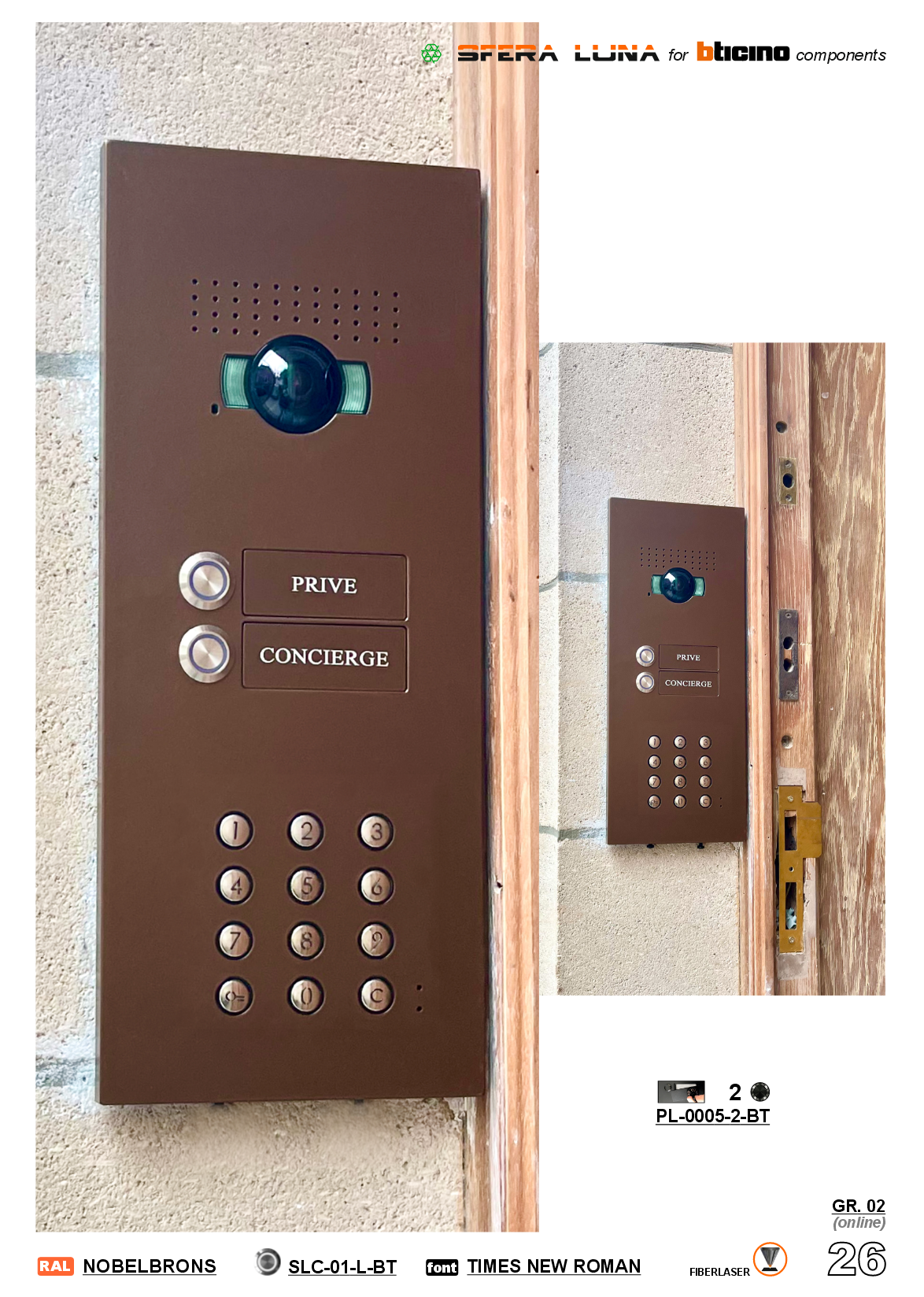

• Installation possibilities: on walls, gates, columns, mailboxes, etc ...
• Easy installation in narrow surroundings.

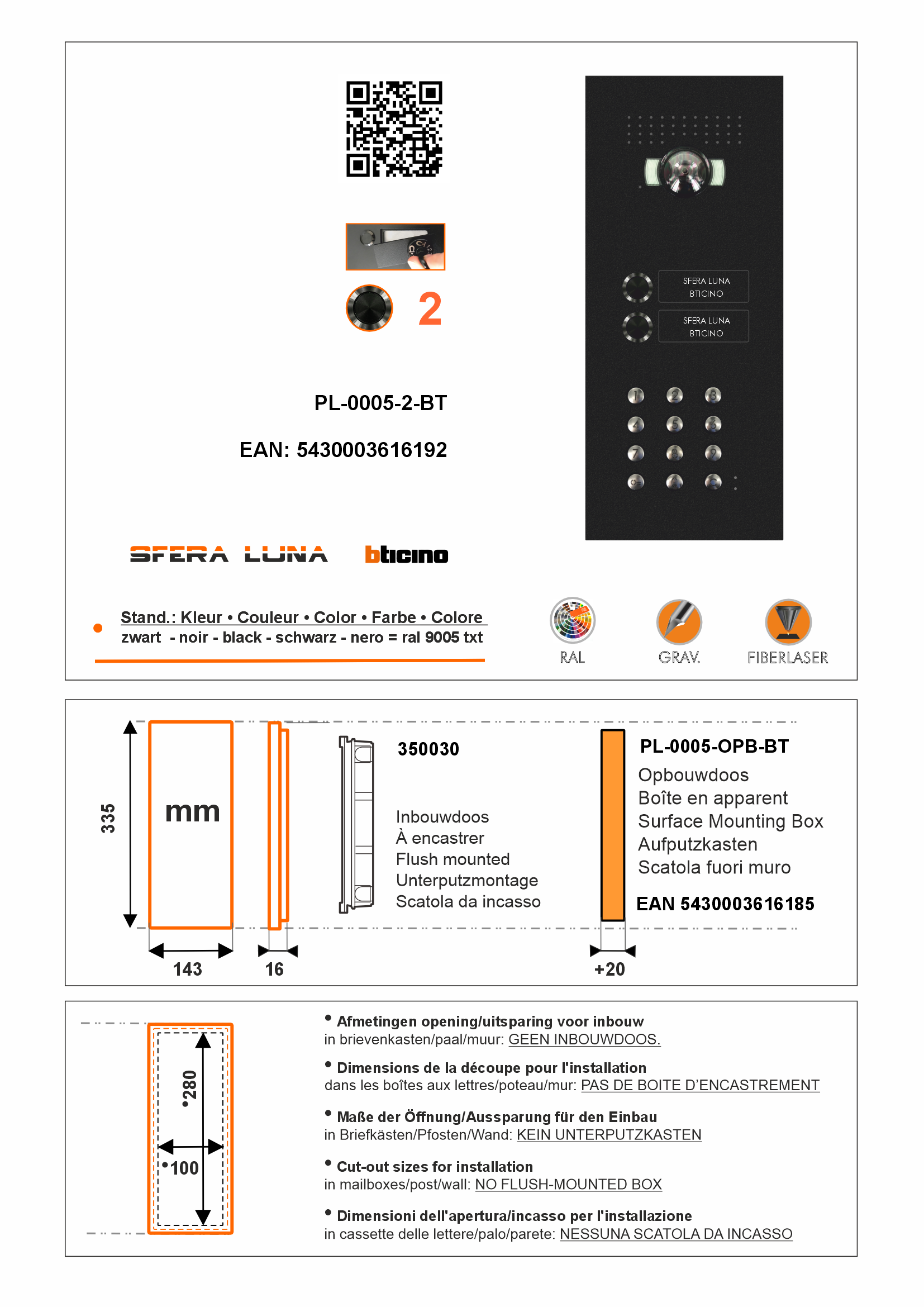

• Model flush mounting on standard box Bticino 350030
• Removable name tag(s), personalised or not.
• The name tags can be personalised when ordering or later.
• Call pushbuttons

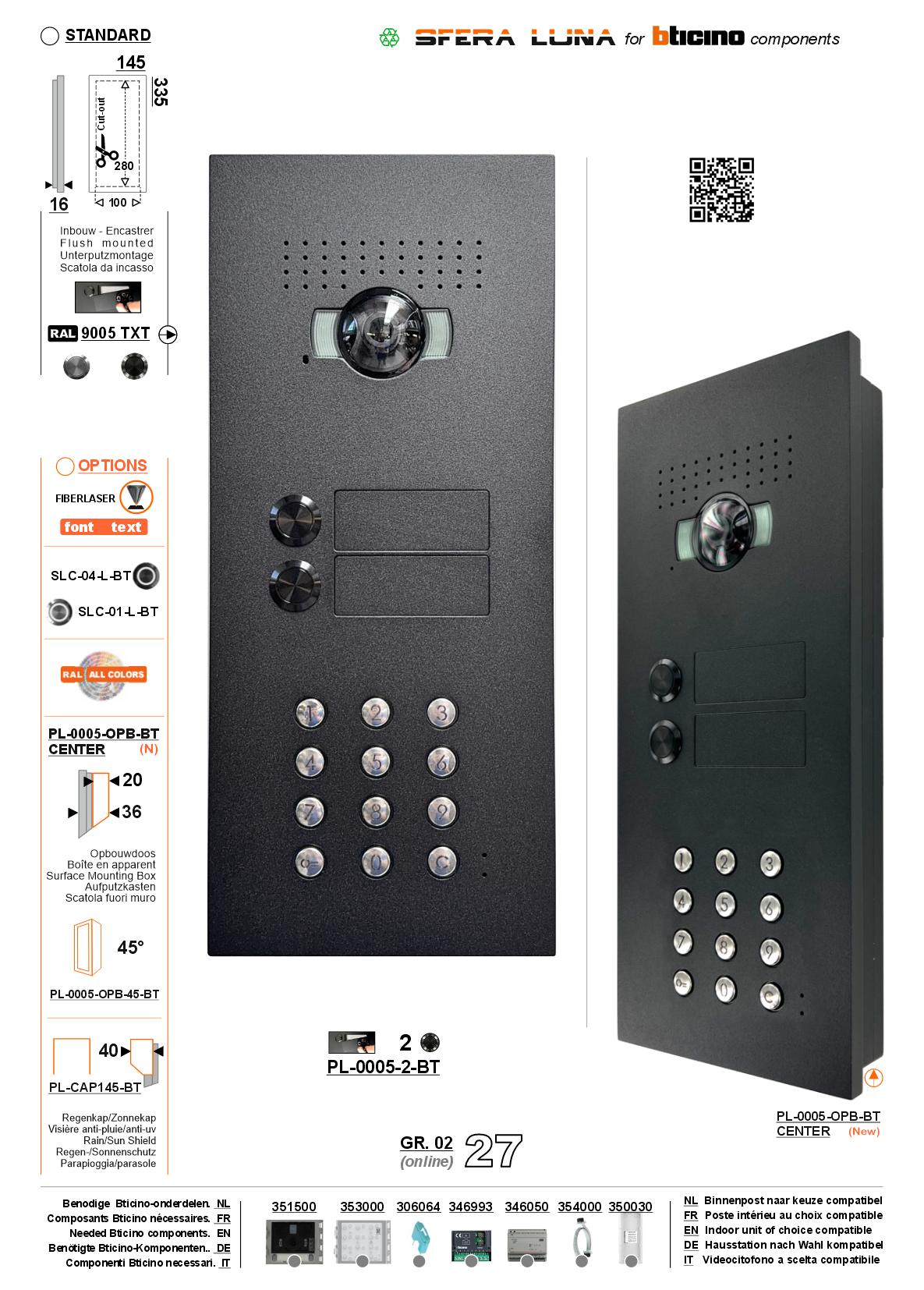

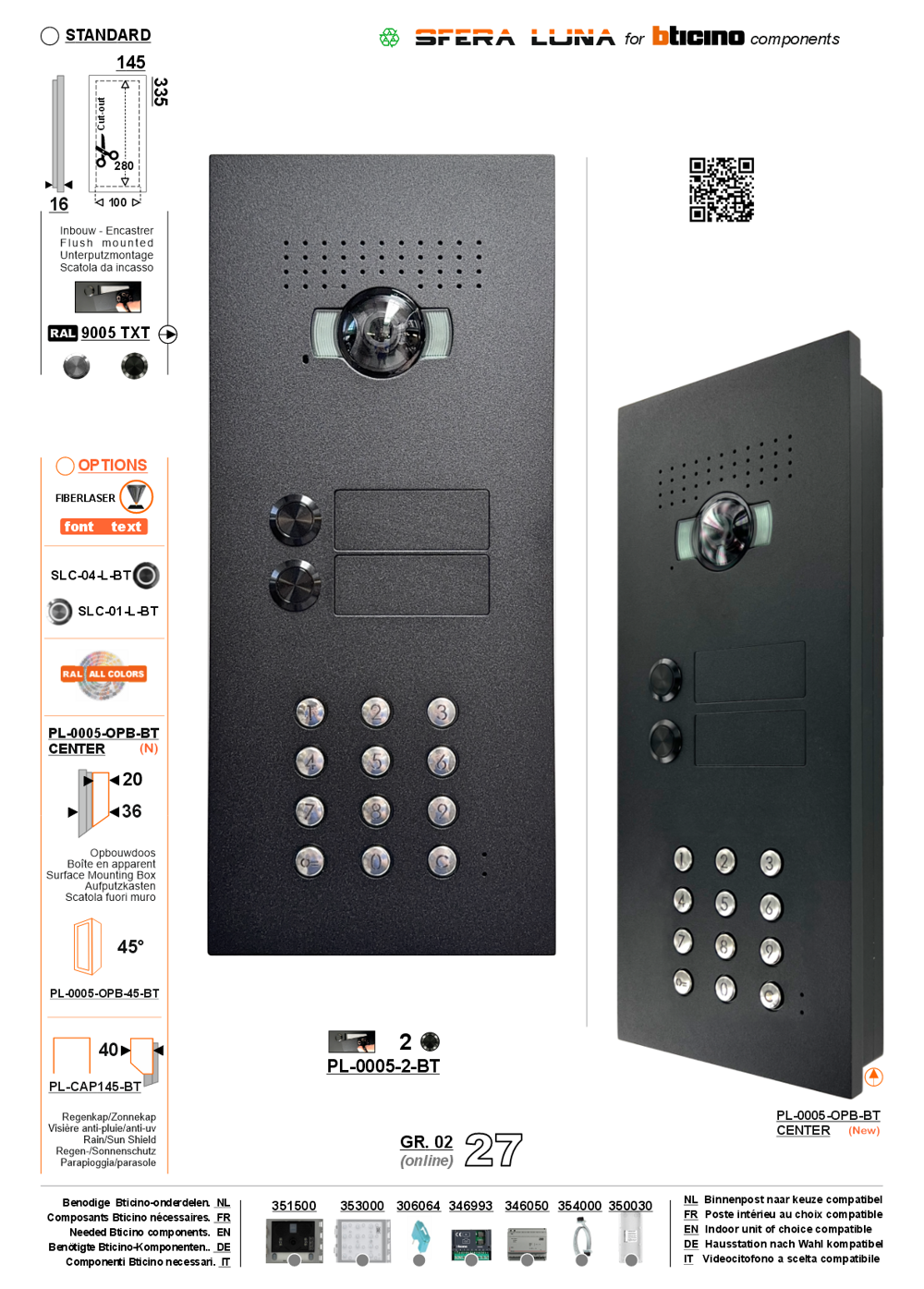

• Also available with surface-mounted module.

Sfera Luna, partner of the Legrand Group (copyright model)

All Ral colours available

Dimensions: width 145mm x height 335mm

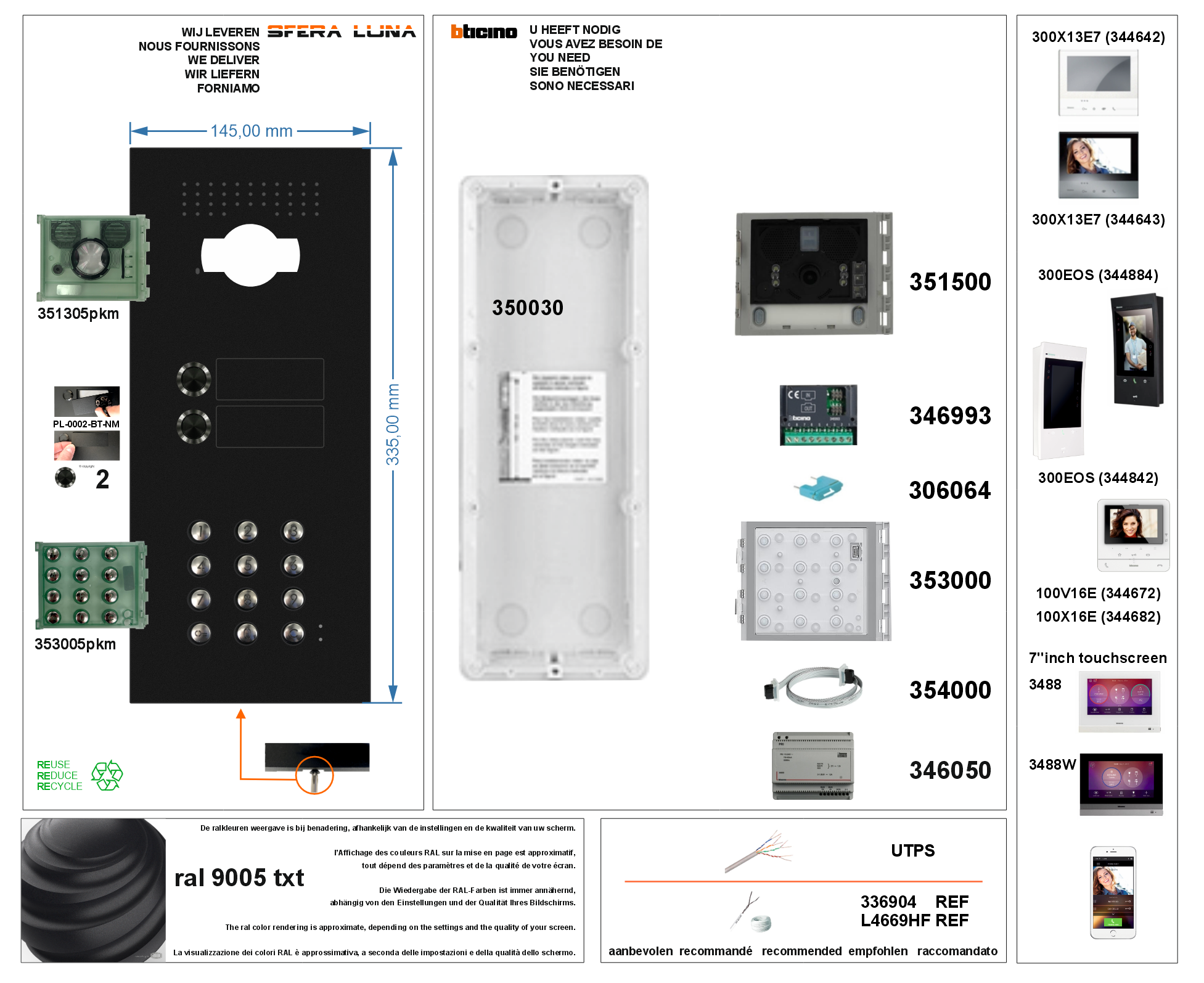

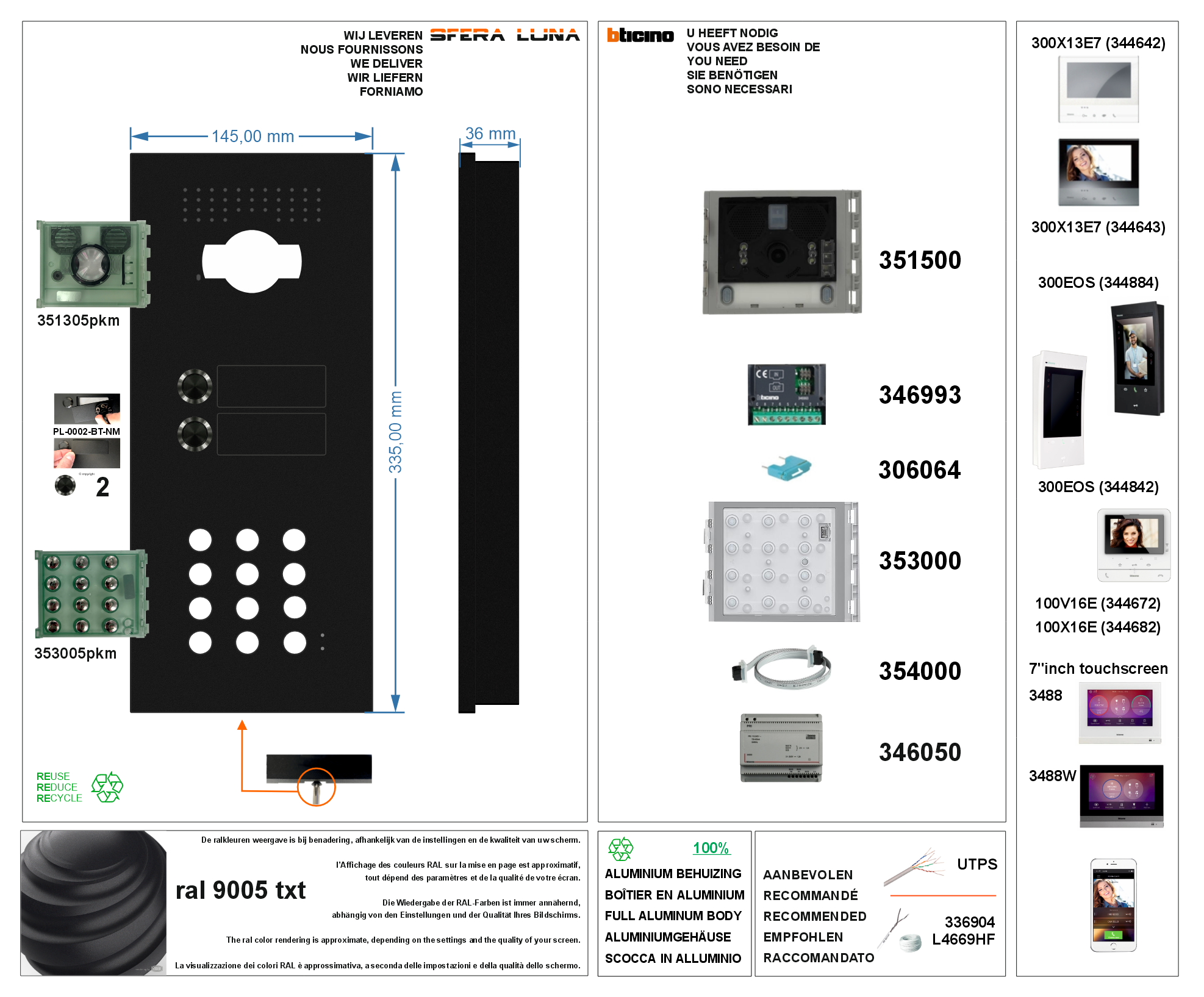

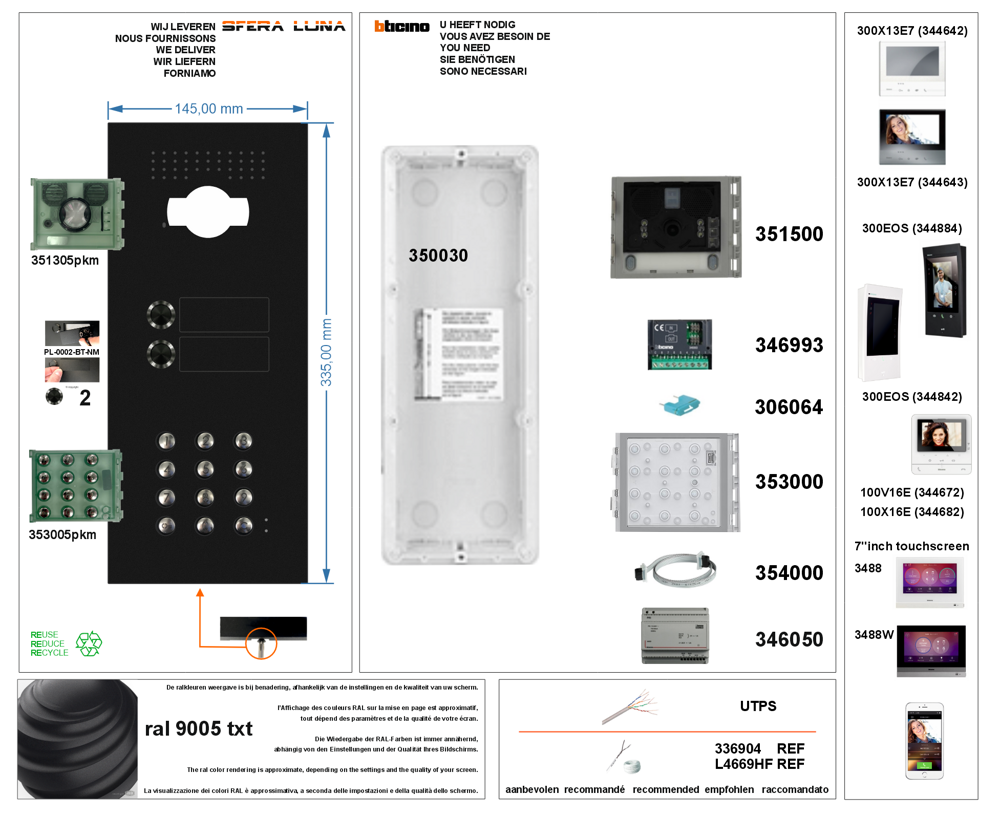

We supply:

1. Front panel entrance in ral colour.  (IP54 - IK08)
2. Modular panel frame + screws for installation on flush-mounting box 350030
3. 351305pkm - plexiglas for module audio/video BTicino
4. 353005pkm - plexi front panel keypad
5. 2 push buttons (integrated) in black stainless steel, stainless steel or led  (IP67 - IK08)
6. 2 interchangeable name tags (IP68)
7. Tool for mounting changeable name tags

You need Bticino:

1. 350030 - Flush-mounting box 3 modules
2. 354000 - Videoparlofonie connection cable 620mm for functional modules
3. 351500 - Audio/video module with wide-angle lens

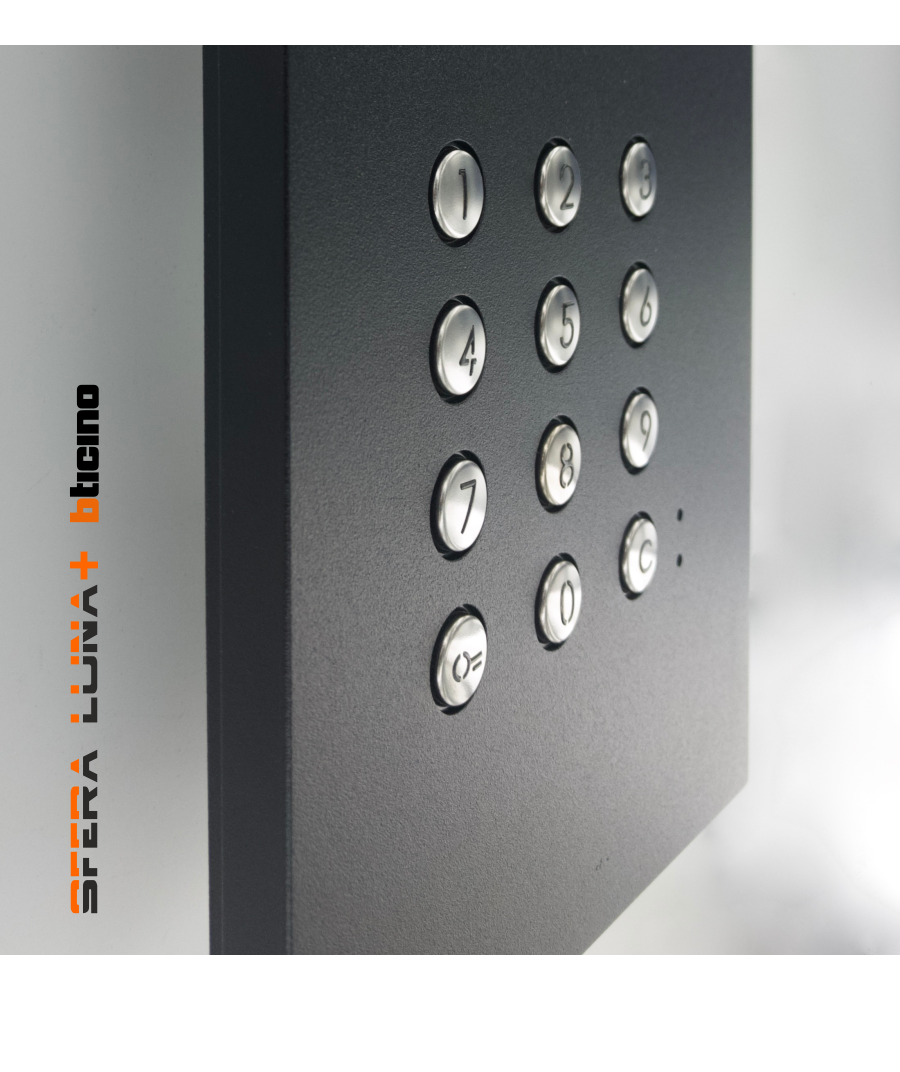

4. 353000 - keypad LED illuminated
5. 346993 - Interface Sfera (up to 8 call buttons possible)
6. 346050 - Power supply
7. 306064 - Config. set
8. Compatible with all Bticino indoor units

    These Bticino components are available :

via the wholesaler
via your installer/electrician  https://www.bticino.be/nl/professionals/bt-certified-expert
via stores https://www.bticino.be/nl/stores

 your personal videophone with our editor order form.

• Combine your combination(s) into an original concept!
• Real time display. The rendering will always be optimized by our typographer / graphic artist.
• The order form is already preset and indicated in blue like the photo shown in our webshop.

  Aluminium THE GREEN METAL:

Aluminum can be recycled almost infinitely without loosing its unique properties. In remelting it is not only reclaimed metal, but by definition, 95% of energy is saved. The ore is very easy to exploit: it is just excavated to the surface. After just fifteen years nature has recovered.

Our exclusive products are produced in certified high quality materials. A combination of state of the art machinery and handcrafted finishes.

Designed & (hand) made in Belgium

Sfera Luna (partner of the Legrand Group), copyright model.
