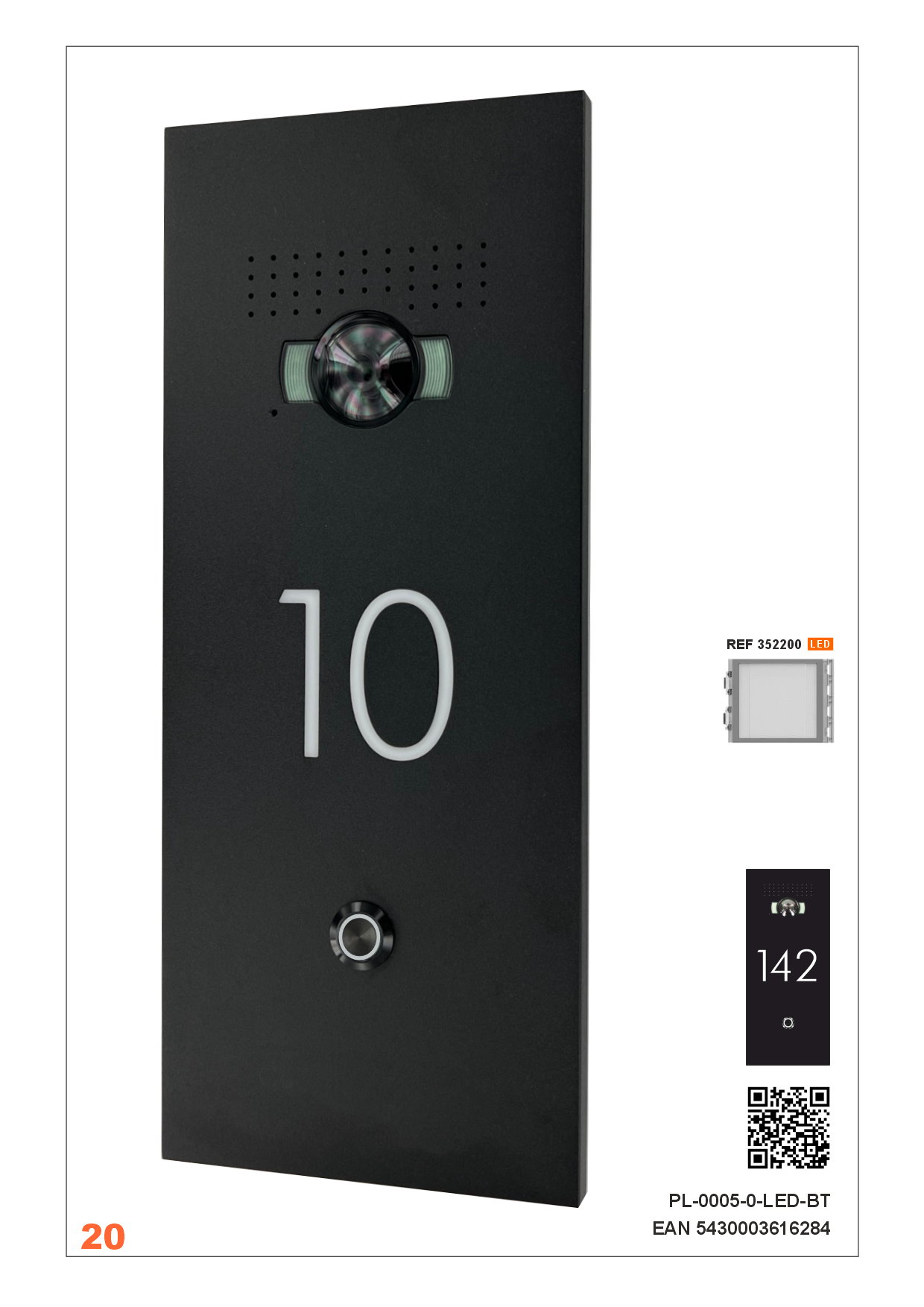

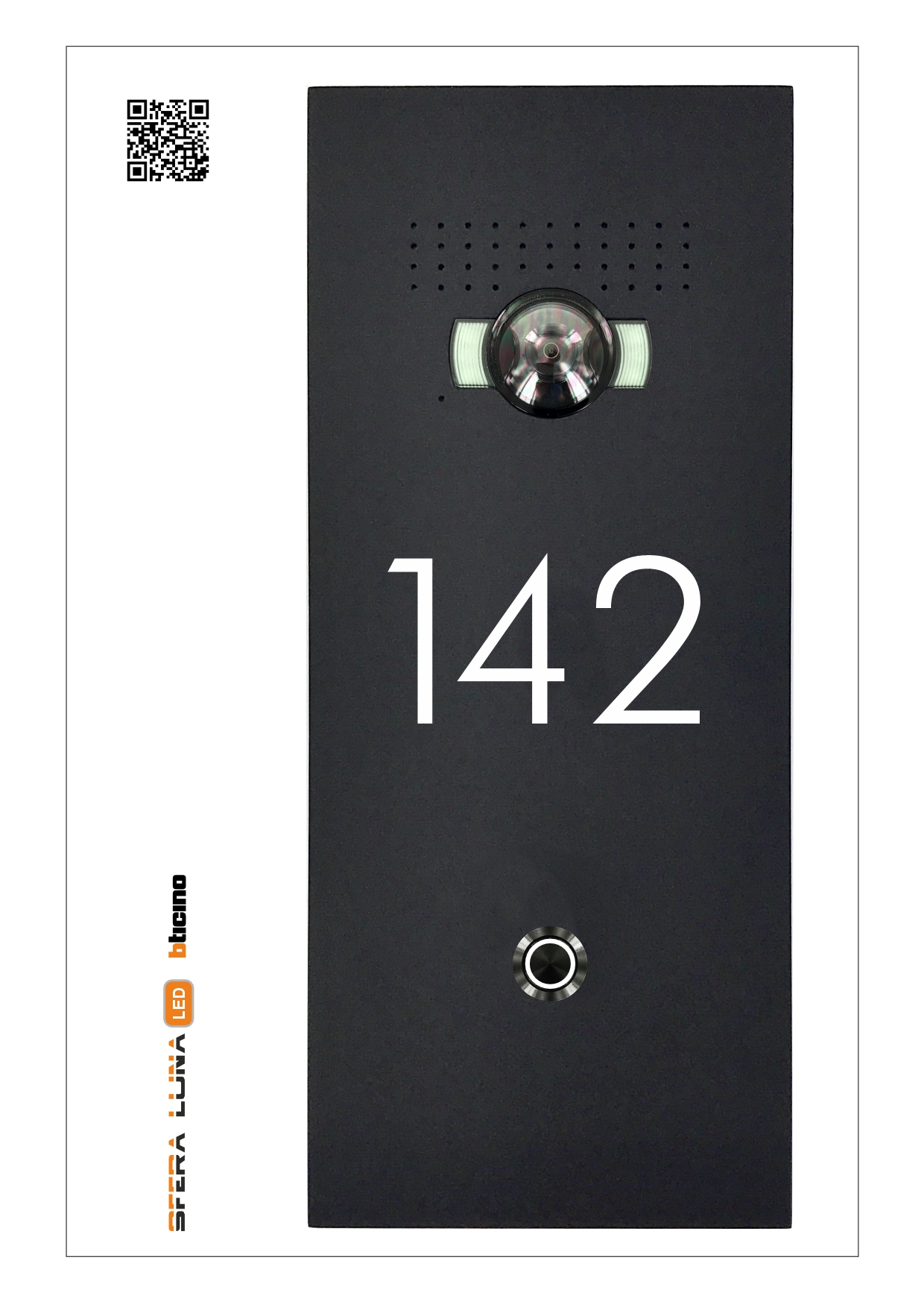

SFERA LUNA+ LED House Number Video Parlofonie High-End Bticino

• Videophone front entry panel Sfera Luna+ with HOUSE NUMBER LED LIT for Biticino wide angle audio/video 351500 viewing angle: horizontal 152°- vertical 96°

  ---




• The LED illuminated house number is backlit, using the Bticino module 352200.

  ---




• A sleek and unique high-end design led lit at the entrance of your residence / apartment ...

  ---




• Front panels are available in all ral colors, machting the color of your residence or project.

• Made in 10mm aluminium, High End, solid finish.
• Central mounting system front panel. (easy blind mounting)
• Vandalism resistant.
• Installation possibilities: on walls, gates, columns, mailboxes, etc ...
• Easy installation in narrow surroundings.
• Unique recessed system for recessed gates, poles, etc. .....

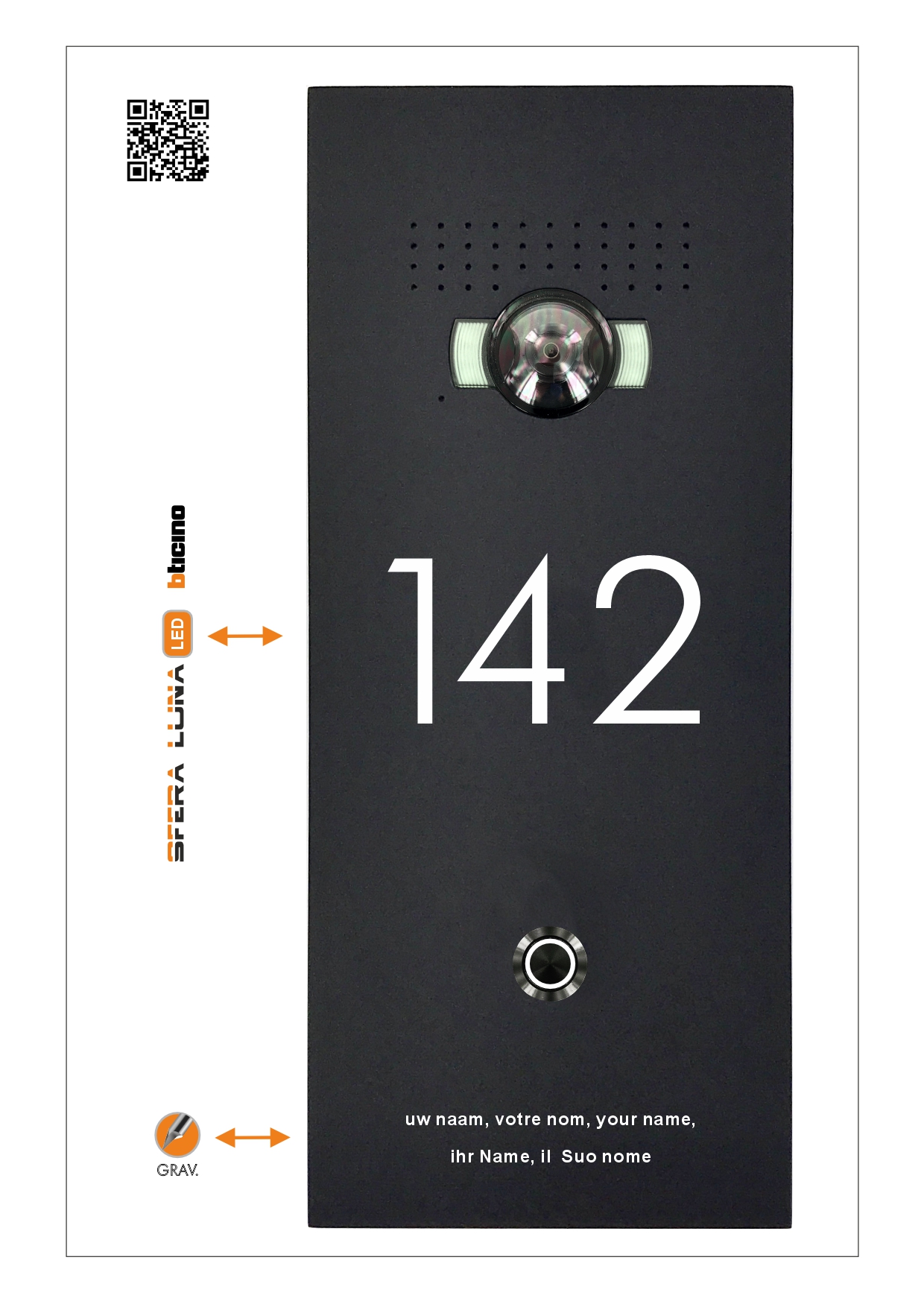

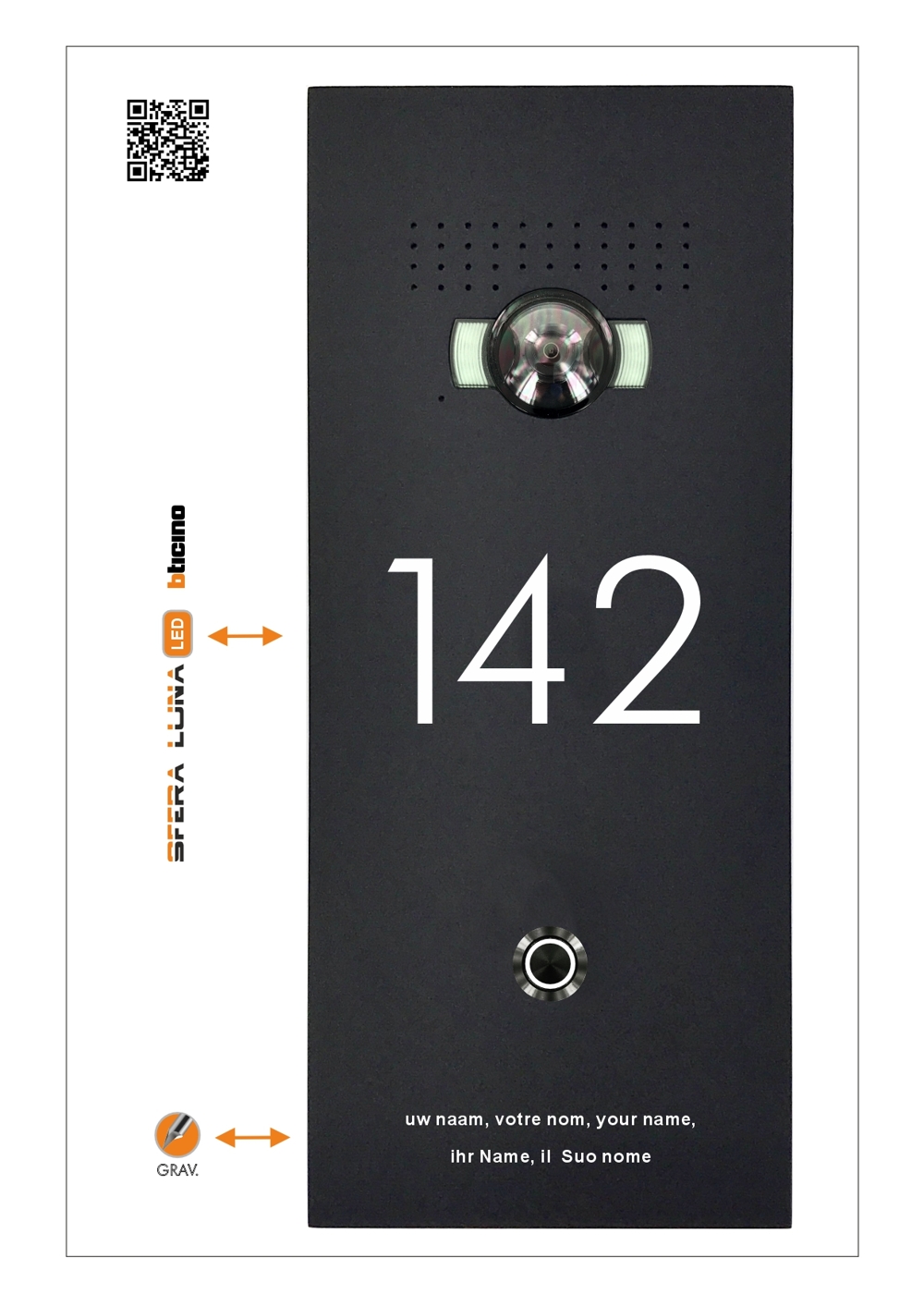

• Removable front name plates, personalised or not.
• 1 or 2 call buttons : see photos with possibilities
• Model flush mounting on standard box Bticino 350030
• Also available with surface-mounted module.

Sfera Luna (partner of the Legrand Group & BTcino, copyright model.

All Ral colours available

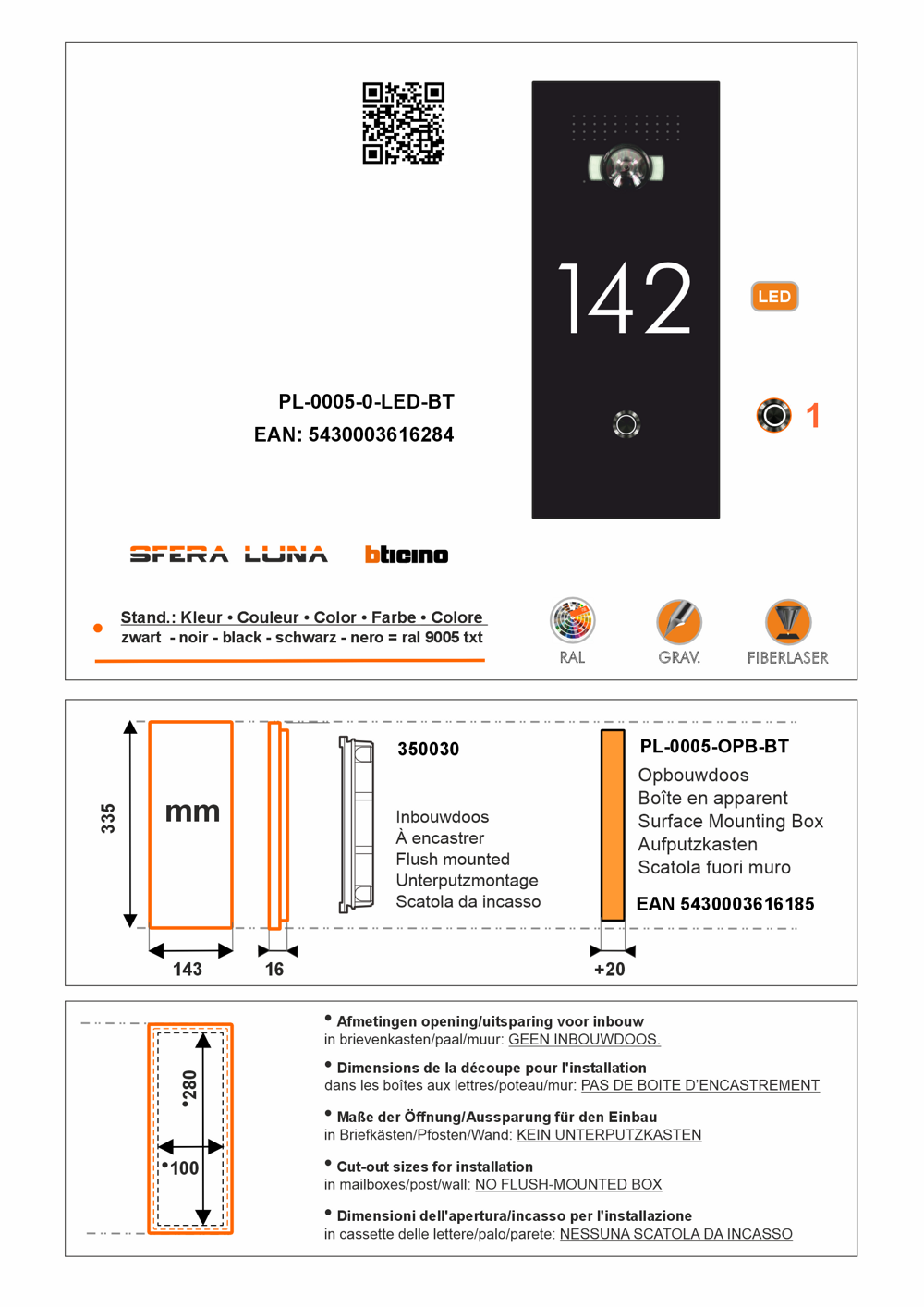

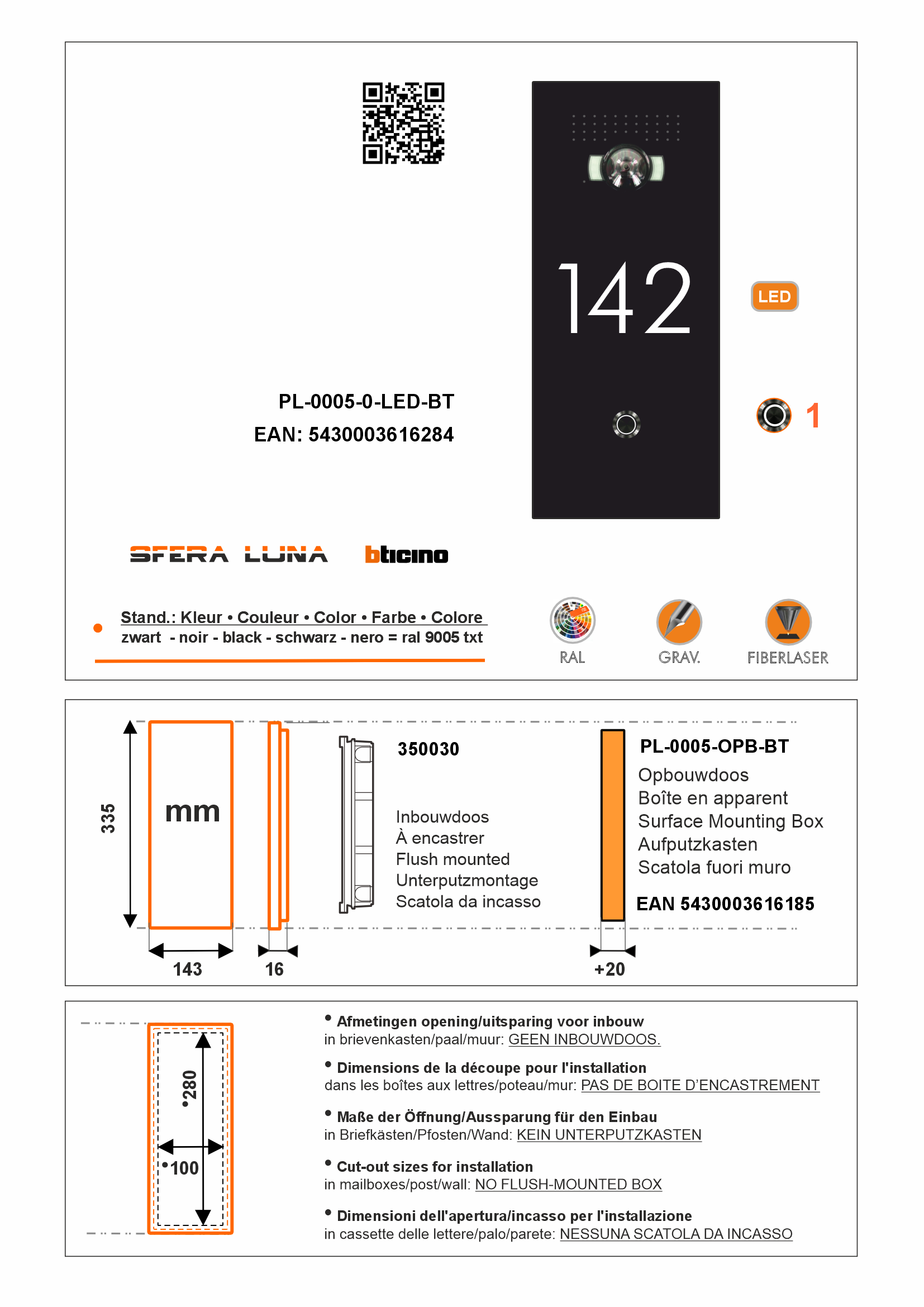

Dimensions: width 143mm x height 335mm

We supply:

1. Front panel entrance in ral colour.
2. Modular panel frame for installation on flush-mounting box 350030
3. 351305pkm - plexiglas for Audio/video module BTicino
4. Personalised with LED illuminated house number via module 352200AVT.
5. 1 or 2 push buttons black stainless steel, stainless steel or led
6. 0, 1 or 2 interchangeable name tags

You need Bticino:

1. 350030 - flush-mounting box 3 modules
2. 351500 - Audio/video module with wide-angle lens
3. 352200 - LED illuminated module ( Info module)
4. 346993 - Interface Sfera
5. 346050 - Power supply
6. Compatible with all Bticino Indoor units
7. Preferably use REF 336904 twisted cable or UTPS for the connection

 Create your personal videophone with our editor order form.

• Combine your combination(s) into an original concept!
• Real time display. The rendering will always be optimized by our typographer / graphic artist.
• The order form is already preset and indicated in blue like the photo shown in our webshop.

  Aluminium THE GREEN METAL:

Aluminum can be recycled almost infinitely without loosing its unique properties. In remelting it is not only reclaimed metal, but by definition, 95% of energy is saved. The ore is very easy to exploit: it is just excavated to the surface. After just fifteen years nature has recovered.

Our exclusive products are produced in certified high quality materials. A combination of state of the art machinery and handcrafted finishes.

Sfera Luna (partner of the Legrand Group), copyright model.
