SFERA LUNA+5 Call Buttons Video Parlofonie High-End Bticino (350030)
Product Code : PL-0005-5-BT- EAN: 5430003616062

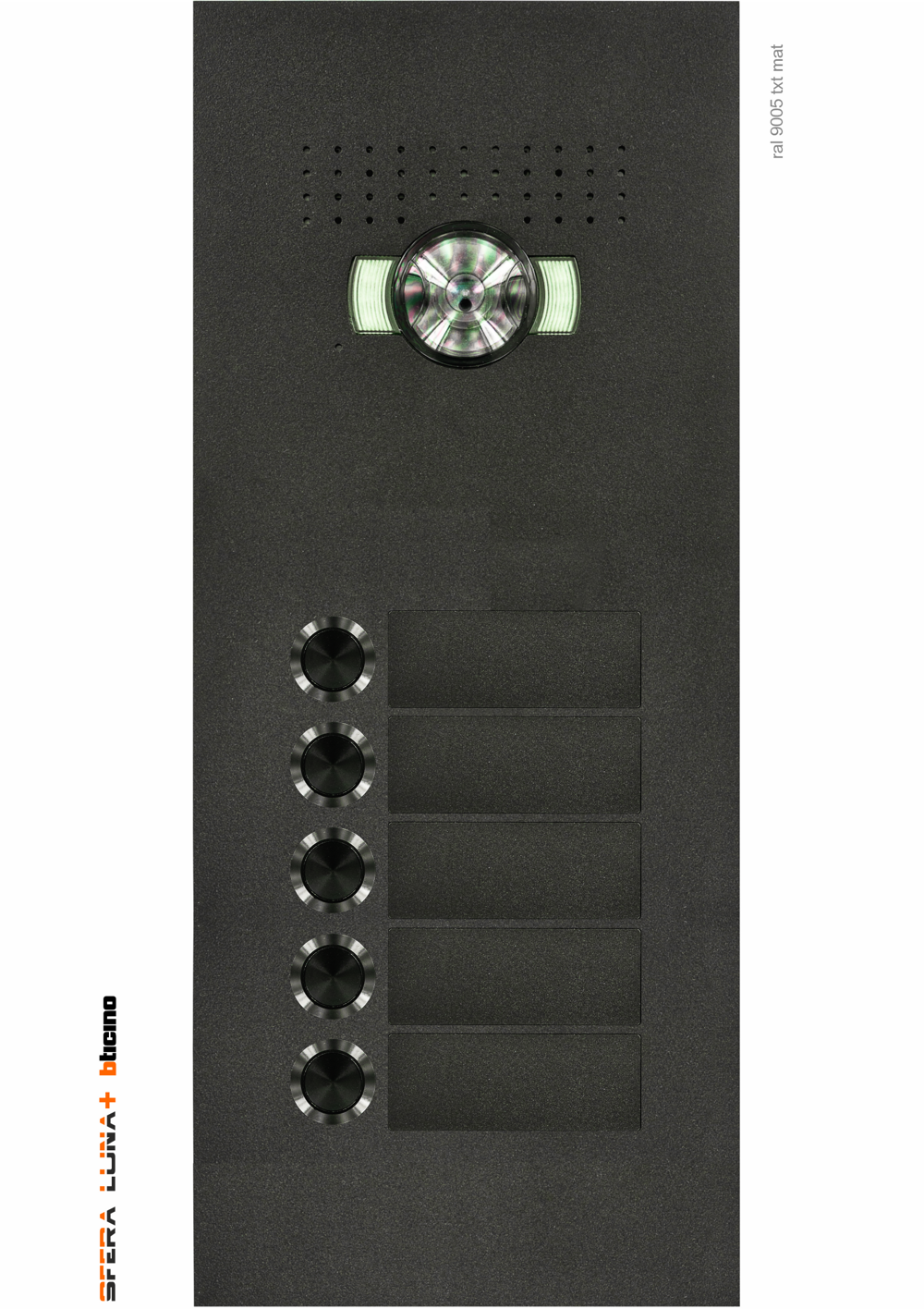

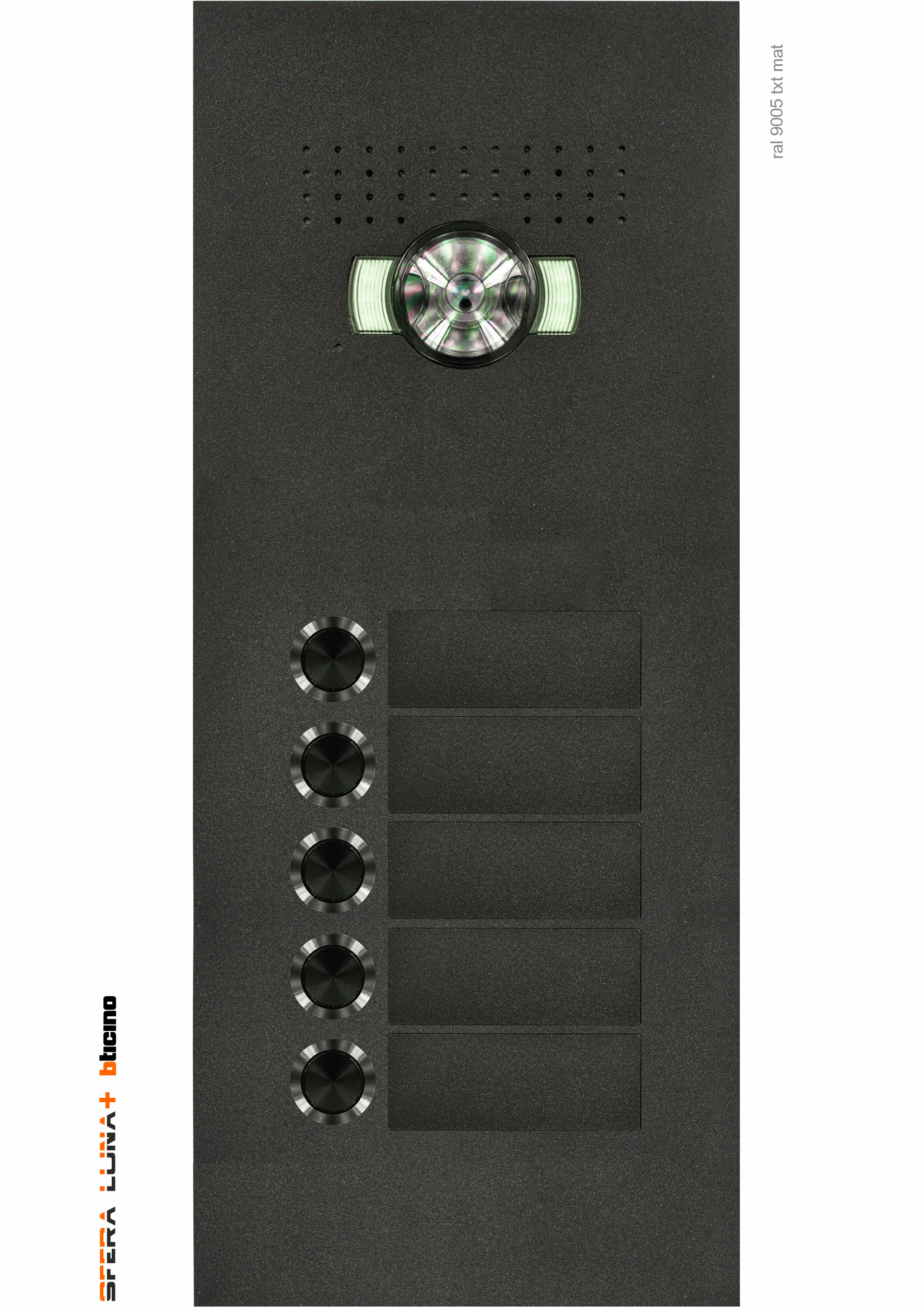

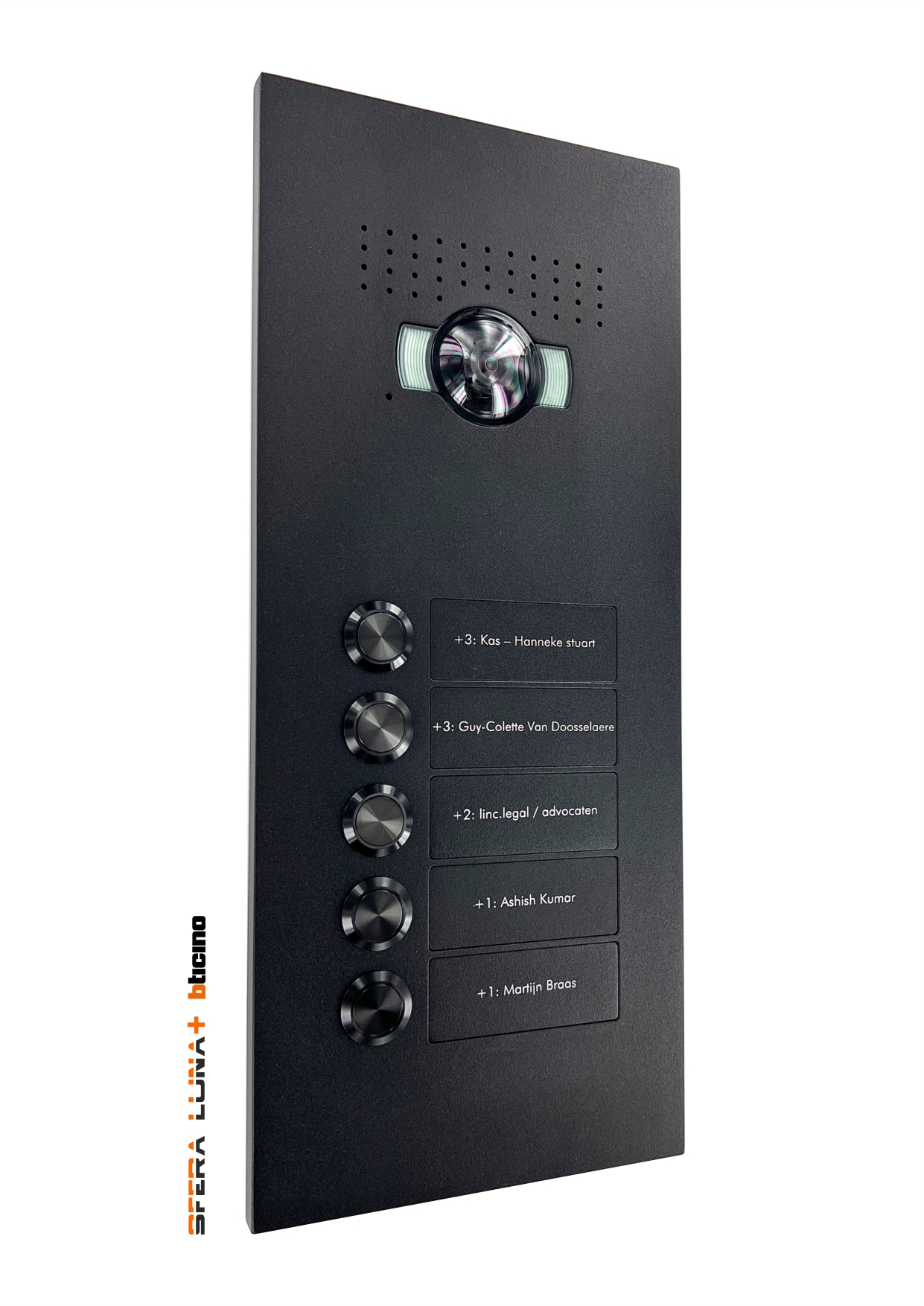

- Videophone front entry panel SFERA LUNA+5 for Biticino wide angle audio/video 351300.
- Sleek high-end design at the entrance of your residence / apartment ...
- A five way call button system, vandal resistan
Standard installation on Bticino 350030 flush-mounted box.
The front panels are available in all ral colors, matching the color of your residence or project
- 5 doorbell buttons

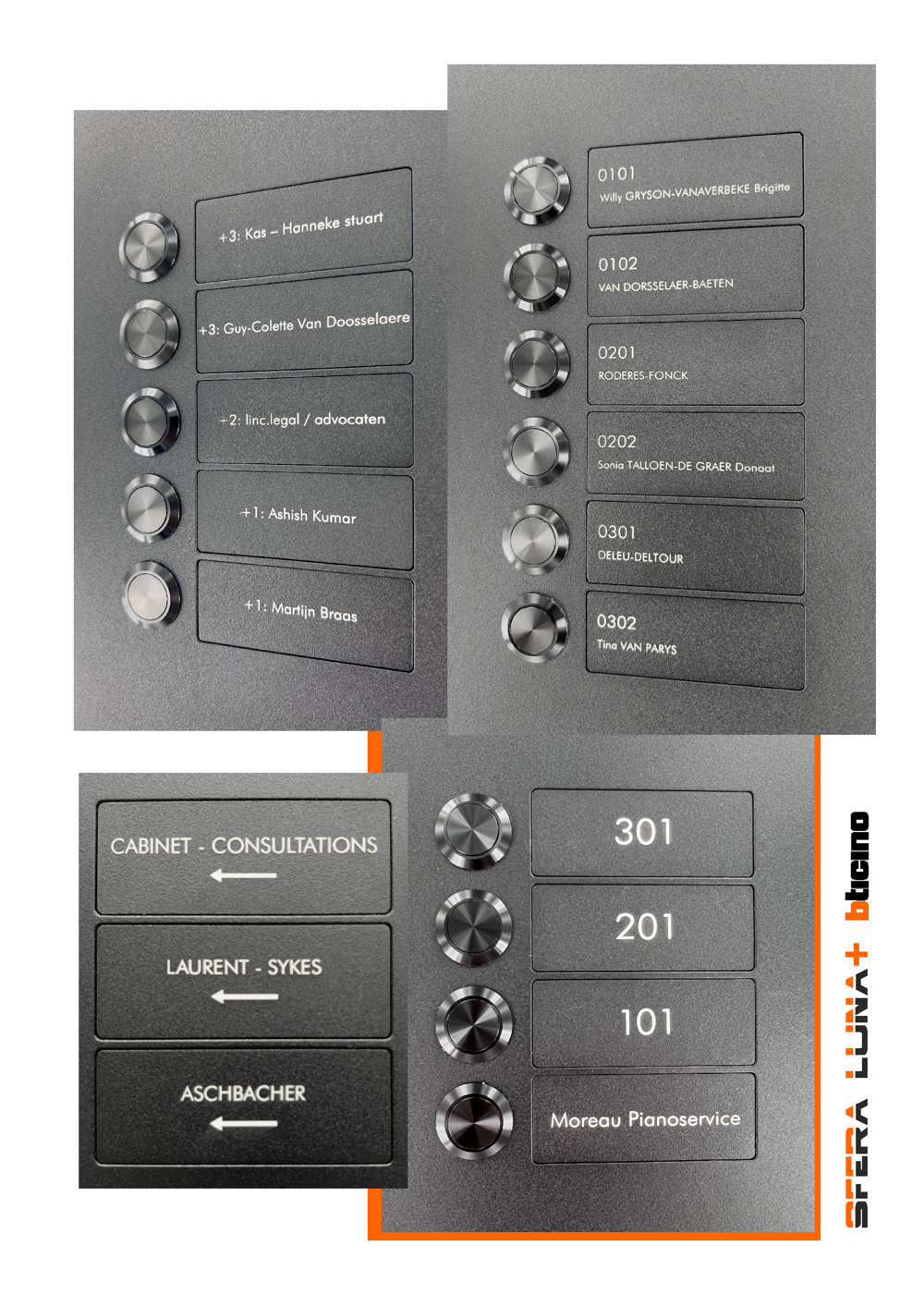

- 5 interchangeable name tags, easy mounting with unique invisible mounting system
- Produced in 10mm aluminium, High End, Solid finishing.
- Central mounting system front panel. (Simple blind mounting)
- Vandalism resistant.
- Installation possibilities: on walls, gates, poles, mailboxes, etc ...
- Installation possibilities in mailboxes ... .
- Removable nameplate can be personalized or not.
- Easy installation in narrow environments
- Unique flush-mounting system for recessed gates, poles, etc. .....
- Model flush mounted on standard box Bticino 350030
- Positionable with oblong holes.
- Also available with surface-mounted module.
All Ral colours available

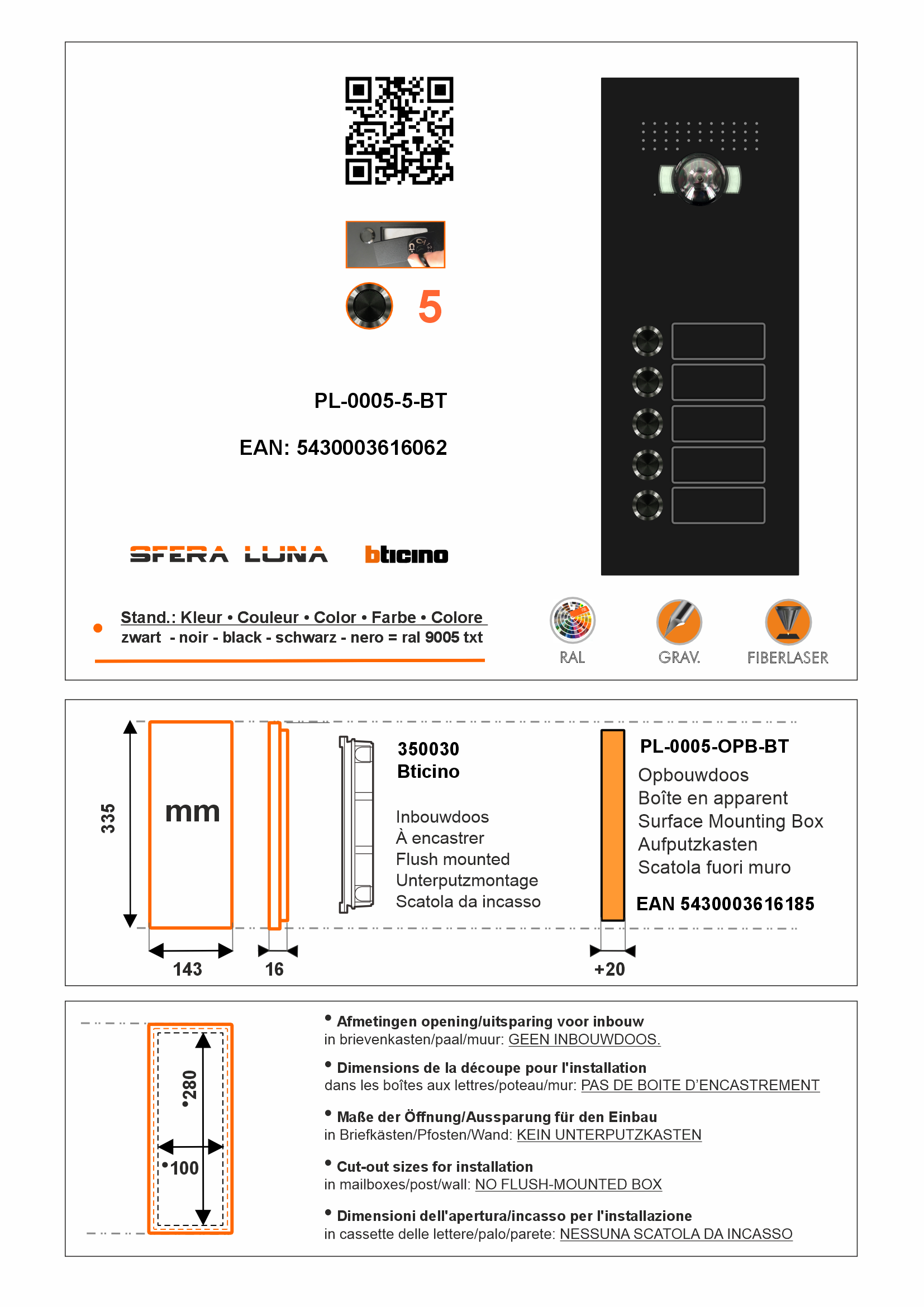

Dimensions : width 143mm x height 335mm
We supply :
- Front panel entrance in ral color.
- Modular panel frame + screws for installation on flush-mounting box 350030
- 351305pkm - plexiglas for module 351300
- 354000 Videoparlofonie connection cable for functional modules

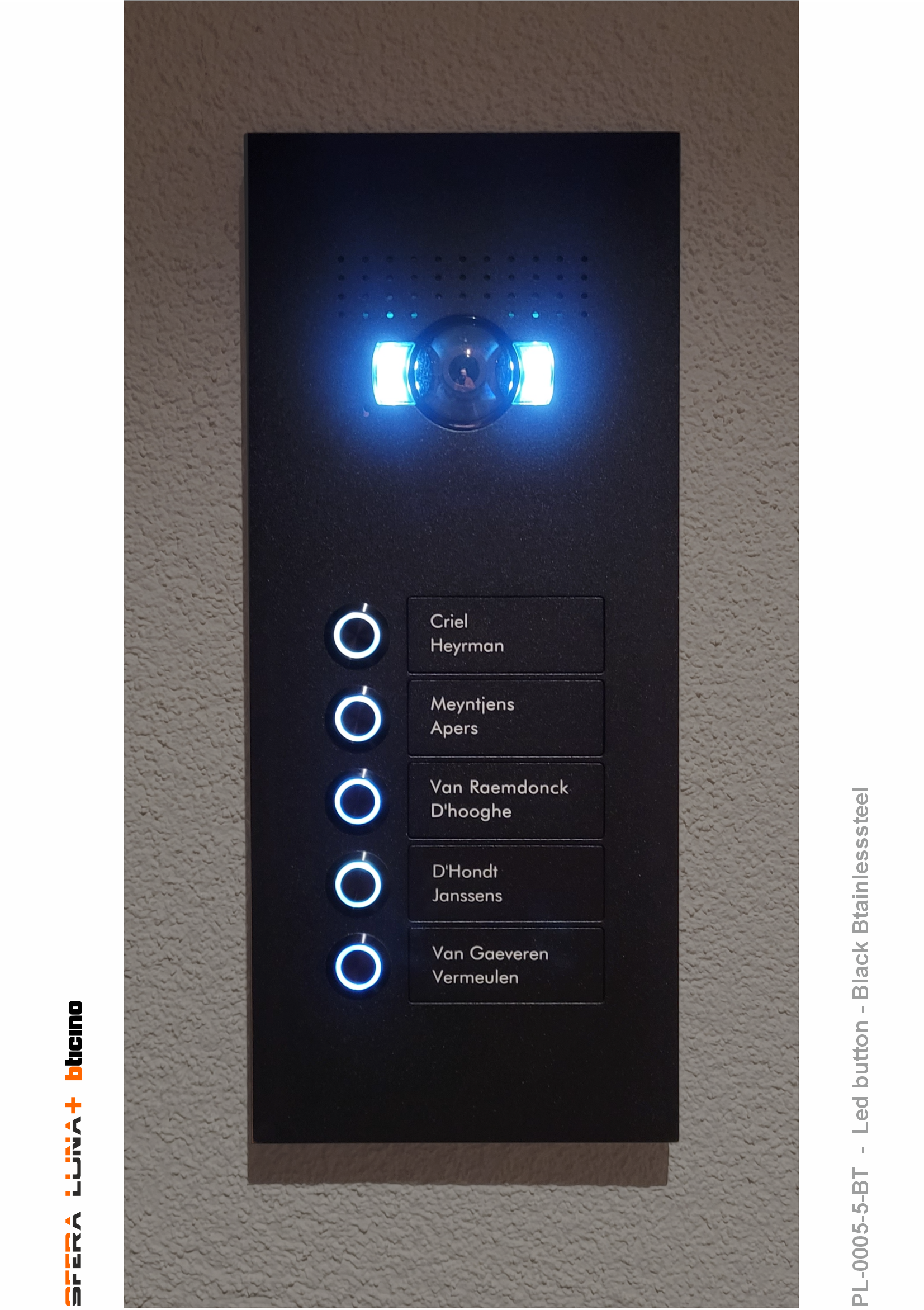

- 5 pushbuttons (integrated) black stainless steel, stainless steel or led
- 5 interchangeable name tags
- Tool for mounting interchangeable name tags
You need Bticino :
- 350030 - Flush-mounting box 3 modules
- 351300 - Audio/video module with wide-angle lens
- 346993 - Interface Sfera (up to 8 call buttons possible)
- 346050 - Power supply
- 306064 - Config. Set
- Preferably use REF 336904 twisted cable for the connection
- Compatible with all Bticino indoor units: Class 100X16E (344682) or AVT-Class 300 X13E7 wifi-3/4G (344642) or MyHOME_UP 7" Hometouch (3488) or Classe 300EOS (344842)
Aluminium THE GREEN METAL:
Aluminum can be recycled almost infinitely without loosing its unique properties. In remelting it is not only reclaimed metal, but by definition, 95% of energy is saved. The ore is very easy to exploit: it is just excavated to the surface. After just fifteen years nature has recovered.
Sfera Luna (partner of the Legrand Group), copyright model.
