SFERA LUNA3 Call Buttons Video Parlofonie High-End Bticino

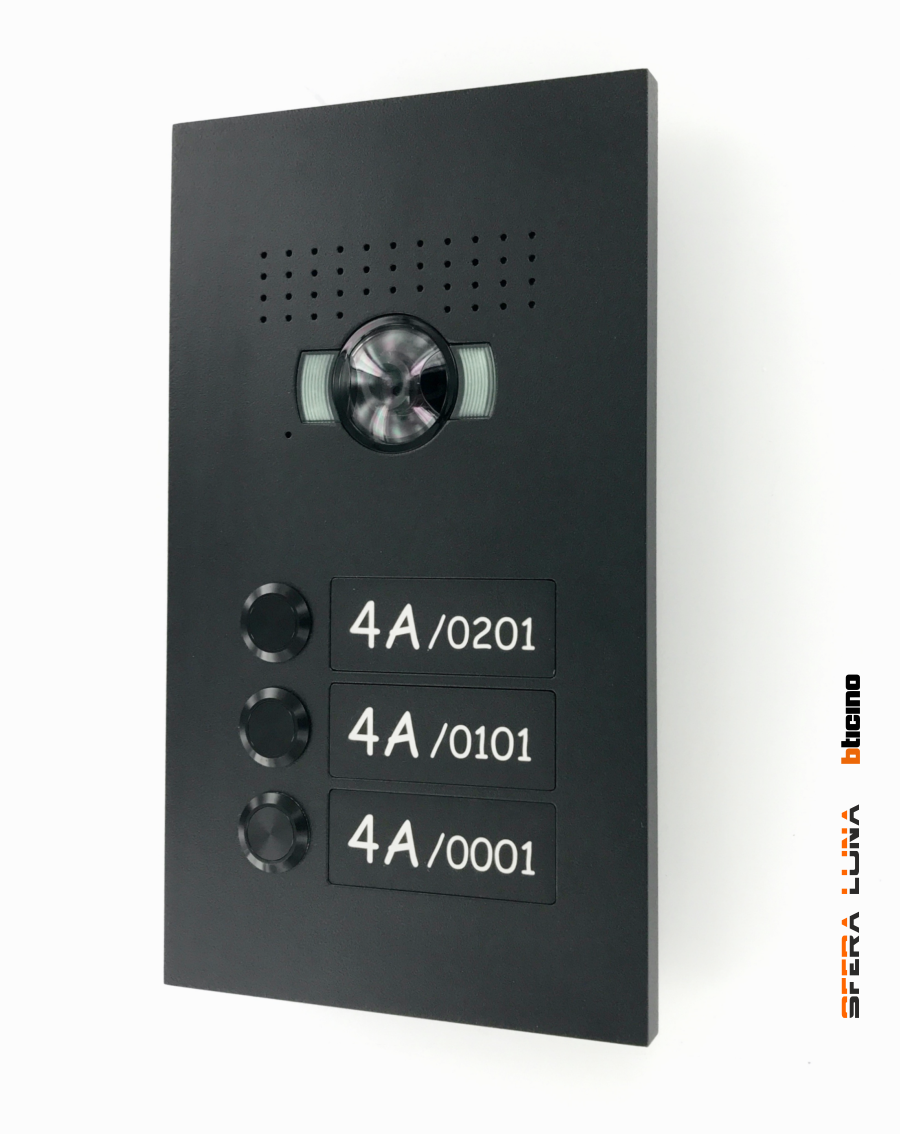

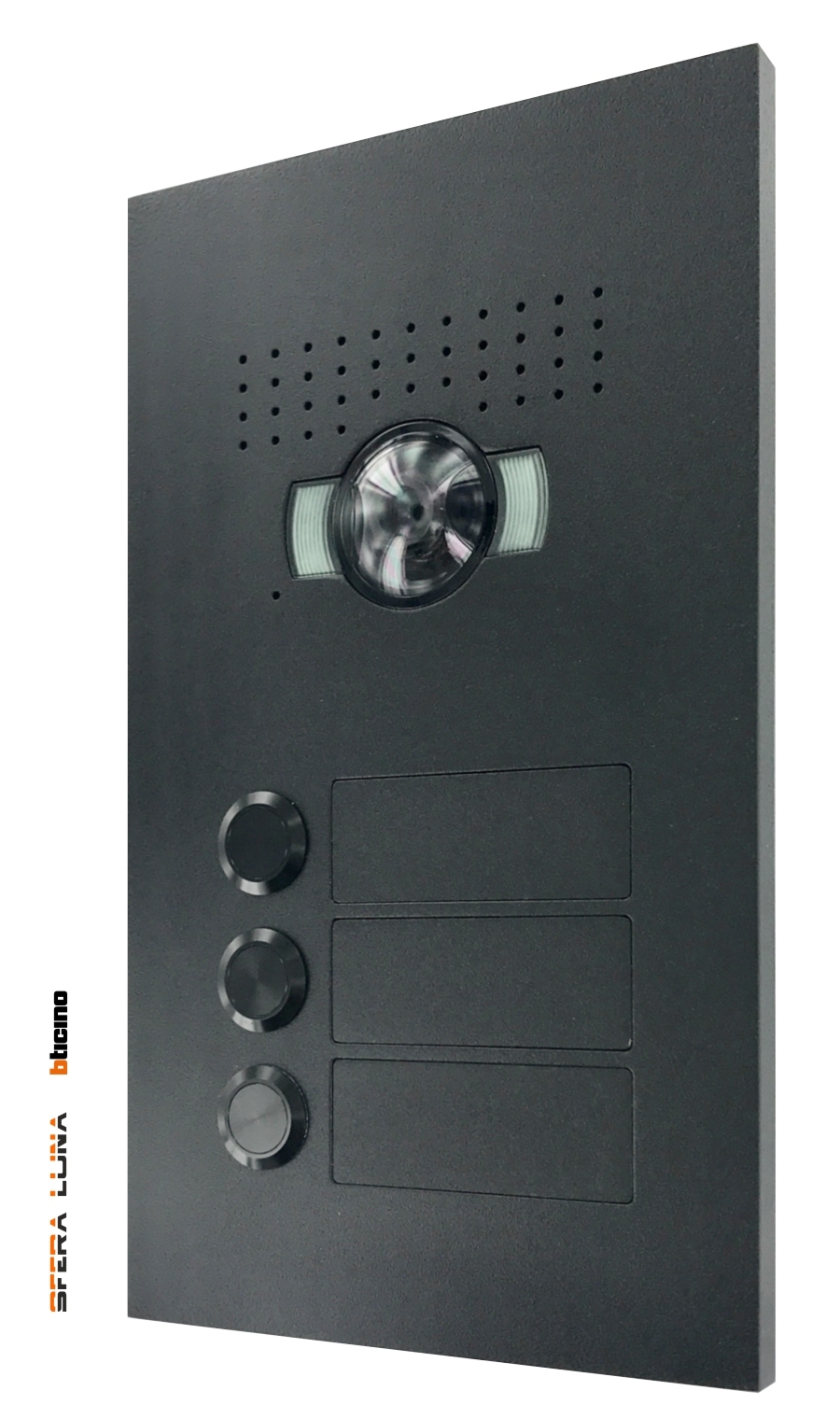

Videophone front entry panel SFERA LUNA3 with 3 replaceable name tags

For Biticino wide angle audio/video 351500 viewing angle: horizontal 152°- vertical 96°

Sleek high-end design at the entrance of your residence / apartment ...

A three way call button system, vandal resistant.

Design front panel as standard in colour black ral 9005 fine texture.

The front panels are available in all ral colors, matching the color of your residence or project.

• 3 call pushbuttons (stainless steel or black or led lighted)

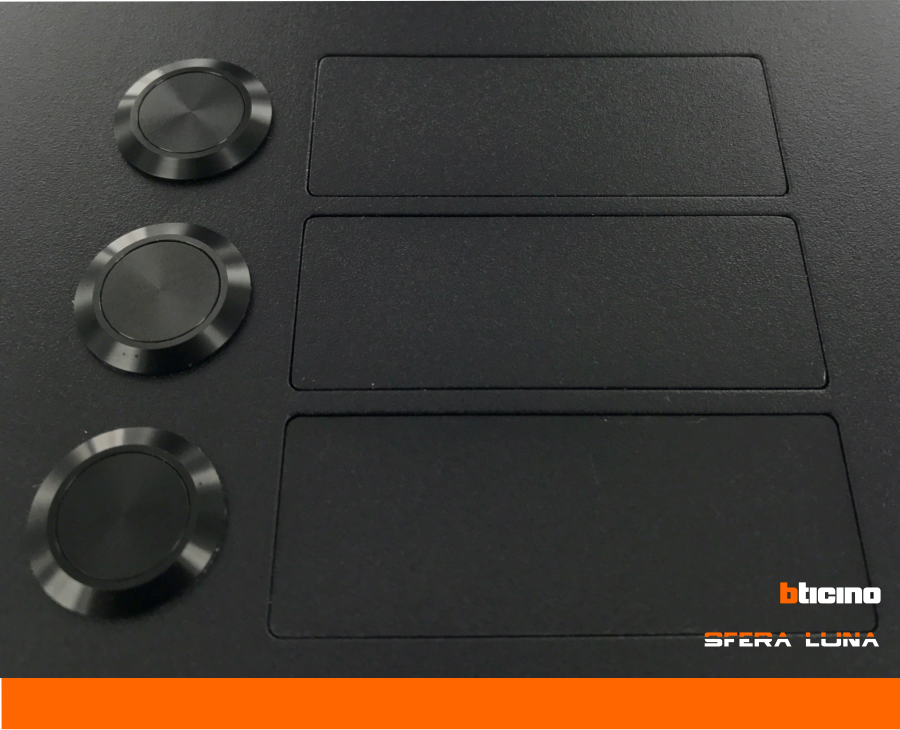

• 3 interchangeable nameplates, easy mounting with unique invisible mounting system
• The removable name tags can be personalized or not, when ordering or later.
• Central mounting system front panel. (Simple blind mounting)
• Vandalism resistant.  (IP54 - IK08)
• Installation possibilities: on walls, gates, poles, mailboxes, etc ...
• Installation possibilities in mailboxes ... .
• Easy installation in narrow environments.
• Flush mounting on standard box Legrand/Bticino 350020 (2 modules)
• Also available with surface-mounted module.

Sfera Luna, partner of the Legrand Group and Bticino(copyright model)

 All Ral colours available

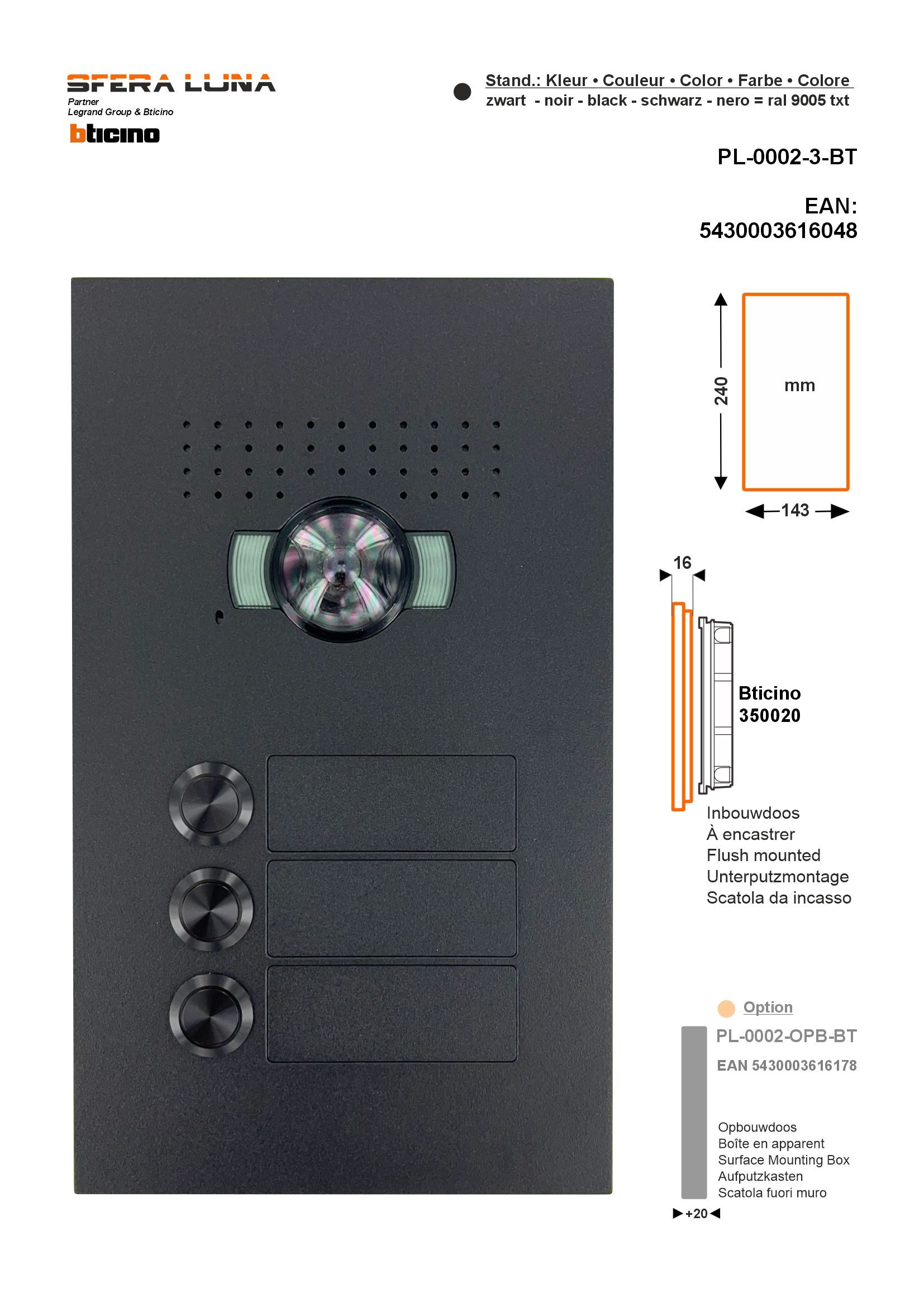

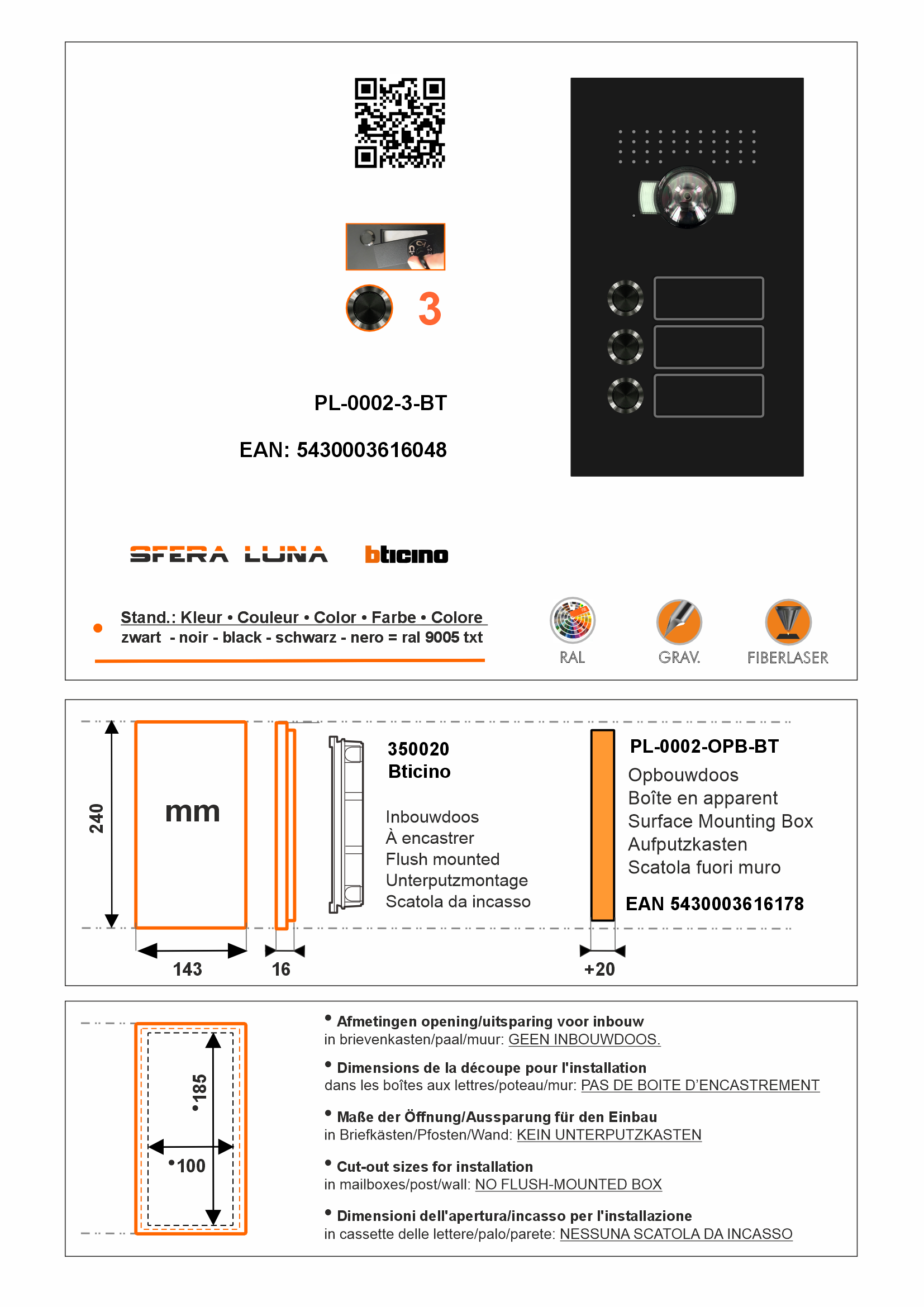

 Dimensions: width 143mm x height 255mm

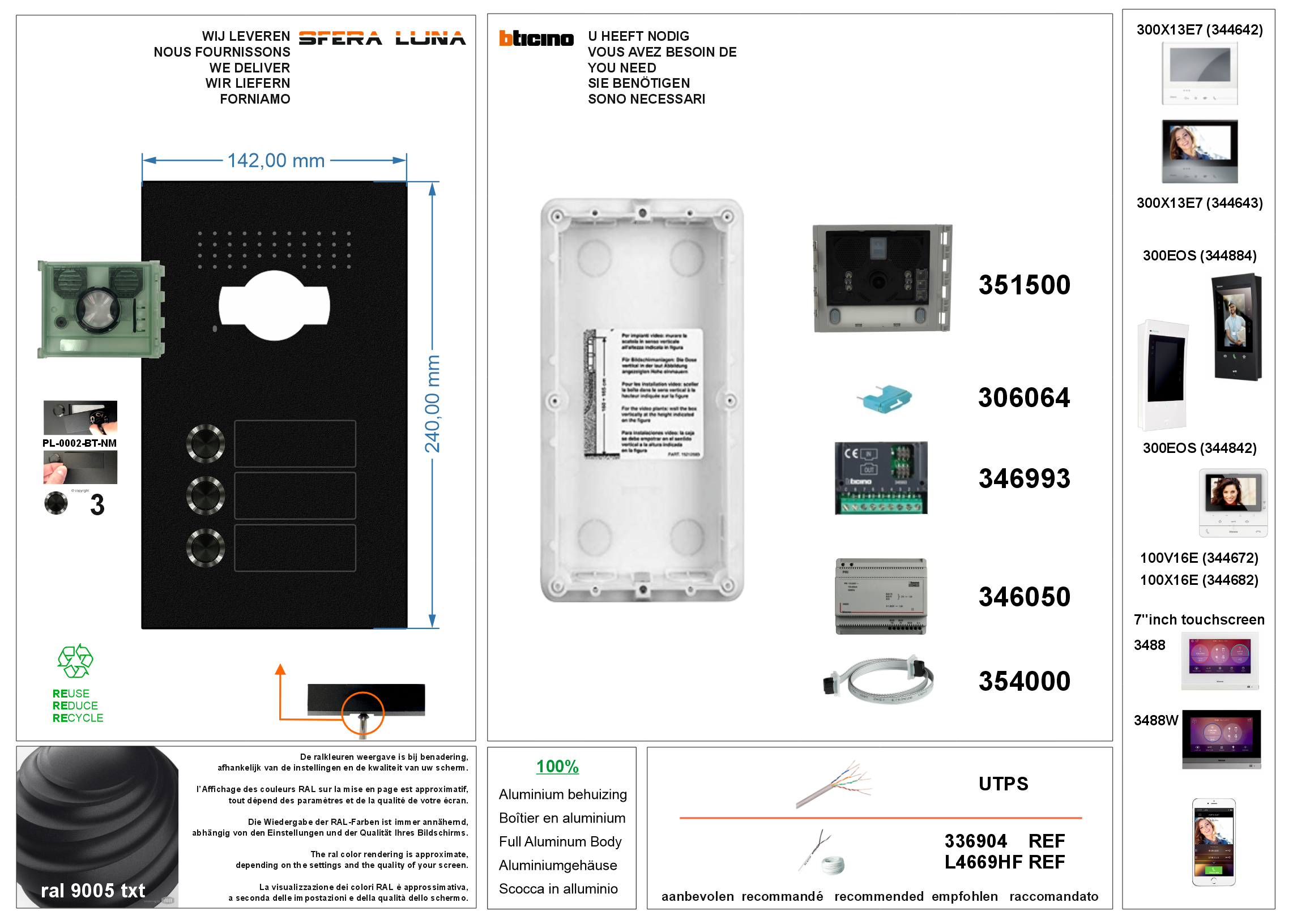

We supply :

1. Front panel entrance in ral color.  (IP54 - IK08)
2. Modular panel frame + screws for installation on flush-mounting box 350020
3. 351305pkm - Plexiglas for module 351300 = 351500
4. 3 pushbuttons black stainless steel, stainless steel or led
5. 3 interchangeable name tags
6. Tool for mounting changeable name tags

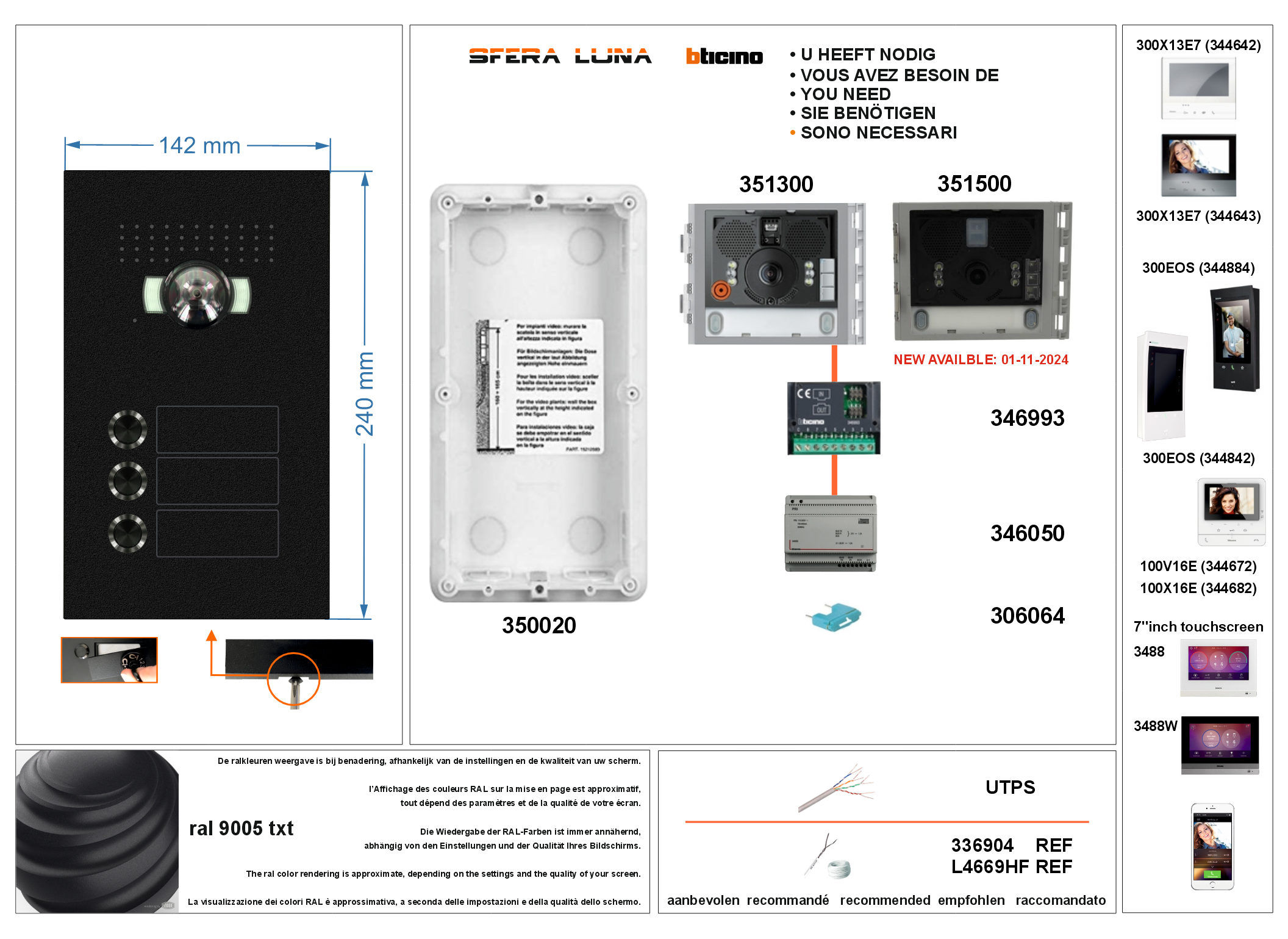

You need Bticino :

1. 350020 - Flush-mounted box 2 modules
2. 351500 - Audio/video module with wide-angle lens
3. 346993 - Interface Sfera
4. 346050  - Power supply
5. 306064 - Conf. set
6. Compatible with all bTicino Indoor units : Classe 100X16E (344682) or Classe 300EOS (344842) or MyHOME_UP 7" Hometouch 3488 (W)
7. Preferably use twisted pair cable Bticino REF 336904 or UTPS for the connection!

    These Bticino components are available :

via the wholesaler
via your installer/electrician  https://www.bticino.be/nl/professionals/bt-certified-expert
via stores https://www.bticino.be/nl/stores

  Create your personal entry front panel:

Combine your combination(s) into an original concept!

Real time display. The rendering will always be optimized by our typographer / graphic artist.

The order form is already preset and indicated in blue like the photo shown in our webshop.

  Aluminium THE GREEN METAL:

Aluminum can be recycled almost infinitely without loosing its unique properties. In remelting it is not only reclaimed metal, but by definition, 95% of energy is saved. The ore is very easy to exploit: it is just excavated to the surface. After just fifteen years nature has recovered.

Sfera Luna (partner of the Legrand Group and Bticino), copyright model.
