SFERA LUNA PURE Name Video Intercom High-End Bticino (350020)

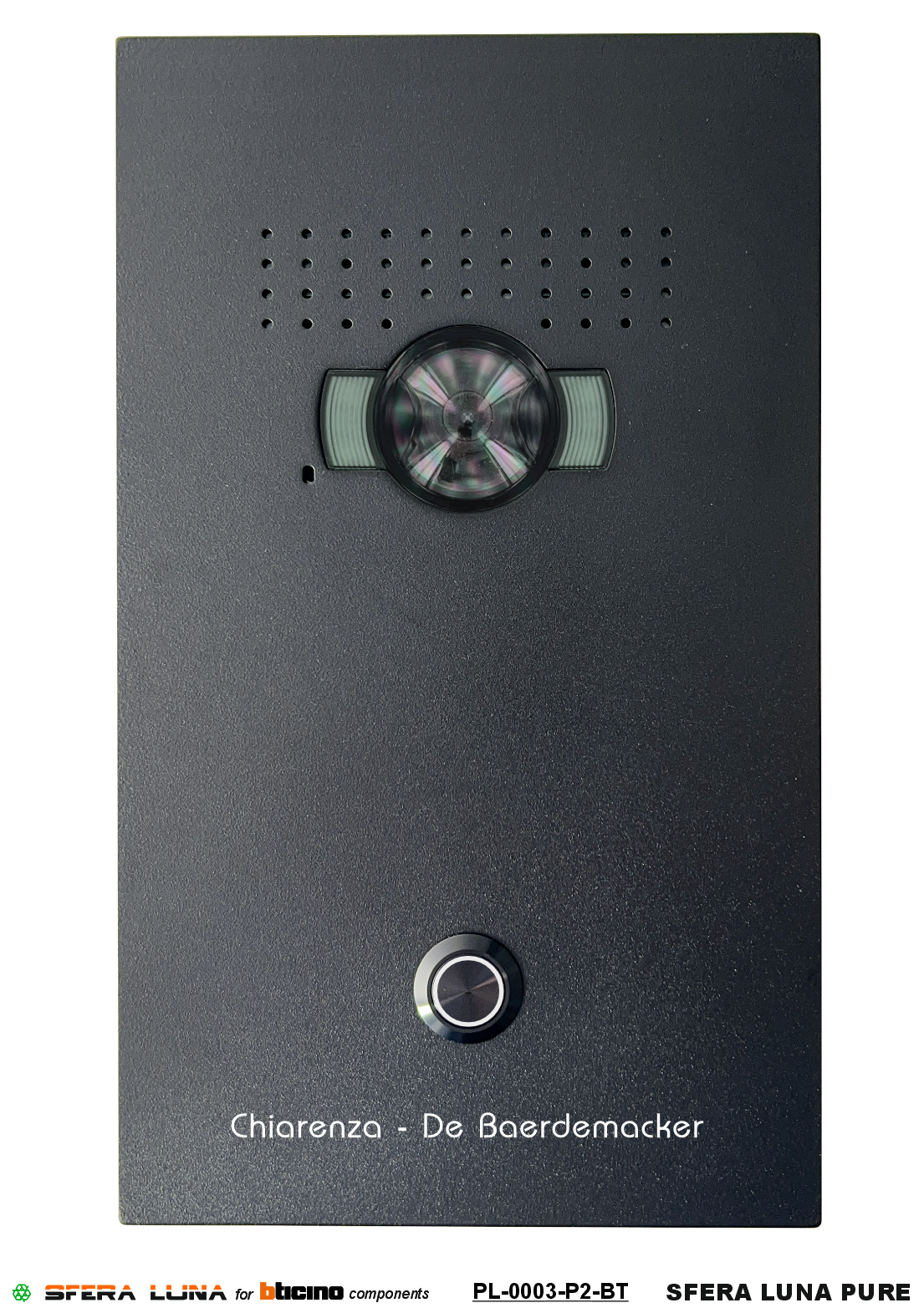

LUNA PURE video intercom front panel.

Where Access Becomes Design.

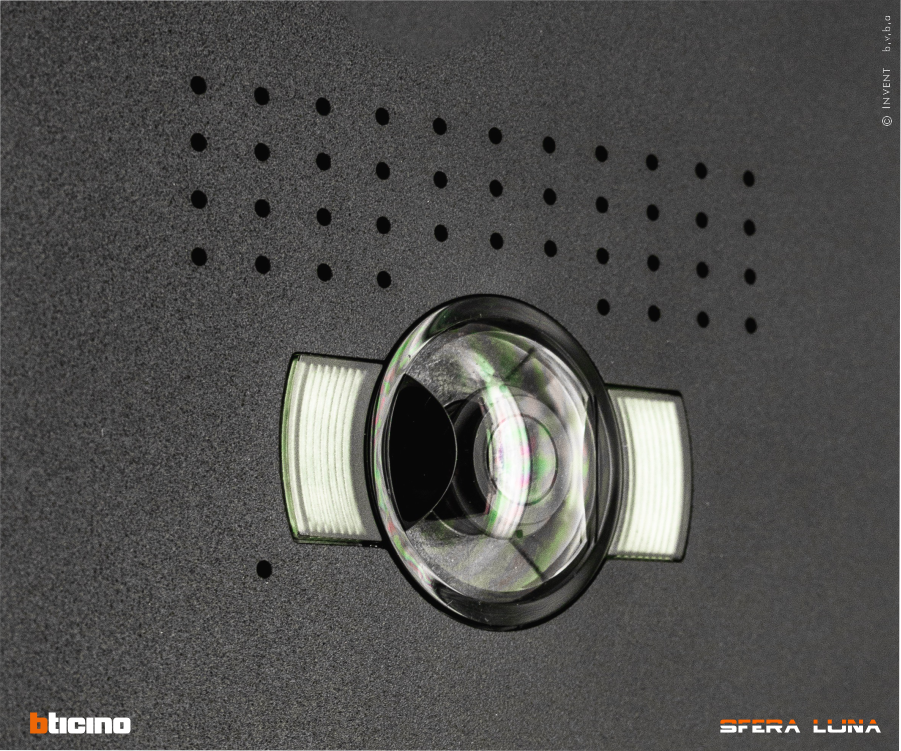

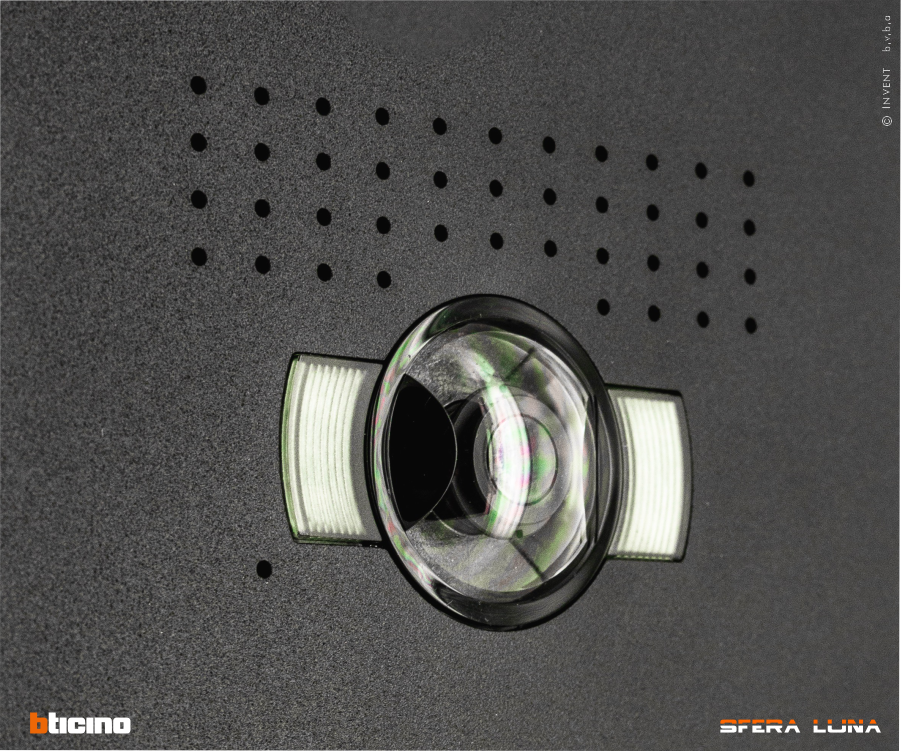

For Bticino outdoor camera unit 351500, 151° wide-angle lens.

Names permanently engraved and painted.

Standard mounting on the Bticino 350020 flush-mounted box.

Available in all RAL colours to match your home or project.

• Made from 10mm aluminium, high-end, solid finish.
• Central mounting system for front panel. (simple flush-mounted installation)
• Vandal-proof. (IP54 – IK08)
• Installation using a unique mounting system: on walls, gates, posts, letterboxes, etc.
• Installation options for letterboxes …
• Easy installation in confined spaces.
• Names engraved and coated with UV-resistant paint
• Powder-coated aluminium housing, with a seaside finish.
• Available with a black or stainless steel doorbell button (standard) or with an LED-ILLUMINATED doorbell button (optional)
• The LED-illuminated bell button can be connected directly via the BUS using the supplied Bticino connector and cable.

Sfera Luna, a partner of the Legrand Group (copyrighted model)

All RAL colours available

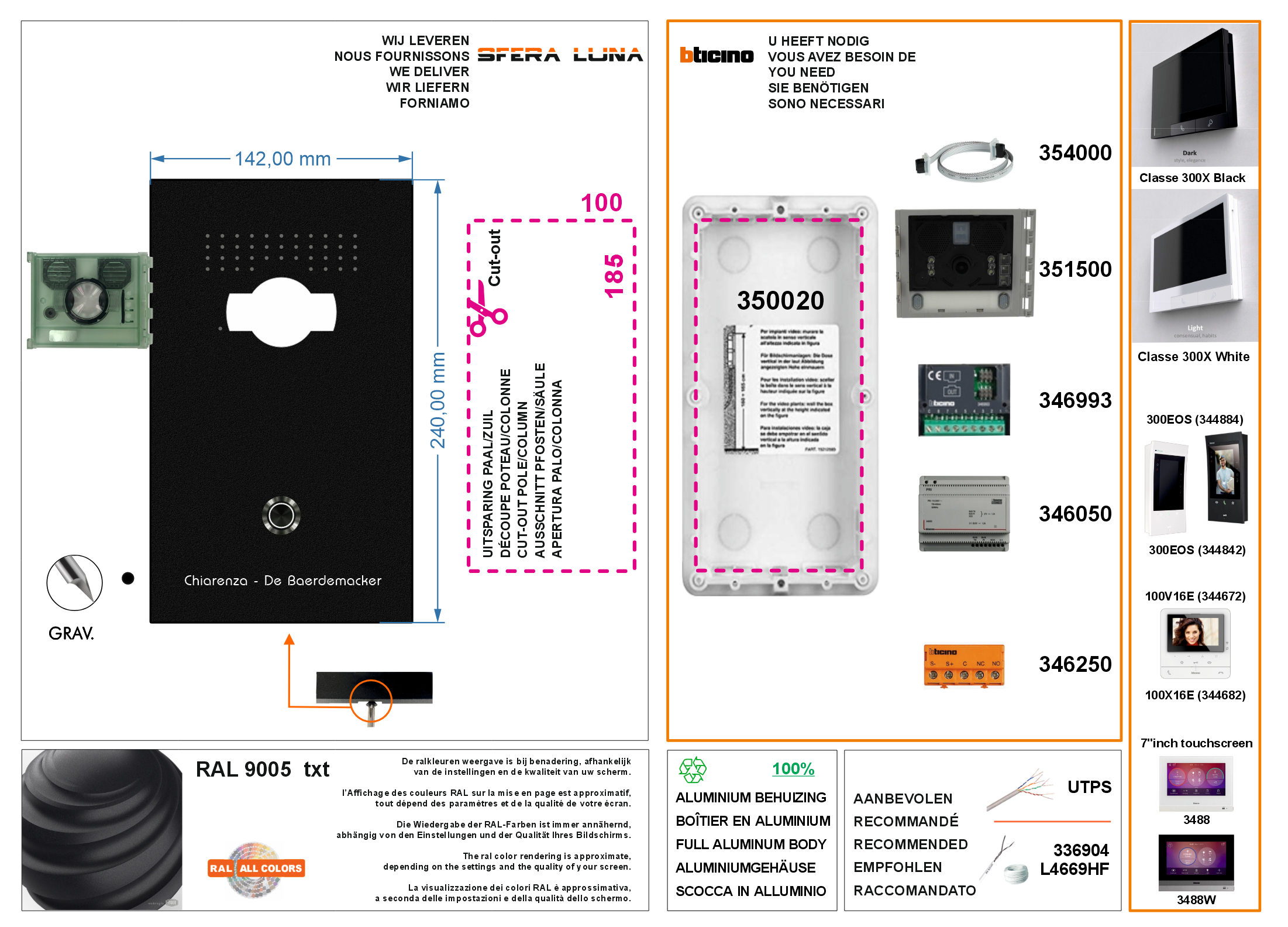

Dimensions: width 142 mm x height 240 mm

We supply:

1. Front panel in RAL colour (IP54 – IK08)
2. Base bracket for mounting on flush-mounted box 350020
3. 351305pkm – plexiglass for module 351500
4. Screws for mounting on flush-mounted box
5. Call button in stainless steel, black or LED (IP67 – IK08)

You will need:

1. 350020 – flush-mounted box (2 modules)
2. 351500 – Audio/video module with wide-angle lens
3. 346993 – Sfera interface
4. 346050 - Power supply
5. Compatible with any Btcino indoor unit of your choice.

 Create your own personalised video intercom using our order form editor.

• Combine your colour scheme(s) to create an original design!
• Real-time preview. The preview will be continuously optimised by our typographer/graphic designer.
• The order form is pre-set – highlighted in blue – to match the model shown in the photo on our webshop.

  Aluminium, the Green Metal:

Aluminium can be recycled virtually indefinitely without the metal losing its unique properties. When remelted, not only is metal recovered, but by definition 95 per cent of the energy is saved. The ore is very easy to extract: it is simply dug up from the surface. After barely fifteen years, nature has recovered.

Designed & (hand) made in Belgium

Sfera Luna, a partner of the Legrand Group (copyright model)
