Video Intercom High-End Bticino LUNA PURE

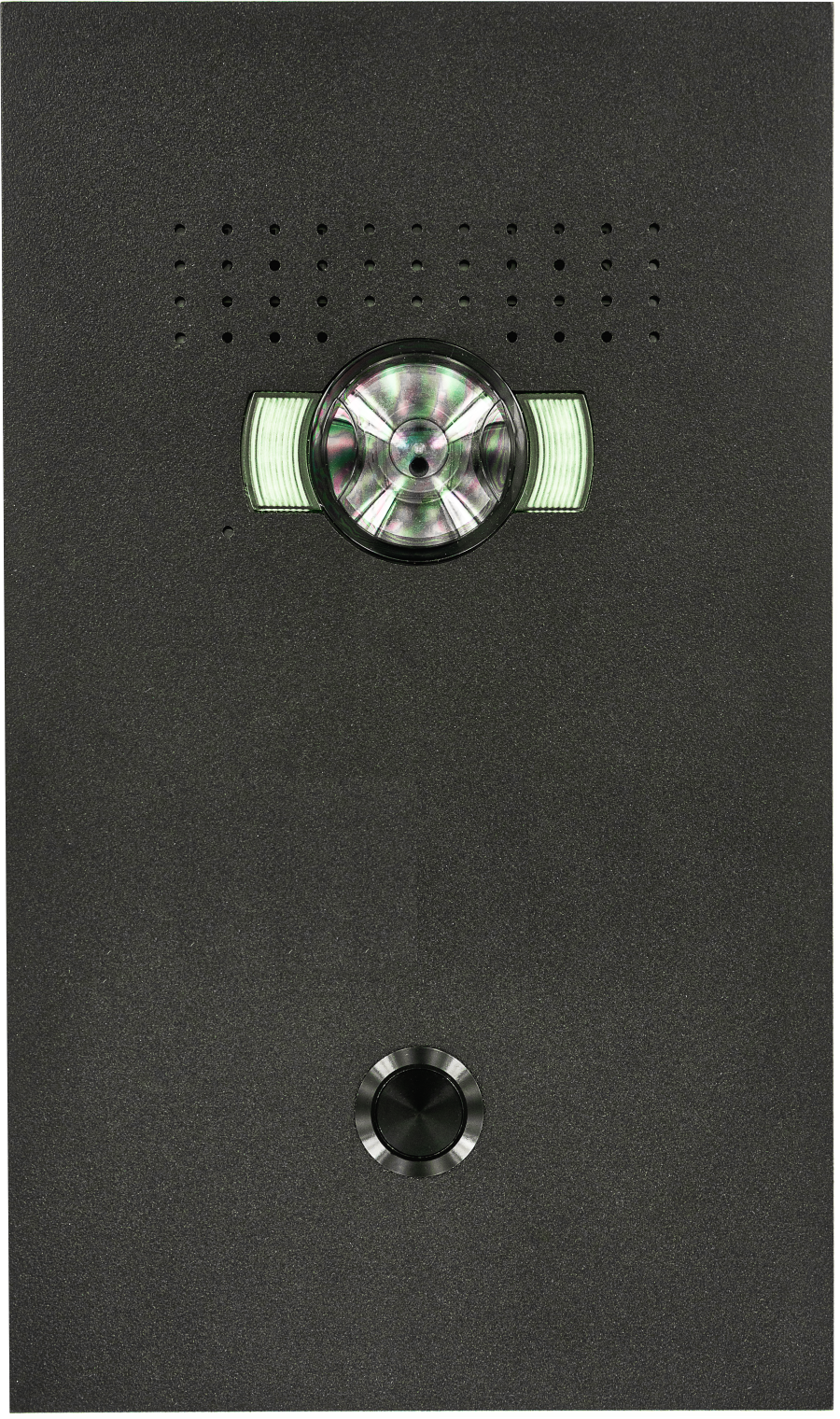

SFERA LUNA PURE – Video intercom front panel in its sleekest form, 100% PURE

Stylish and durable design at the entrance to your home, flat, gate or building.

Features

• Compatible with Bticino outdoor 2-wire audio-video module 351300 Wide-angle lens with viewing angle: horizontal 152° – vertical 96°.
• Sustainable design front Standard colour: black RAL 9005 fine texture Available in all RAL colours, tailored to your home or project Made from solid aluminium (10 mm) – high quality and fully recyclable Long service life thanks to corrosion-resistant finish
• Custom engraving Logo, name or text engraved and coloured Precision engraving with respect for the material and the environment No stickers or polluting prints – sustainable and aesthetic personalisation
• Call button Standard in black or stainless steel Optional with energy-efficient LED lighting Connection via BUS
• Mounting & installation Central mounting system – simple, blind mounting Vandal-proof design Suitable for walls, gates, posts and letterboxes Easy installation, even in confined spaces Model for flush mounting on standard box Bticino 350020 or as surface-mounted version Unique flush-mounting system for gates and posts

An environmentally conscious choice

 The front panel of the SFERA LUNA PURE is made of high-quality aluminium — a strong, elegant and fully recyclable material. By choosing aluminium, you are choosing a sustainable, low-maintenance and environmentally friendly solution that will last a lifetime.  The engraving is done without chemical coatings or polluting inks, contributing to cleaner production and a lower ecological footprint.

Advantages

• Sustainable and recyclable materials
• Luxurious and timeless appearance
• Complete personalisation with respect for the environment
• Seamless integration with Bticino systems
• Resistant to vandalism and weather conditions

Partner Legrand Group & Bticino (copyright model Luna)

SFERA LUNA BROCHURES ↗

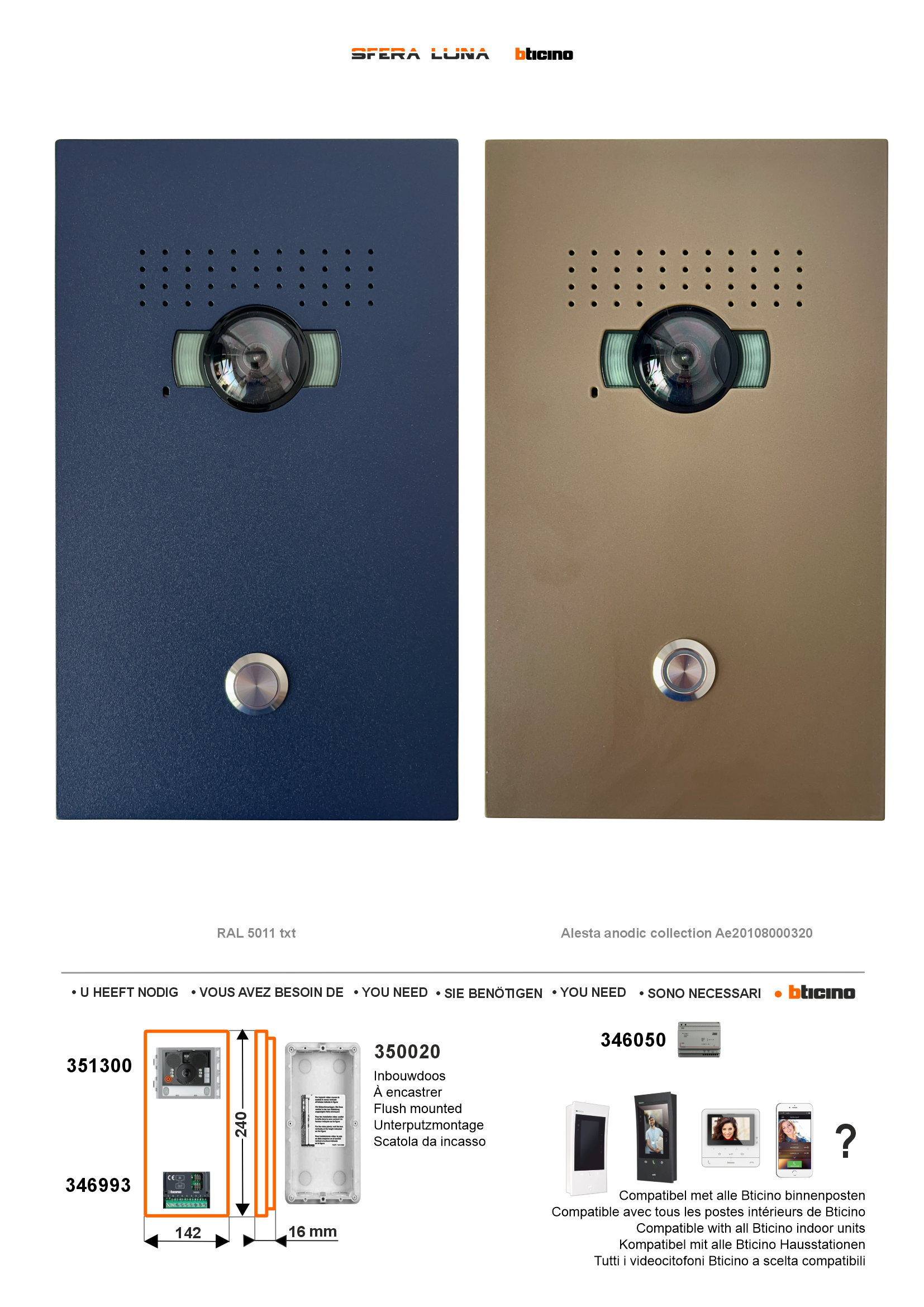

All RAL colours available

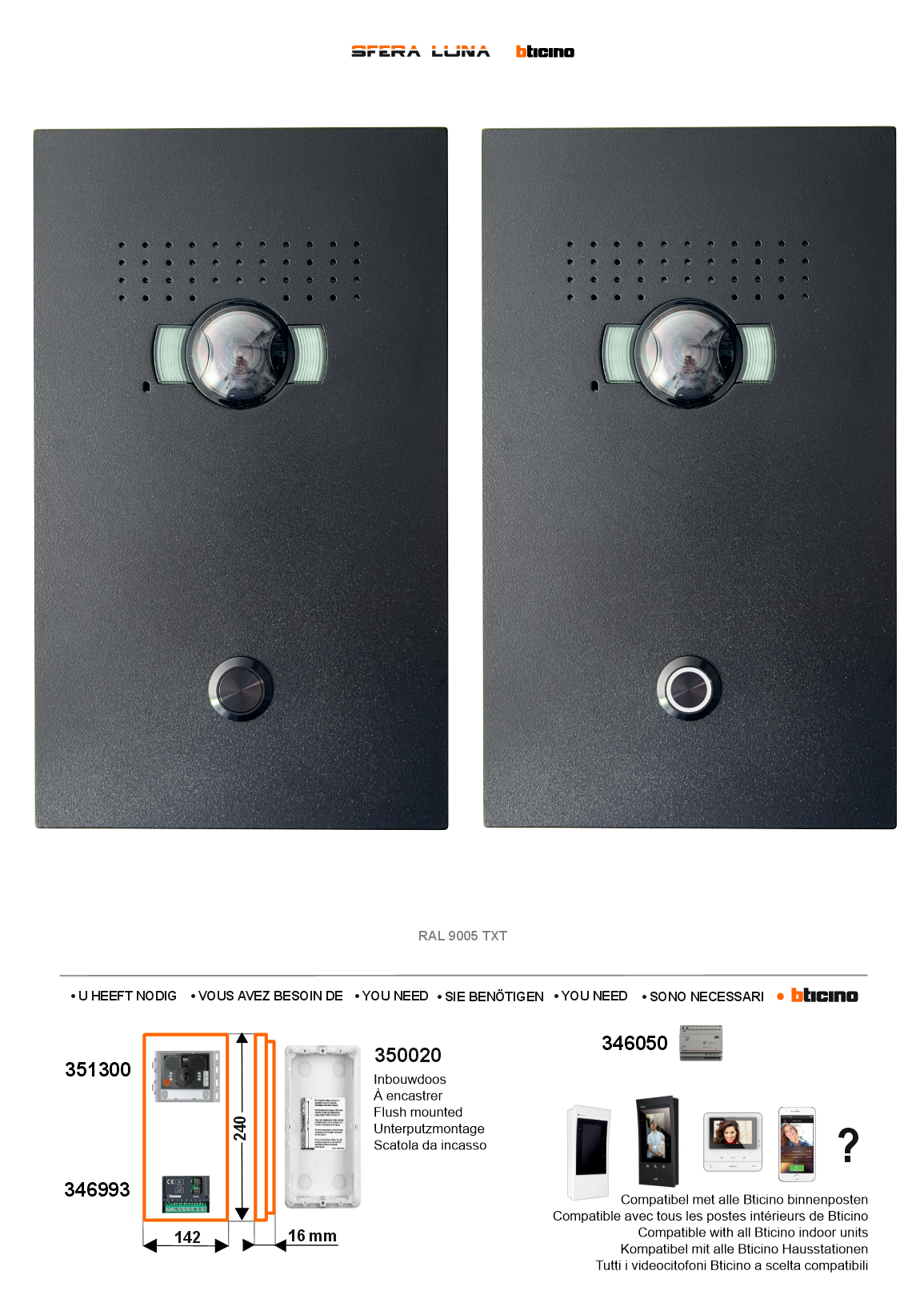

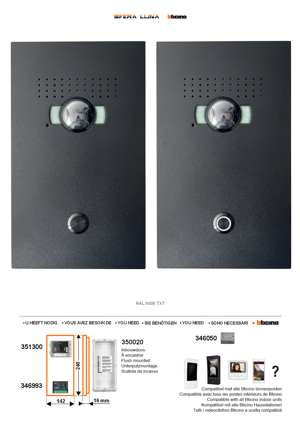

Dimensions: width 142 mm x height 240 mm

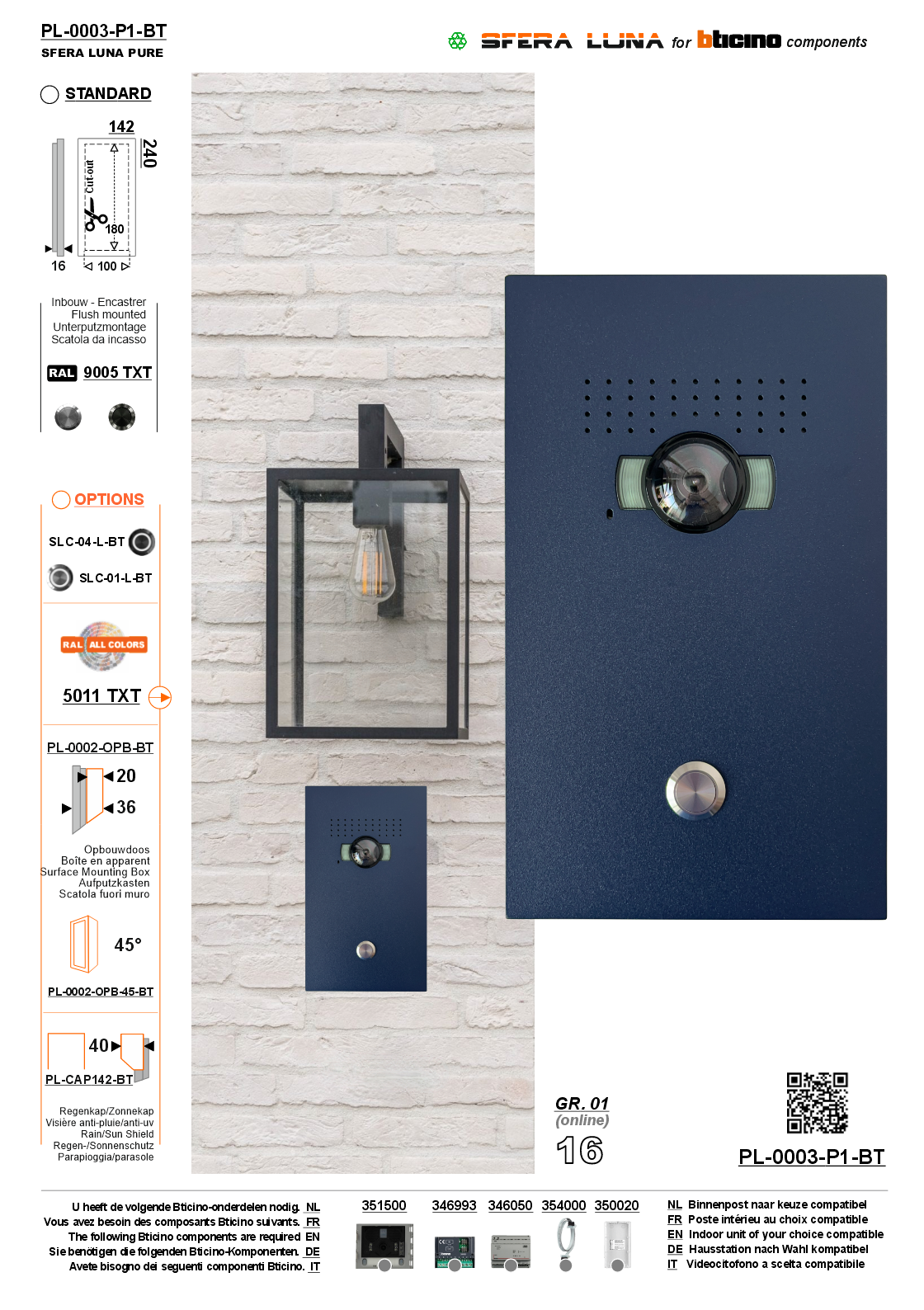

We supply:

1. Front panel in RAL colour.
2. Base bracket + screws for mounting on flush-mounted box 350020 ↗.
3. Or with surface-mounted box: PL-0002-OPB-BT ↗ in RAL colour.
4. Call button/call switch in stainless steel, black or LED.
5. Logo, name or text engraved and lacquered in colour of your choice.

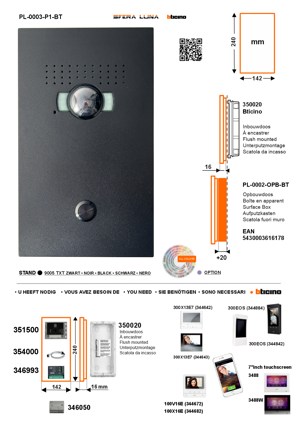

You will need Bticino / Legrand:

1. 350020 – Flush-mounted box 2 modules ↗
2. 351500 – Audio/video module with wide-angle lens ↗
3. 346993 – Sfera interface (up to 8 call buttons possible) ↗
4. 346050 – Power supply(ies) ↗
5. Compatible with all Bticino indoor stations.
6. Preferably use twisted cable Bticino REF 336904 or UTP-S for the connection!
