Video Parlofonie High-End Sfera Luna Bticino
Product Code : PL-0002-BT

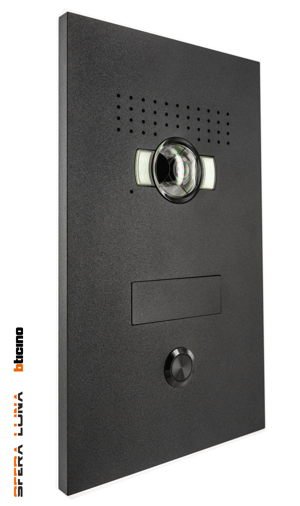

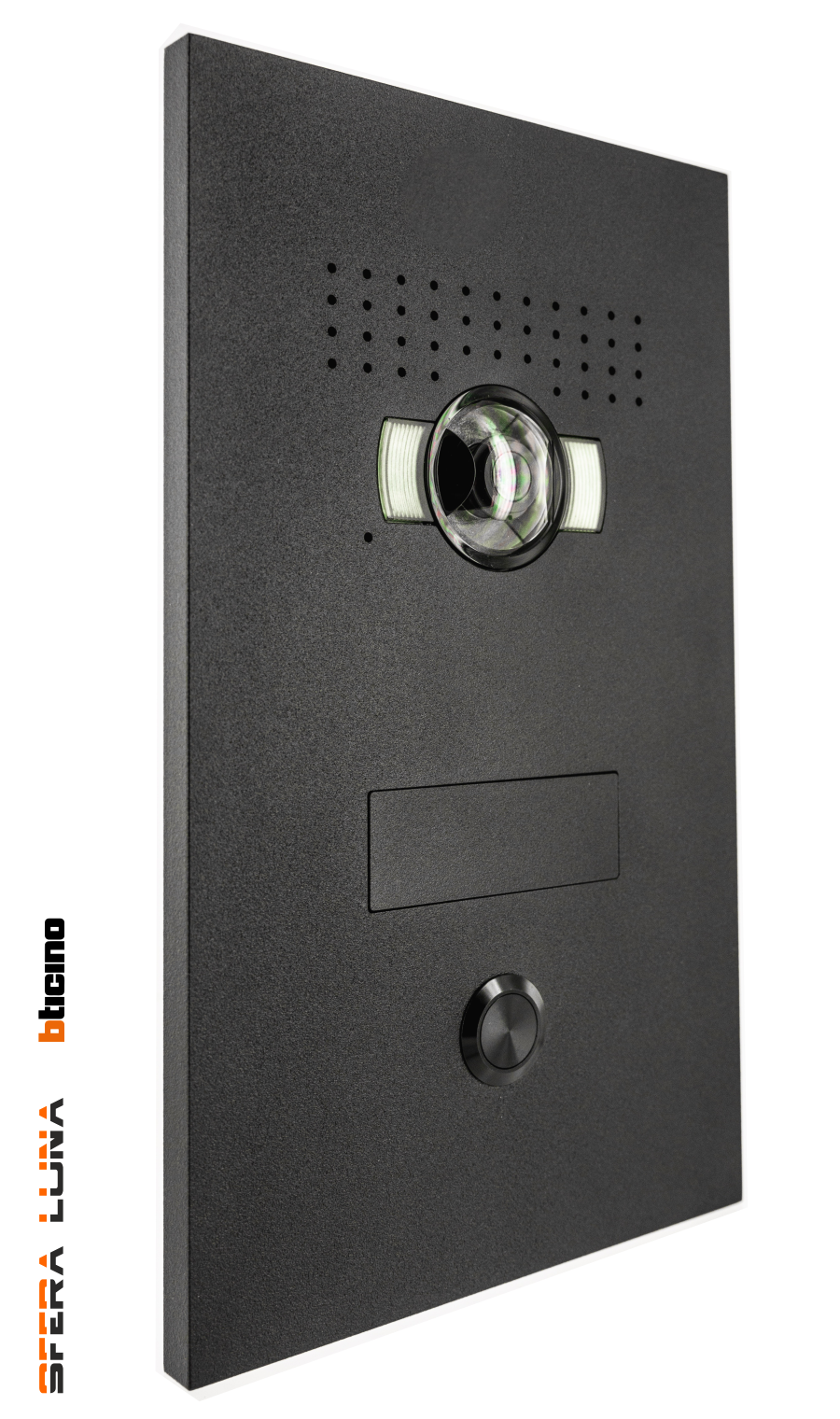

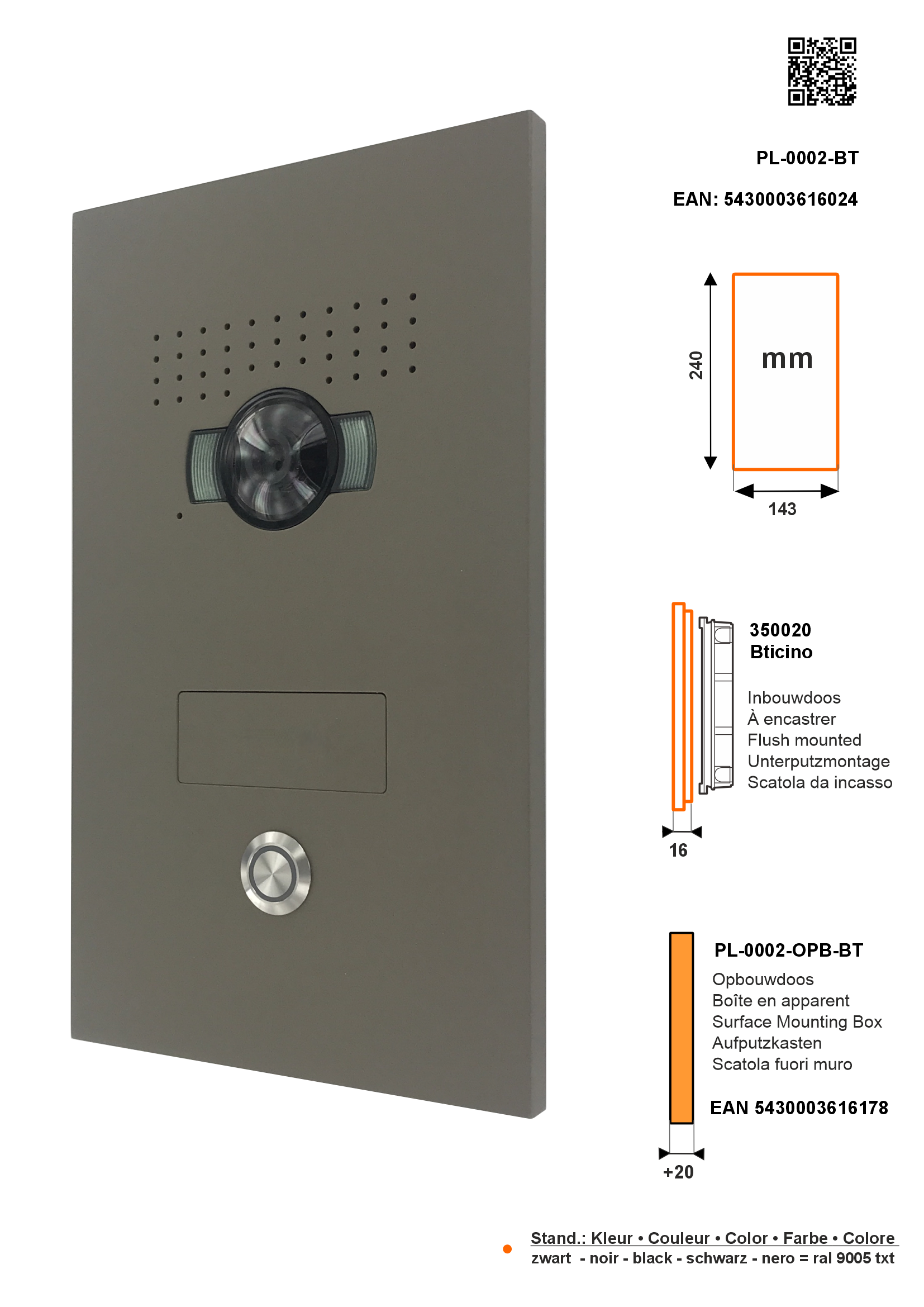

Videophone front entry panel SFERA LUNA with 1 replaceable name tag
For 2 wired Biticino wide angle audio/video AVT 351300 viewing angle: horizontal 135°- vertical 96°
Sleek high-end design at the entrace of your residence
Design front panel as standard in colour black ral 9005 fine texture.

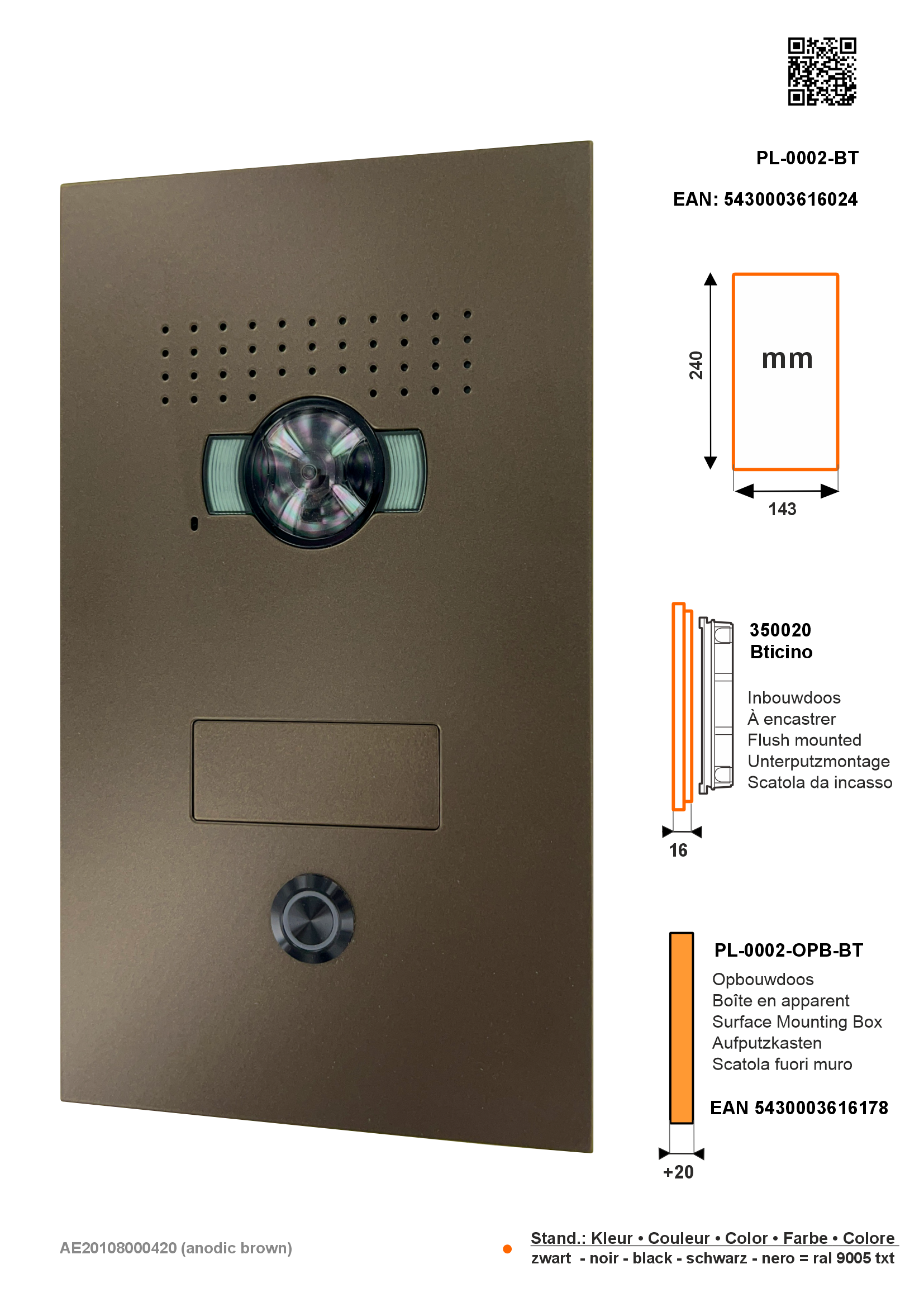

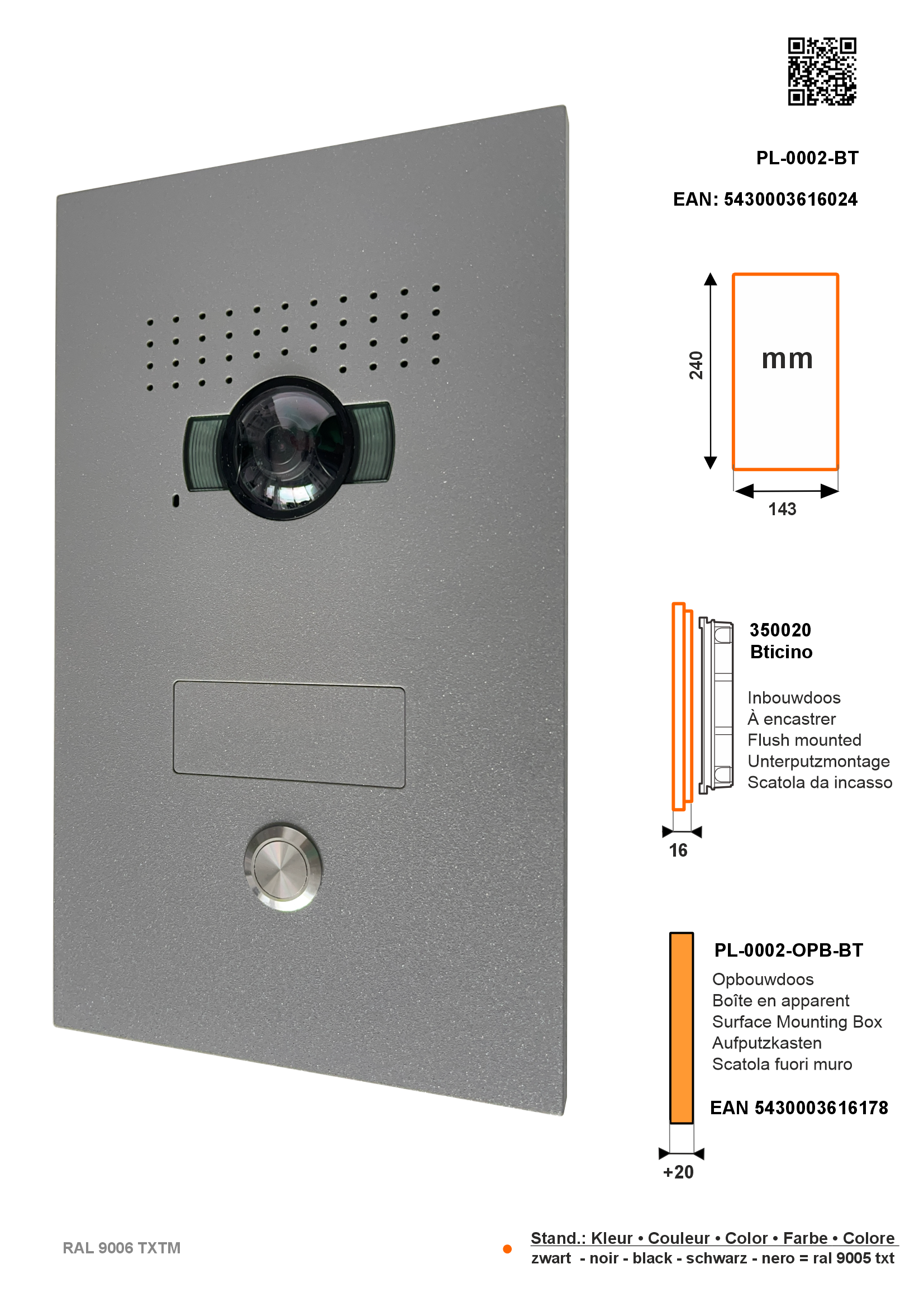

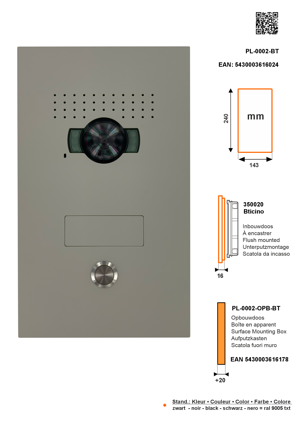

The front panels are available in all ral colors, matching the color of your residence or project.
- Produced in 10mm aluminium, High End, Solid finishing.
- Central mounting system front panel. (Simple blind mounting)
- Vandalism resistant.

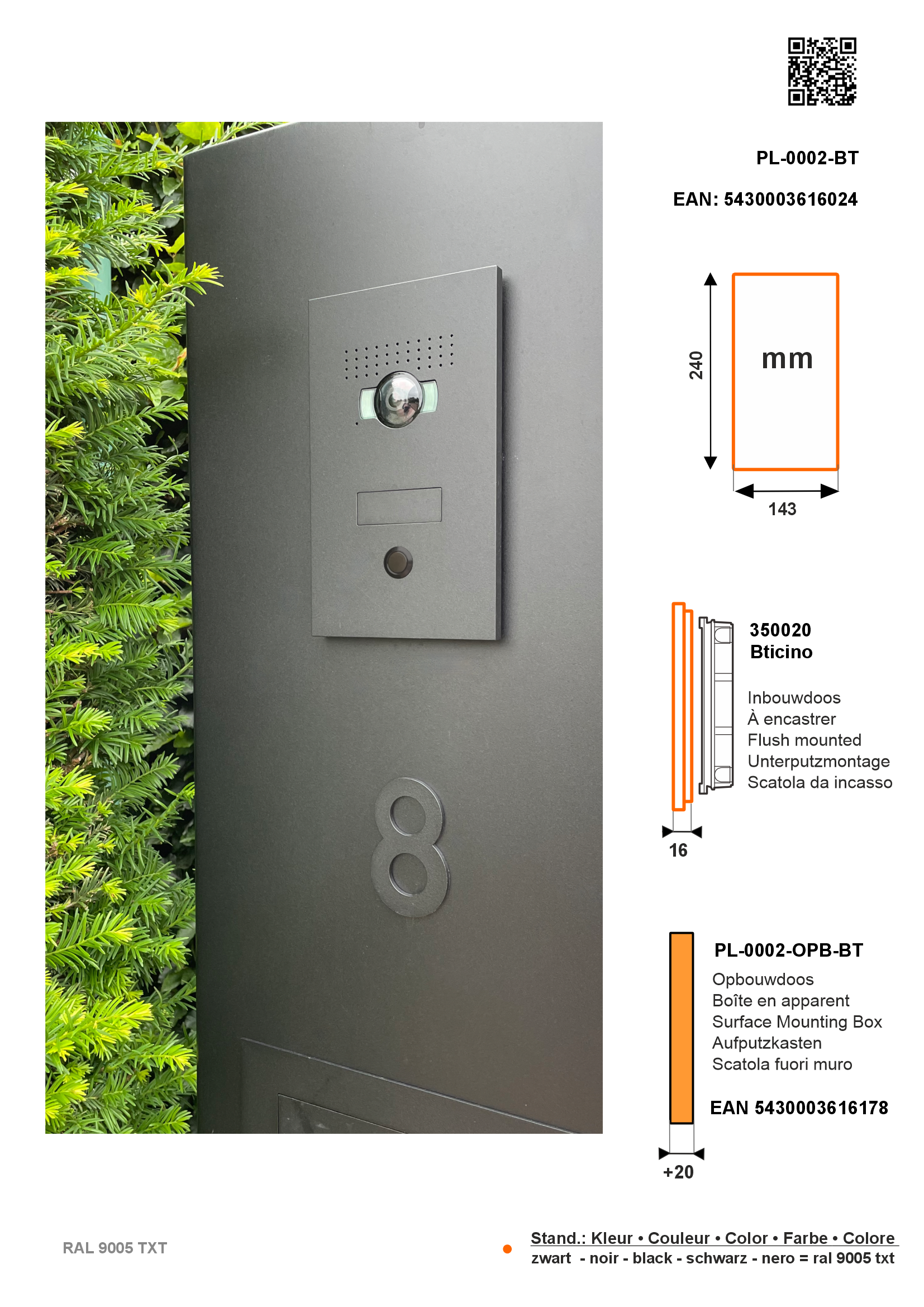

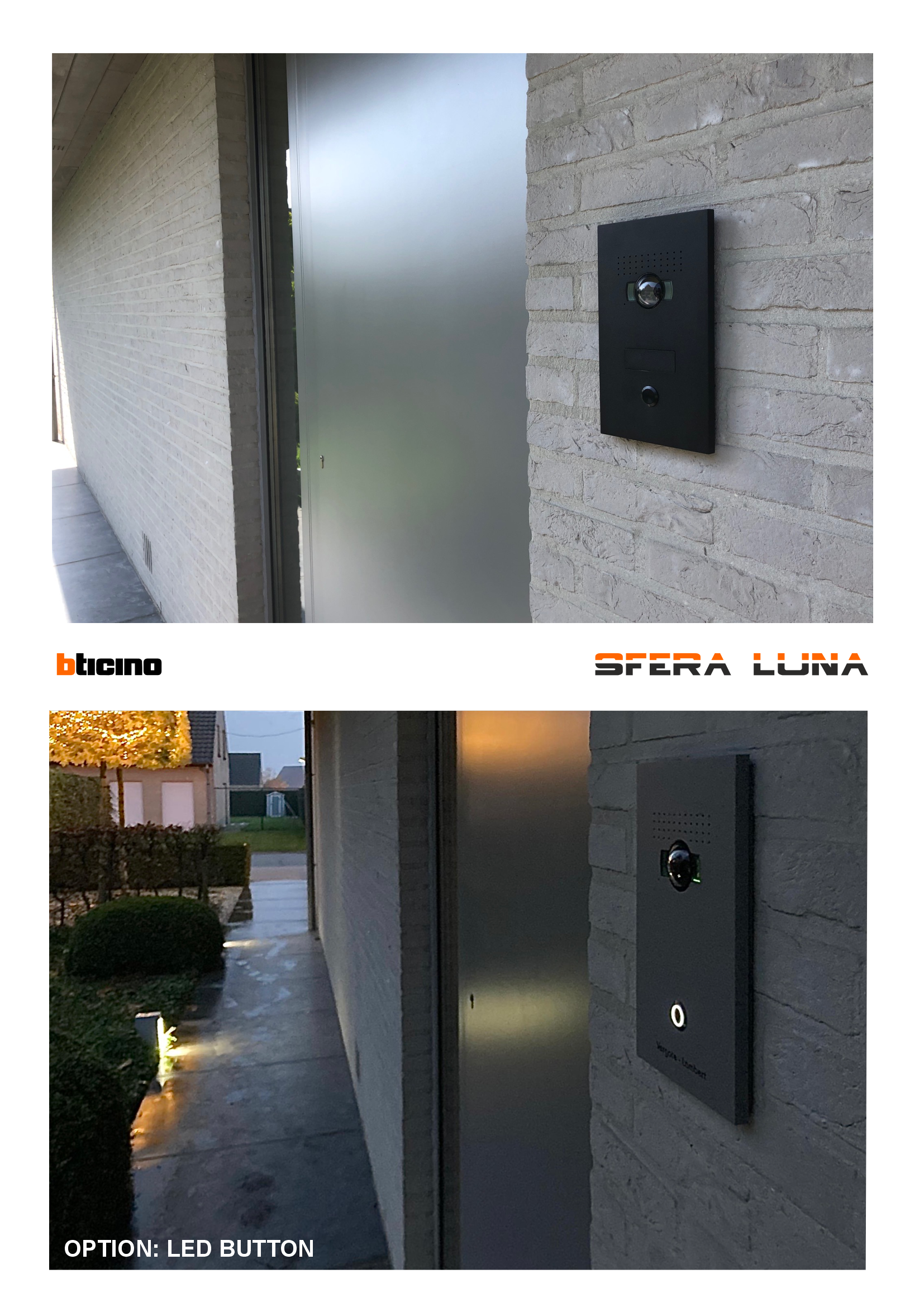

- Installation possibilities: on walls, gates, poles, mailboxes, etc ...

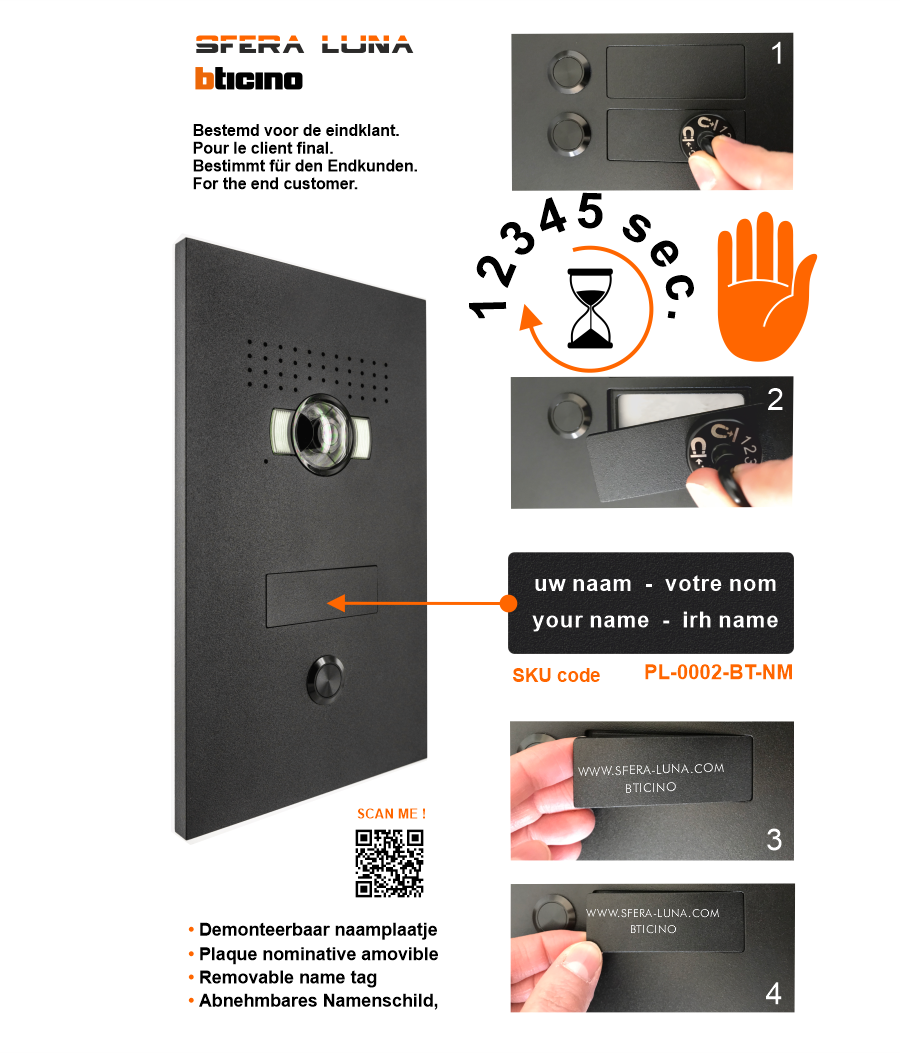

- The name tag can be easily changed with a unique, invisible mounting system.
- Removable name tag can be personalized or not, when ordering or later.
- Easy installation in narrow environment
- Flush-mounting on standard box BTICINO AVT 350020
- Also available with surface-mounted module.
- Positioning spirit level with oblong holes
Made in Italy, Sfera Luna partner of the Legrand Group (copyright model)
All Ral colors available

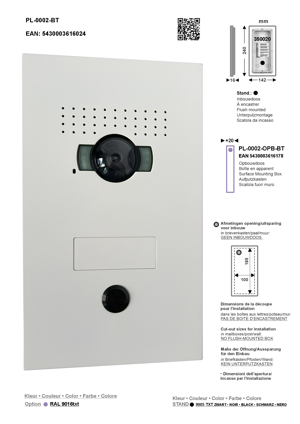

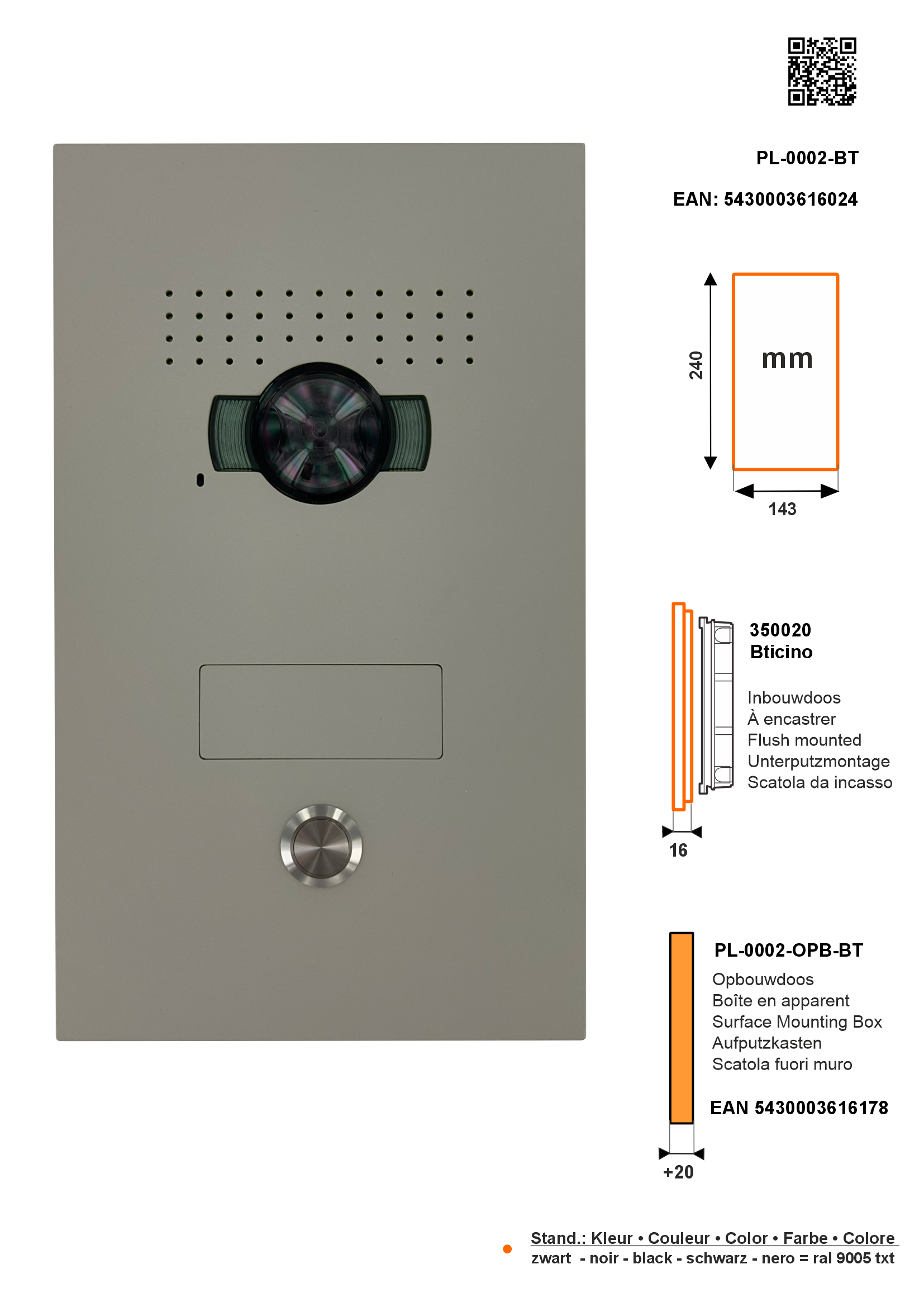

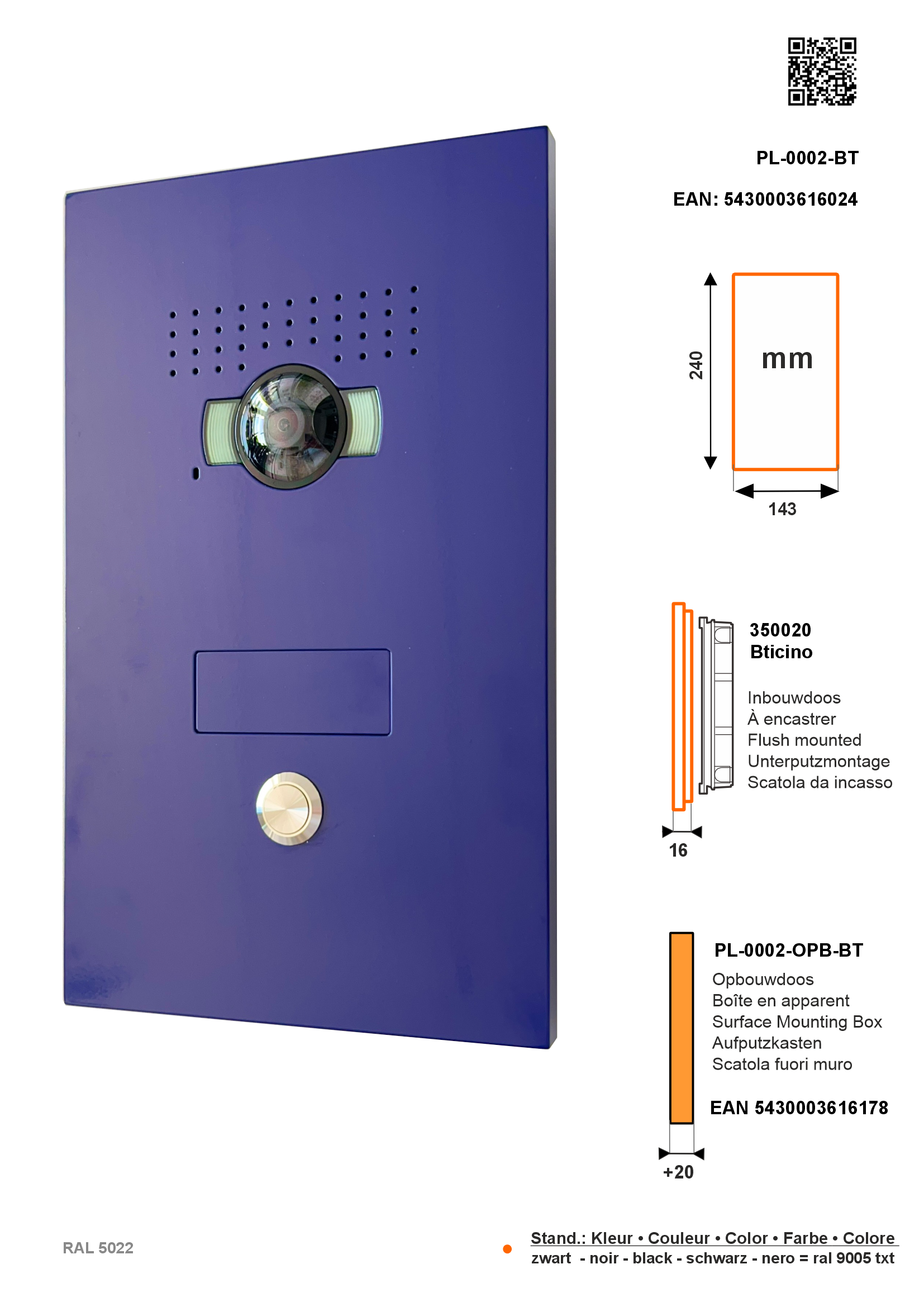

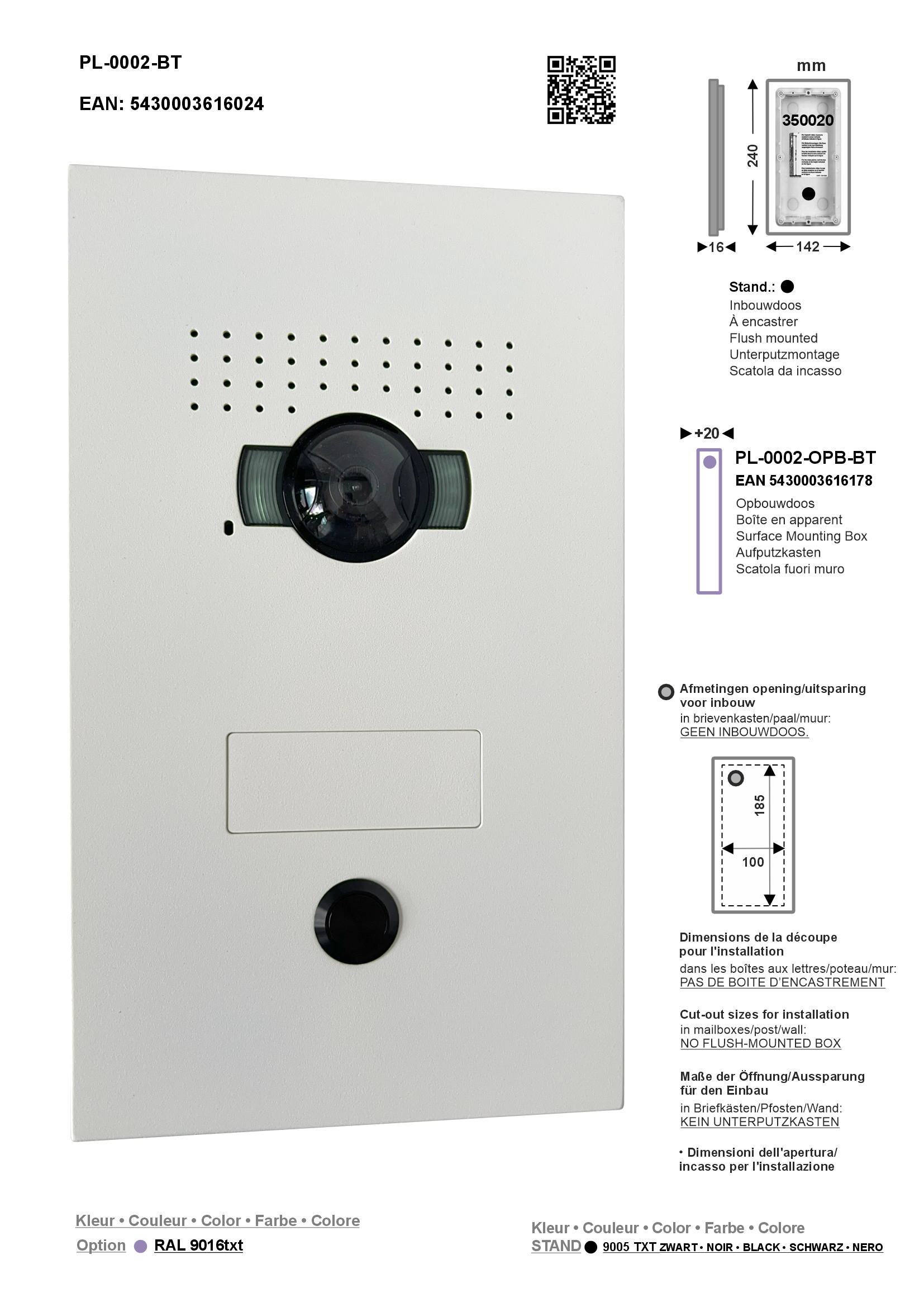

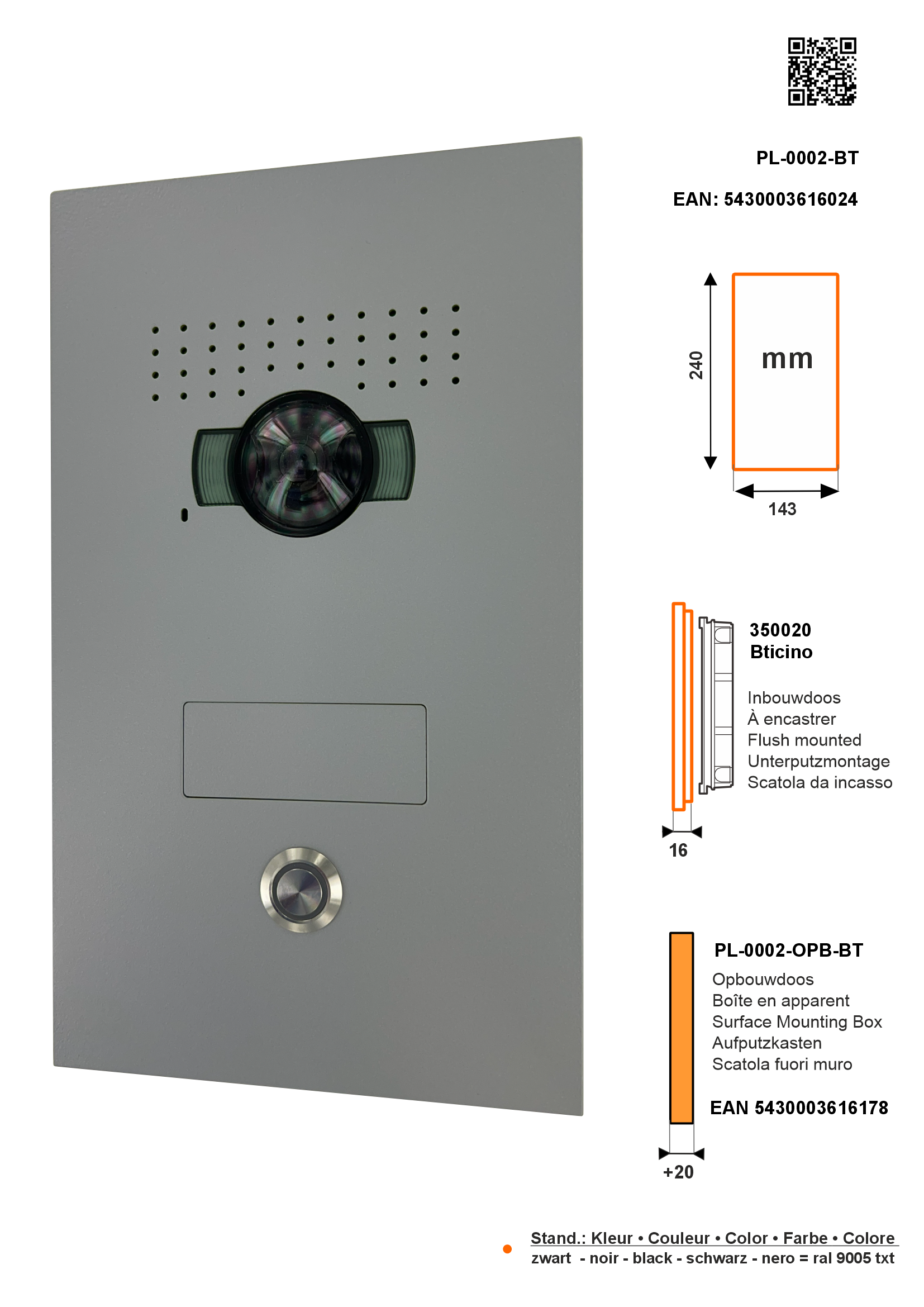

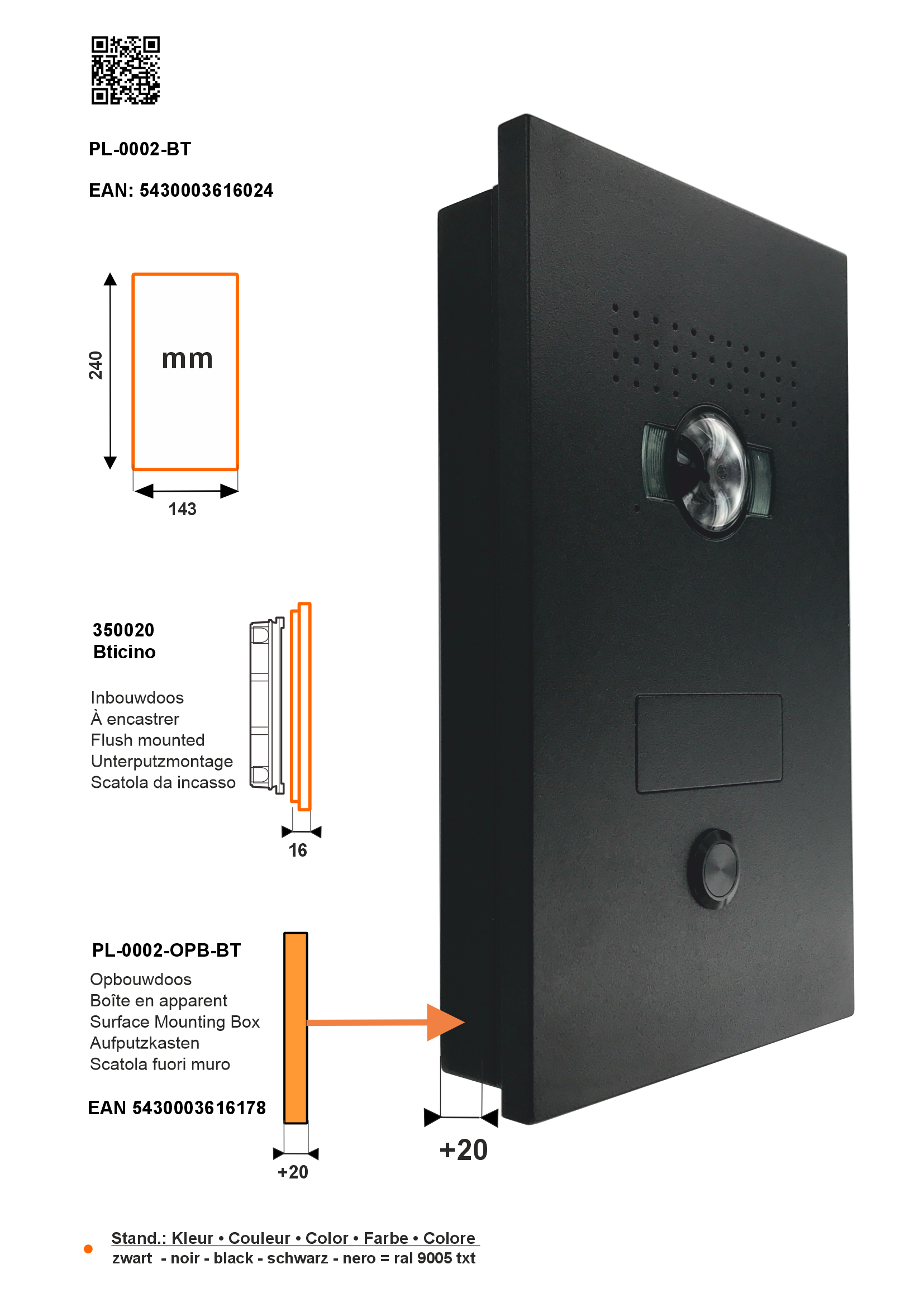

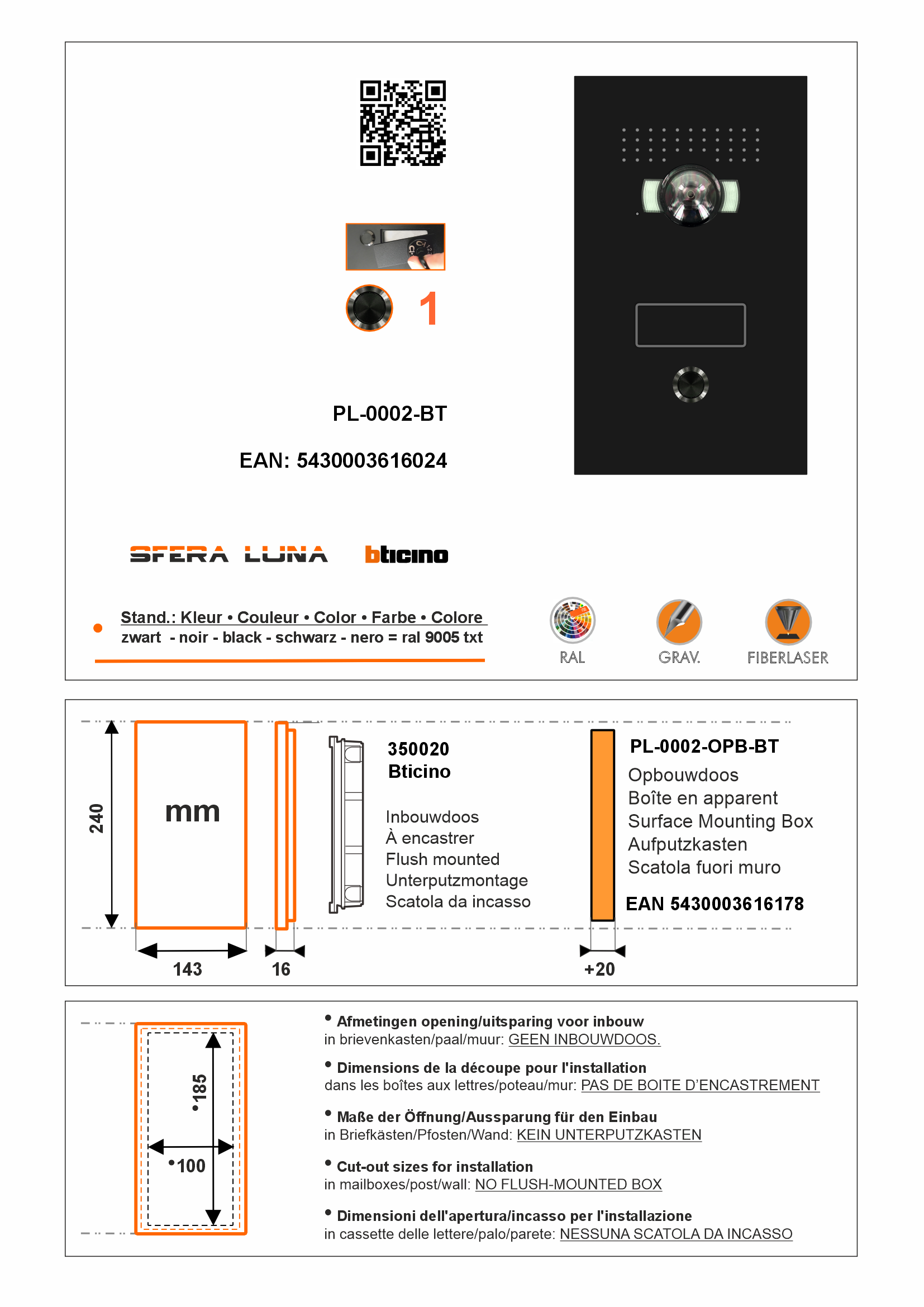

width 142mm x height 240mm
- for 350020 AVT - flush-mounting box 2 modules
- Front panel in ral color
- Basic bracket for mounting on flush-mounting box AVT 350020
- Screws for mounting on build-in box 350020
- 351305pkm - Plexiglas for modul AVT 351300
- 1 Push button stainlesssteel black
- 1 Interchangeable name tag

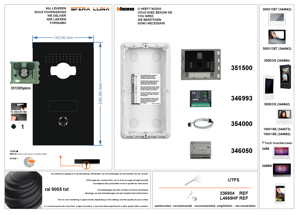

- 350020 AVT - flush-mounted box 2 modules
- 351300 AVT - Audio/video module with wide-angle lens
- 346993 Interface Sfera
- 346050 AVT - Power supply
- Compatible with all bTicino indoor units: AVT-Class 100X16E or Classe300EOS Alexa built-in wifi-3/4G or MyHOME_UP 7" Hometouch 3488 (W)
These Bticino components are available :
via the wholesaler
via your installer/electrician https://www.bticino.be/nl/professionals/bt-certified-expert
via stores https://www.bticino.be/nl/stores
Aluminium THE GREEN METAL:
Aluminum can be recycled almost infinitely without loosing its unique properties. In remelting it is not only reclaimed metal, but by definition, 95% of energy is saved. The ore is very easy to exploit: it is just excavated to the surface. After just fifteen years nature has recovered.
Made in Italy, copyright model.
