SFERA LUNA 10 → 16 Call Buttons ┃ Audio/Video door entry system Bticino (3500030+3500030)

Product Code : PL-0006-M10-16-BT



Hover your mouse over the selection buttons to view a sample image.

✎ Project name + Planned end date

Max amount of characters: onbeperkt
Free amount of characters: alle karakters
Price per additional character: € 0.00 EUR

✎ I am

installer
Wholesaler
Consumer
Architect
Consultancy/Engineering office
Legrand / Bticino

✎ Location of the BTicino installation

Outdoor
entrance hall
Inconnu

Front panel ┃ Dimensions

W 310mm x H 345mm (IK08 - IP54)

▣ Flush-mount prepared for module

BTicino 351500 Video/audio module, wide-angle lens 151° (diagonal)

Type

Flush mounting Bticino 350030+350030
Installation in letterbox cabinets
Surface mounting

○ Product Code ┃ Number of call buttons

PL-0006-16-BT = 16 p.
PL-0006-15-BT = 15 p.
PL-0006-14-BT = 14 p.
PL-0006-13-BT = 13 p. (01)
PL-0006-12-BT = 13 p. (02)
PL-0006-12-BT = 12 p. (01)
PL-0006-12-BT = 12 p. (02)
PL-0006-11-BT = 11 p.
PL-0006-10-BT = 10 p.

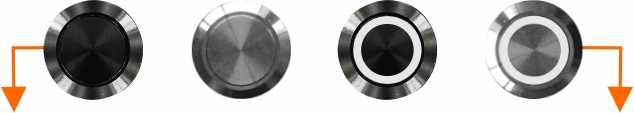

○ Button doorbell (IP67 - IK08)

Black stainless steel (editor website only black)
Stainless steel
Stainless steel, inner circle LED illuminated
Black stainless steel, inner circle LED illuminated

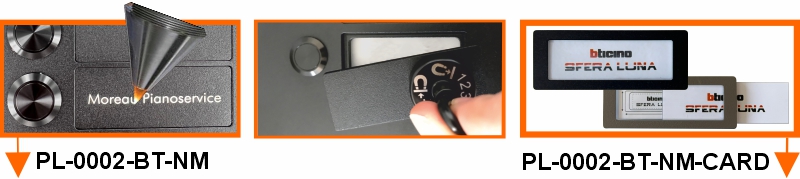

  • Invisible mounting system with easily interchangeable nameplates, choice of:
  • PL-0002-BT-NM = Nameplate(s) customizable at order or later (laser engraving)
  • PL-0002-BT-NM-CARD = Slide-in papaer card holder

Nameplate type ┃ Quantity = number of call buttons

PL-0002-BT-NM ┃ Blank nameplate(s) ┃ Same type as Luna kit
PL-0002-BT-NM-CARD ┃ Paper card holder

● Front panel colour (RAL) ┃ Powder-coated aluminium ┃ IP67 · IK08

RAL 9005 TXT
✎ RAL ?___ ✎ CODE ?_
RAL 1001 TXT
RAL 1015 TXT
RAL 1019 TXT
RAL 3005 TXT
RAL 5011 TXT
RAL 7006 TXT
RAL 6009 TXT
RAL 7016 TXT
RAL 7016 TXTm
RAL 7021 TXT
RAL 7021 TXTm
RAL 7022 TXT
RAL 7030 TXT
RAL 7032 TXT
RAL 7039 TXT
RAL 7039 TXTm
RAL 7044 TXT
RAL 7038 TXT
RAL 8014 TXTm
RAL 8019 TXTm
RAL 9001 TXT
RAL 9004 TXT
RAL 9005 TXTm
RAL 9006 TXTm
RAL 9007 TXTm (Titanium)
RAL 9008 TXTm
RAL 9010 TXT
RAL 9016 TXT
Corten
RAL Gold TXT= Messing (tiger)
Brons light (Tiger)
Anodized 68/90510
DB 703

✎ Remarks ┃ Free text

Max amount of characters: onbeperkt
Free amount of characters: alle karakters
Price per additional character: € 0.00 EUR
