Video entry panel High-End Bticino LUNA+ Sfera fingerprint reader Ekey & badge reader

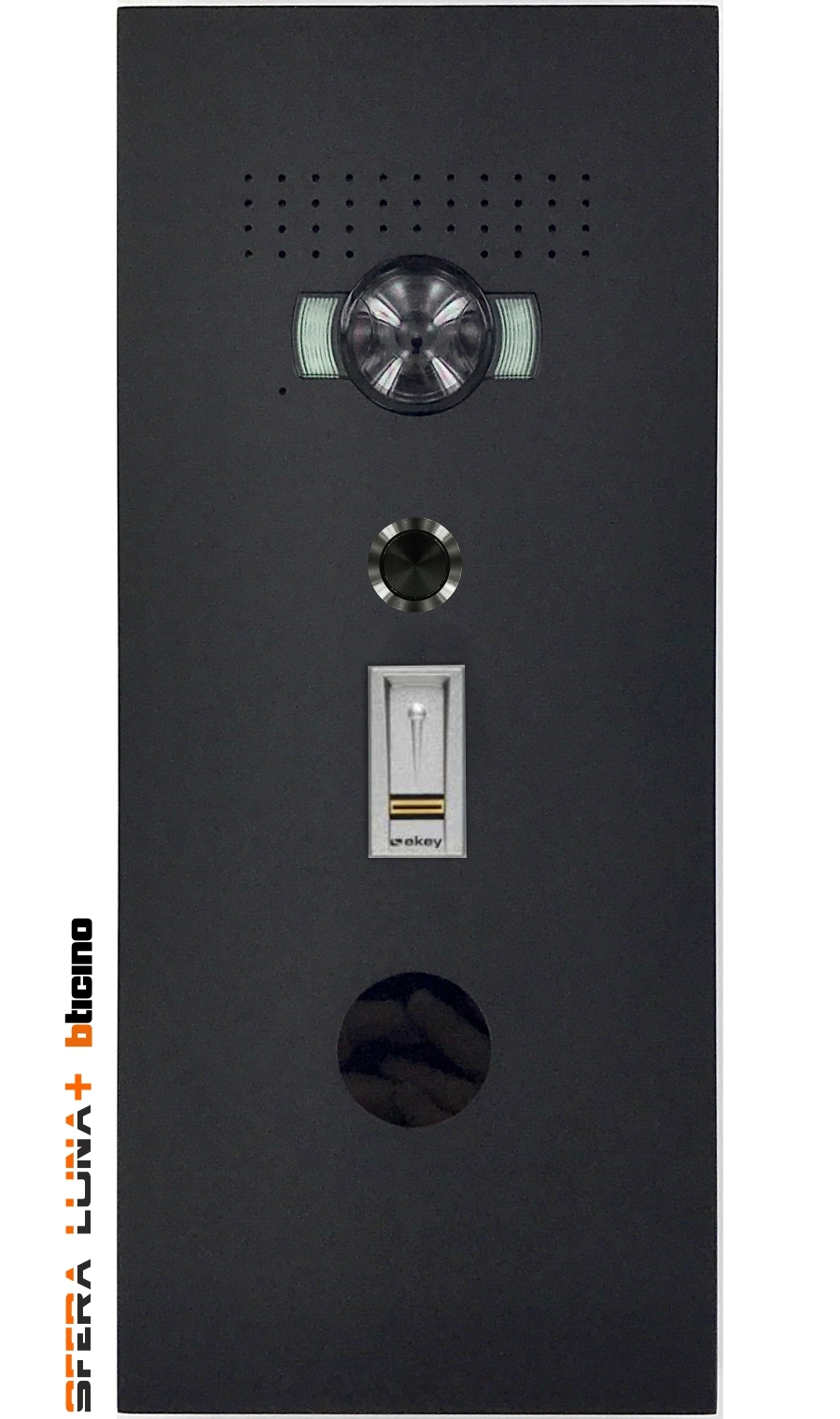

Video entry panel  SFERA LUNA with integrated fingerprint reader Ekey & Badgereader for Bticino outdoor unit 351300.

Standard installation on Bticino AVT 350030 flush-mounted box.

These front panels are available in all ral colours to match with the ral colour of your residence or project.

• Made in 10mm aluminium, High End, solid finish.
• Central mounting system front panel. (easy blind mounting)
• Vandalism resistant.
• Installation possibilities: on walls, gates, columns, mailboxes, etc ...
• Easy installation in narrow surroundings.
• Model flush mounting on standard box Bticino 350030
• Unique recessed system for recessed gates, poles, etc. .....
• Also available with surface-mounted module.

Sfera Luna, partner of the Legrand Group (copyright model)

All Ral colours available

Dimensions: width 143mm x height 335mm

• 350030 AVT - flush mouting box 3 modules Bticino

We supply:

1. Front panel in ral colour
2. Support base for mounting on AVT junction box 350030
3. Screws for mounting on flush-mounting box
4. 351305pkm - plexi for module 351300 AVT
5. 1 call pushbutton
6. Installation module for Sfera fingerprint reader Ekey (BTE101310)
7. Plexi front for badge reader
8. 354000 videoparlofonie connection cable for functional modules


You need:

• 350030 AVT - flush-mounted box 3 modules
• 351300 AVT - Audio/video module with wide-angle lens
• 346993 interface sfera
• BTE 101310 - Sfera fingerprint reader Ekey
• 353200 Badge reader + badge keys 348200 1/2/3/4/5/6
• 346050 AVT - Power supply
• Compatible with all Bticino indoor units: AVT-Classe 100X16E or AVT Class 300 X13E7 wifi-3/4G or MyHOME_UP 7" Hometouch 3488 (W) or https://www.legrand.fr/pro/catalogue/36791-postes-interieurs-audio-video

    These Bticino components are available :

via the wholesaler
via your installer/electrician  https://www.bticino.be/nl/professionals/bt-certified-expert
via stores https://www.bticino.be/nl/stores

  Aluminium THE GREEN METAL:

Aluminum can be recycled almost infinitely without loosing its unique properties. In remelting it is not only reclaimed metal, but by definition, 95% of energy is saved. The ore is very easy to exploit: it is just excavated to the surface. After just fifteen years nature has recovered.

Our exclusive products are produced in certified high quality materials. A combination of state of the art machinery and handcrafted finishes.

Designed & (hand) made in Belgium

Sfera Luna (partner of the Legrand Group), copyright model.
